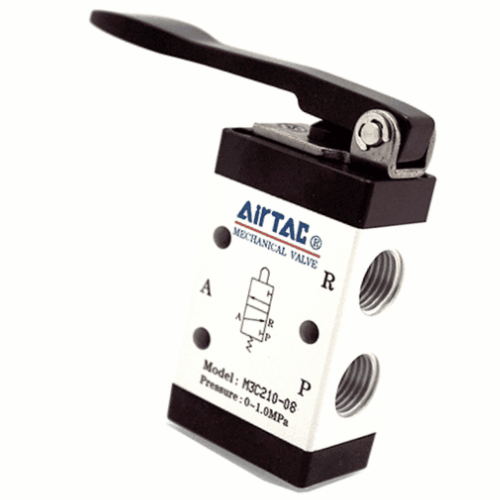

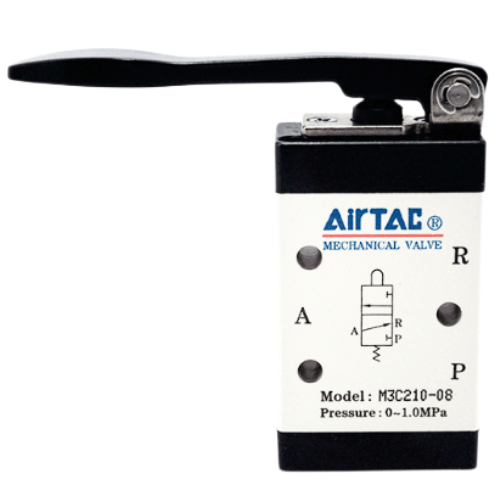

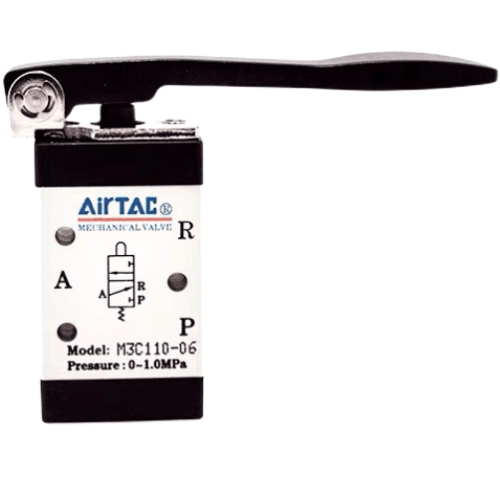

Airtac M3C Long Handle Type Mechanical Valve M3C21006G
2、M3B/M3R/M3L series utilize external mechanisms to provide actuation force, suitable for position sensing or limit switch applications;
3、M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with multiple actuator configurations for diverse operating conditions;
4、Spool-type design ensures consistent control force independent of working pressure (zero back-pressure effect), enhanced by internal seal rings for optimal sealing performance and smooth directional switching;
5、Maintenance-free lubrication system eliminates routine oiling requirements;
6、Multi-position installation capability enables versatile integration;
7、M3C/M3D/M3Y/M3R/M3I series employ metallic actuator heads for extended longevity, reliability, and operational stability.
Category: Mechanical Valves | Brand: AirTAC | Series: M3C Long Lever Mechanical Valve
AirTAC M3C21006G Long Lever Mechanical Valve Specifications
- Model: M3C21006G
- Type: 3/2-way mechanical valve (lever-operated)
- Port size: G1/8 (BSPP thread)
- Operating pressure: 0.05–1.0 MPa
- Max flow rate: 750 L/min (ANR)
- Actuation force: ≤20N lever operation
- Body material: Aluminum alloy (anodized finish)
- Seal material: HNBR rubber (oil-resistant)
- Temperature range: -10℃ to 80℃
- Weight: 320g ±5g
- Dimensions: 98mm(L) × 42mm(W) × 36mm(H)
- Port thread depth: 9mm
- Lever length: 65mm (ergonomic grip)
- Mounting options: Direct piping or sub-base mounting
Heavy-duty manual override valve featuring extended lever arm for precise tactile control in emergency shutdowns or maintenance operations. The chrome-plated steel lever provides 250,000+ cycle durability with dust-resistant bushings. Designed for systems requiring manual intervention without electrical power.
- Production line emergency stop systems
- Hydraulic press safety override controls
- Plastic injection molding machine maintenance
- Pneumatic conveyor manual bypass
- Textile machinery manual mode operation
Installation note:
Lubricate lever pivot monthly with ISO VG32 hydraulic oil.
Ensure lever has 120° unobstructed swing radius.
Use PTFE tape on port threads with 1.5-2.5 turns for optimal sealing.
| Property | Property Value |
|---|---|
| sku | M3C21006G |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
