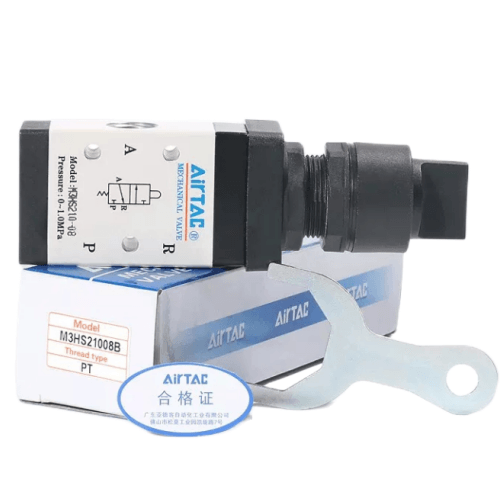

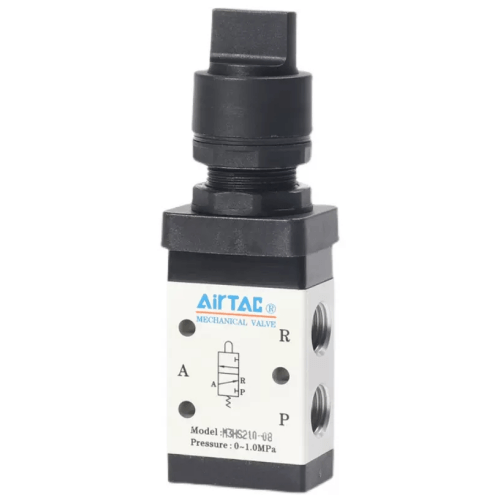

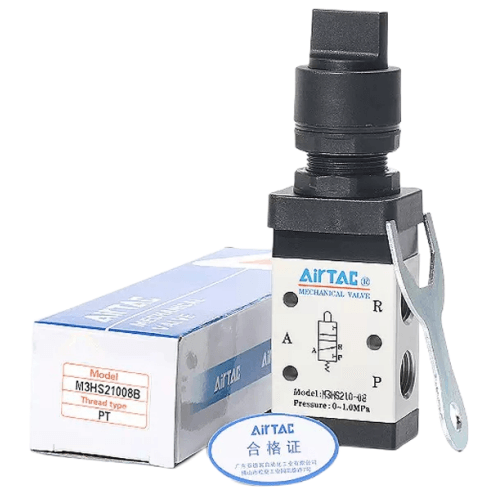

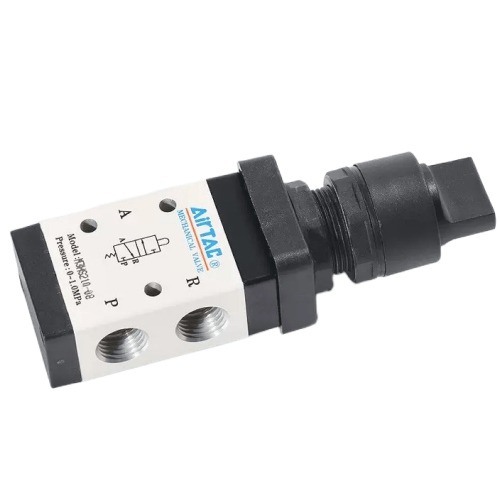

Airtac M3HS Selector Mechanical Valve M3HS21006G
2. M3B/M3R/M3L series utilize externally supplied directional switching force, suitable for position detection or limit switch applications;
3. M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with multiple structural configurations for diverse operational requirements;
4. Spool-type design ensures consistent control force independent of working pressure (zero backpressure effect), enhanced by internal ring sealing for reliable performance and smooth directional switching;
5. Oil-free lubrication system eliminates maintenance requirements;
6. Multi-position mounting capability ensures flexible installation options;
7. M3C/M3D/M3Y/M3R/M3I series incorporate durable metal actuators for extended service life and enhanced operational stability.
Category: Mechanical Valves | Brand: AirTAC | Series: M3HS
AirTAC M3HS21006G Selector Mechanical Valve Specifications
- Model: M3HS21006G
- Type: 3-position selector valve (mechanical lever operation)
- Port configuration: 5 ports (P, A, B, R1, R2)
- Port size: PT1/4 (G1/8 optional)
- Operating pressure: 0.15–0.8 MPa (21.7–116 psi)
- Max flow rate: 750 L/min (ANR)
- Actuation force: ≤25N lever operation
- Weight: 320g ±5g
- Dimensions: 58mm(L) × 42mm(W) × 78mm(H)
- Body material: Aluminum alloy (hard anodized)
- Seal material: HNBR rubber (high nitrile)
- Temperature range: -10℃ to 80℃ (14℉ to 176℉)
- Vibration resistance: ≤10–55Hz with 1.5mm amplitude
- Protection rating: IP67 (dust/water resistant)
Manual override valve with positive center position lock, designed for precise directional control in harsh environments. Features dual exhaust ports for rapid cylinder decompression and anti-corrosion coating for outdoor use. Requires ISO 8573-1:2010 Class 3.4.2 compressed air quality.
- Emergency override in automated production lines
- Material handling equipment position locking
- Mobile hydraulic/pneumatic hybrid systems
- Plastic injection molding safety circuits
- Test bench manual control stations
Installation note:
Lubricate lever pivot monthly with ISO VG32 turbine oil.
Ensure exhaust ports face downward when mounted in horizontal pipelines.
Maximum permissible side load on lever: 15N.
| Property | Property Value |
|---|---|
| sku | M3HS21006G |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
