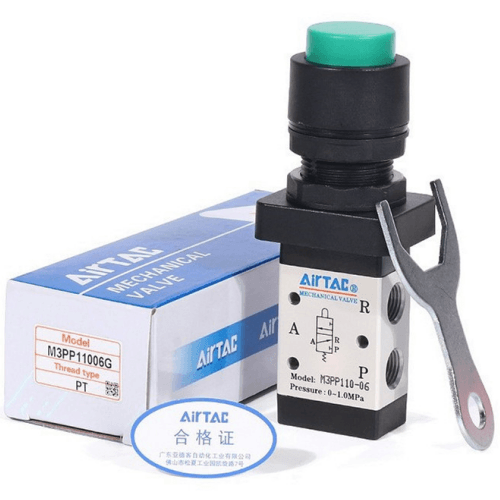

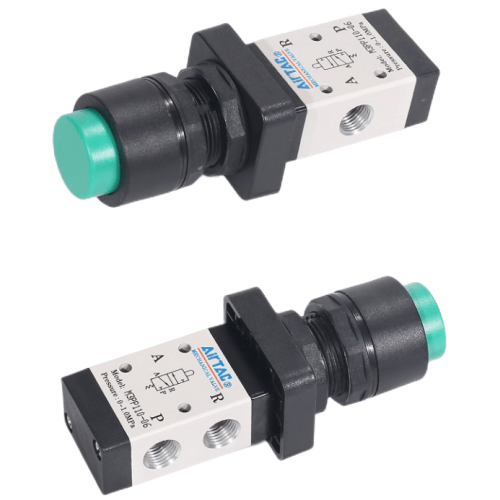

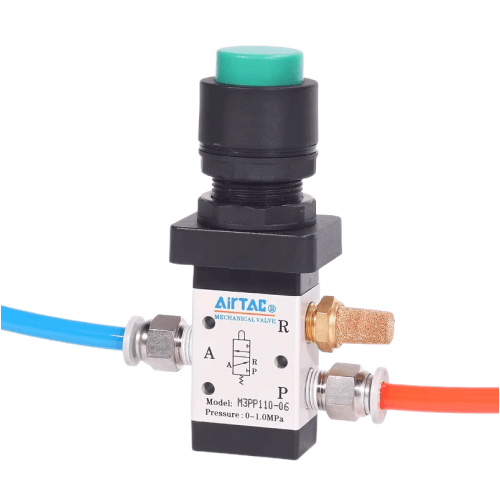

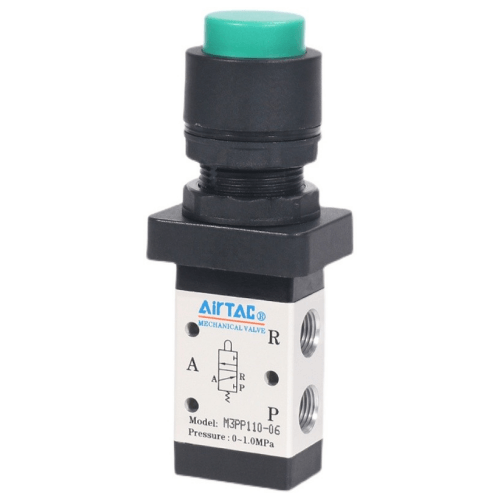

Airtac M3PP Domed Head Push Button Type Mechanical Valve M3PP11006B
2. M3B/M3R/M3L series utilize external mechanism-provided actuation force, suitable for position sensing or limit switch applications;
3. M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with multiple structural configurations of control heads for diverse operational conditions;
4. Spool-type design with pressure-independent actuation force (zero backpressure effect), internal sealing ring ensures reliable sealing and responsive directional switching;
5. Lubrication-free operation;
6. Multi-position mounting options for simplified installation;
7. Metal construction of control heads in M3C/M3D/M3Y/M3R/M3I series ensures extended service life and enhanced operational stability.
Category: Mechanical Valves | Brand: AirTAC | Series: M3PP
AirTAC M3PP11006B Mushroom Head Push Button Mechanical Valve Specifications
- Model: M3PP11006B
- Type: 3/2-way normally closed (manual reset)
- Port size: PT1/8 (G1/8 optional)
- Operating pressure: 0.1–0.9 MPa
- Button stroke: 6±1mm
- Actuation force: 5-8N
- Weight: 220g ±5%
- Dimensions: 52mm(L) × 38mm(W) × 65mm(H)
- Body material: Anodized aluminum alloy
- Seal material: HNBR rubber (high nitrile)
- Temperature range: -20℃ to 80℃ (with dry air)
- Protection rating: IP67 (dust/water resistant)
- Mechanical life: ≥500,000 cycles
- Mounting type: Panel mounting (Ø22mm cutout)
Emergency-stop style mechanical valve with positive tactile feedback, featuring a lockable red mushroom head for safety-critical applications. The dual-spring mechanism ensures automatic reset prevention until manual release. Corrosion-resistant construction with triple-layer chrome plating on critical components.
- Emergency stop systems in CNC machinery
- Safety interlocks for press machines
- Manual override in automated production lines
- Pneumatic system maintenance lockouts
- Training simulator control panels
Installation note:
Ensure full button clearance (≥15mm above actuator). For vertical mounting,
use included anti-rotation bracket. Lubricate pivot points every 6 months
with ISO VG32 hydraulic oil.
| Property | Property Value |
|---|---|
| sku | M3PP11006B |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
