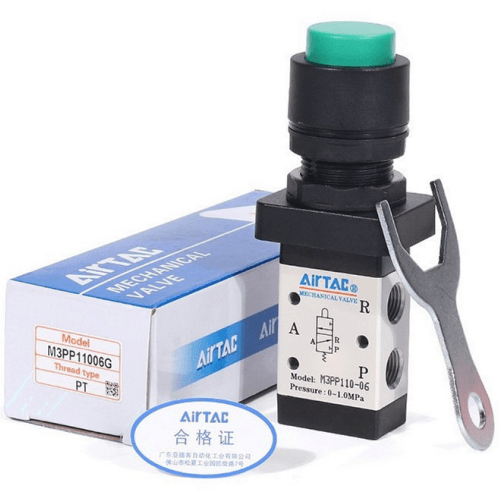

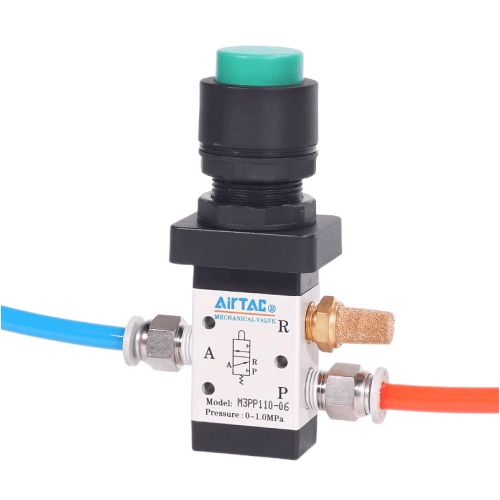

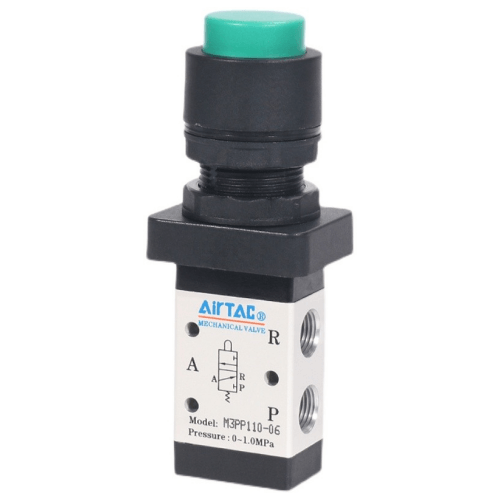

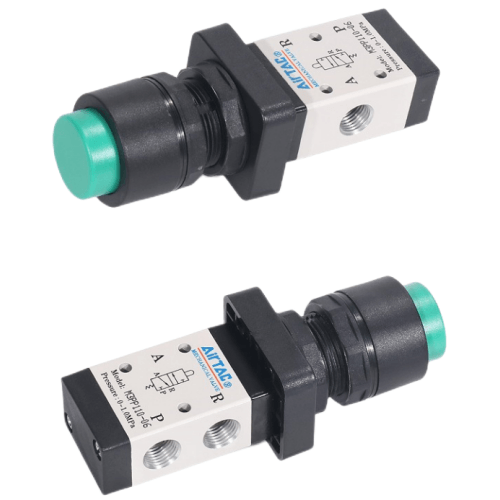

Airtac M3PP Domed Head Push Button Type Mechanical Valve M3PP11006G
2. M3B/M3R/M3L series utilize external mechanism-provided actuation force, suitable for position sensing or limit switch applications;
3. M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with multiple structural configurations of control heads for diverse operational conditions;
4. Spool-type design with pressure-independent actuation force (zero backpressure effect), internal sealing ring ensures reliable sealing and responsive directional switching;
5. Lubrication-free operation;
6. Multi-position mounting options for simplified installation;
7. Metal construction of control heads in M3C/M3D/M3Y/M3R/M3I series ensures extended service life and enhanced operational stability.
Category: Mechanical Valves | Brand: AirTAC | Series: M3PP
AirTAC M3PP11006G Mushroom Head Push Button Mechanical Valve Specifications
- Model: M3PP11006G
- Type: 3/2-way normally closed (manual reset)
- Port size: PT1/8 (G1/8 thread standard)
- Operating pressure: 0.1–0.7 MPa
- Actuation force: 45N ±10%
- Body material: Anodized aluminum alloy
- Seal material: Heat-resistant NBR (Nitrile)
- Temperature range: -10℃ to 80℃
- Weight: 215g ±5g
- Dimensions: 52mm(L) × 52mm(W) × 42mm(H)
- Mounting: Panel mounting with M18×1.5 thread
- Contact rating: 5A 250VAC (Silver alloy contacts)
- Protection rating: IP67 (dust/water resistant)
Emergency-stop style mechanical valve with large 30mm diameter stainless steel mushroom head, featuring positive mechanical latching and bright yellow safety coating. The dual-contact design ensures reliable circuit breaking, with integrated dust shield preventing particulate ingress. Requires manual pull-to-reset operation after activation.
- Emergency stop systems for CNC machinery
- Safety interlocks in automated production lines
- Material handling equipment emergency cutoff
- Robotic work cell safety stations
- Press machine two-hand control systems
Installation guidelines:
Mount vertically with ≥30mm clearance around actuator. Perform monthly
functional tests - depress fully until audible click is heard. Lubricate
sliding surfaces with silicone grease (ISO VG 10) every 6 months.
| Property | Property Value |
|---|---|
| sku | M3PP11006G |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
