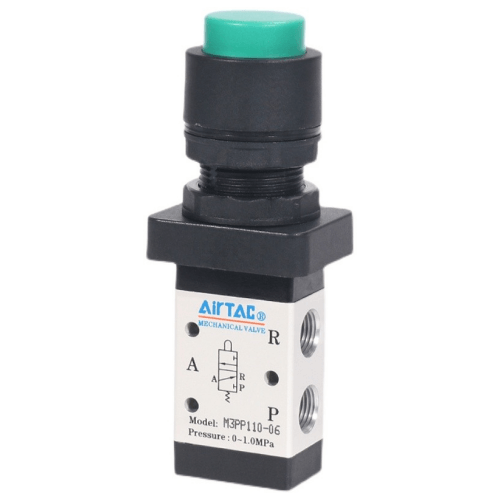

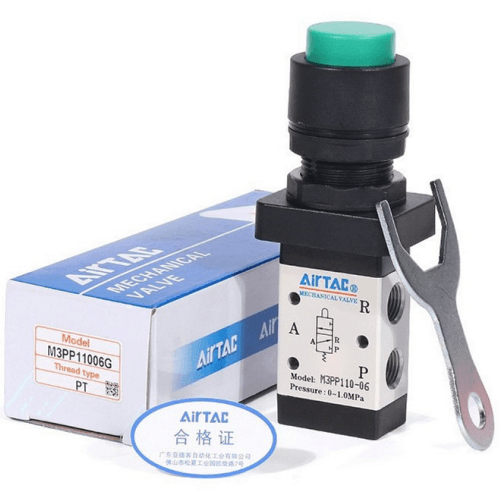

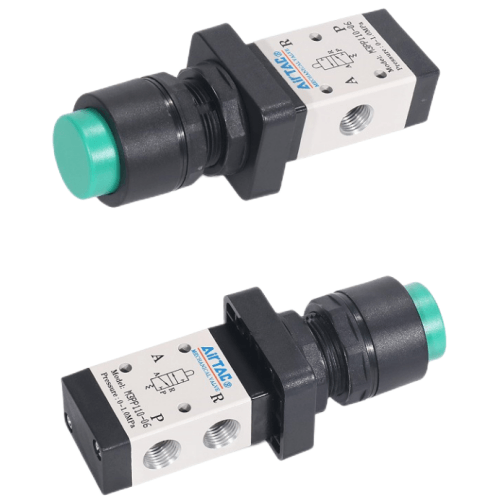

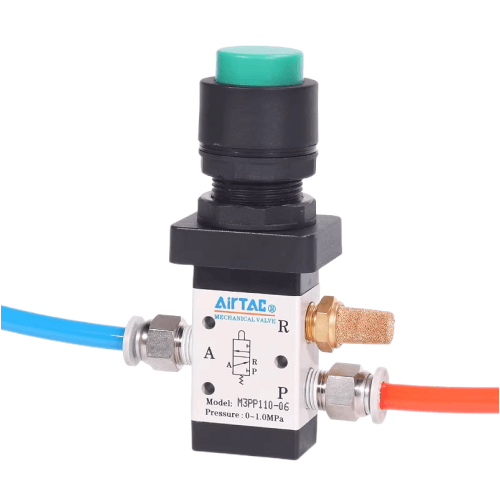

Airtac M3PP Domed Head Push Button Type Mechanical Valve M3PP21006B
2. M3B/M3R/M3L series utilize external mechanism-provided actuation force, suitable for position sensing or limit switch applications;
3. M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with multiple structural configurations of control heads for diverse operational conditions;
4. Spool-type design with pressure-independent actuation force (zero backpressure effect), internal sealing ring ensures reliable sealing and responsive directional switching;
5. Lubrication-free operation;
6. Multi-position mounting options for simplified installation;
7. Metal construction of control heads in M3C/M3D/M3Y/M3R/M3I series ensures extended service life and enhanced operational stability.
Category: Mechanical Valves | Brand: AirTAC | Series: M3PP
AirTAC M3PP21006B Mushroom Head Push Button Mechanical Valve Specifications
- Model: M3PP21006B
- Type: 3/2-way normally closed (manual reset)
- Port size: 1/4" NPT (G1/8 optional)
- Operating pressure: 0.05–0.9 MPa
- Button type: Lockable mushroom head (ISO 13850 compliant)
- Mounting style: Panel mount with M20×1.5 thread
- Body material: Anodized aluminum alloy
- Seal material: High-grade HNBR
- Temperature range: -20℃ to 80℃ (with intermittent peaks at 120℃)
- Actuation force: 30-50N (EN 60947-5-5 certified)
- Protection rating: IP67 (dust/water resistant)
- Weight: 280g ±5g
- Dimensions: 54mm(D) × 54mm(H) × 89mm(L)
Emergency-stop mechanical valve with positive-lock mechanism featuring a 40mm diameter yellow/red mushroom head. Designed for safety-critical applications requiring manual override capability. The zinc-nickel plated stainless steel spring ensures corrosion resistance in humid environments. Includes dual-color position indicator (green=open, red=closed).
- Emergency stop circuits in CNC machinery
- Safety interlocks for press machines
- Manual override systems in automated production lines
- Mobile hydraulic equipment emergency controls
- Robotic cell safety access points
Installation note:
Requires 360° accessibility for emergency operation. Mounting panel thickness should be 1-10mm.
Perform monthly mechanical reset tests under pressure. Lubricate pivot points with MIL-PRF-81322 grease annually.
| Property | Property Value |
|---|---|
| sku | M3PP21006B |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
