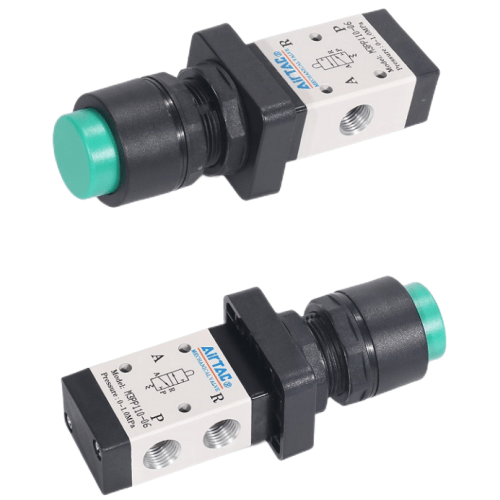

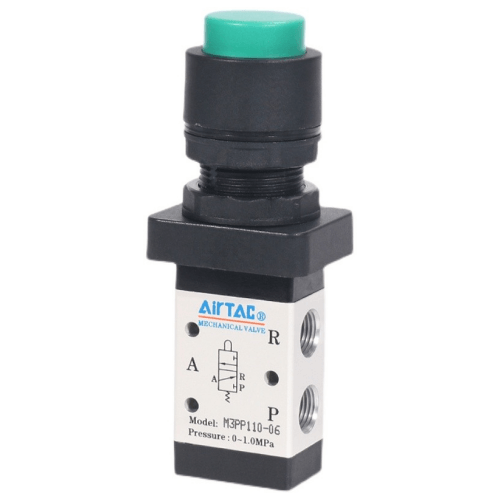

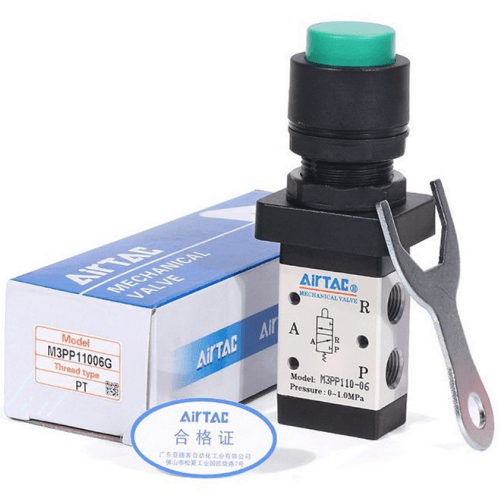

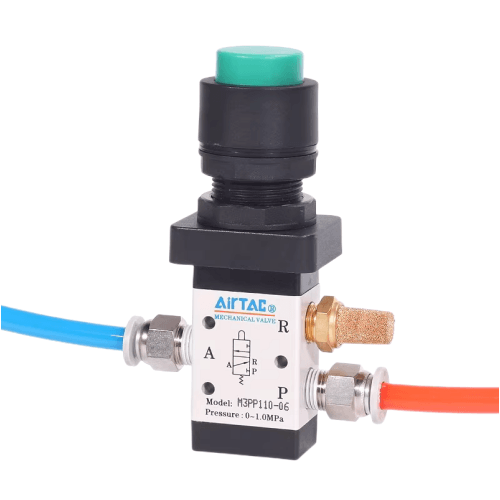

Airtac M3PP Domed Head Push Button Type Mechanical Valve M3PP21008B
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2. M3B/M3R/M3L series utilize external mechanism-provided actuation force, suitable for position sensing or limit switch applications;
3. M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with multiple structural configurations of control heads for diverse operational conditions;
4. Spool-type design with pressure-independent actuation force (zero backpressure effect), internal sealing ring ensures reliable sealing and responsive directional switching;
5. Lubrication-free operation;
6. Multi-position mounting options for simplified installation;
7. Metal construction of control heads in M3C/M3D/M3Y/M3R/M3I series ensures extended service life and enhanced operational stability.
Category: Mechanical Valves | Brand: AirTAC | Series: M3PP
AirTAC M3PP21008B Push Button Mechanical Valve Technical Details
- Model: M3PP21008B
- Type: 3/2-way normally closed (manual reset)
- Actuation: Push-button mechanical operation
- Port size: PT1/8 (G1/8 optional)
- Operating pressure: 0.05–0.7 MPa
- Max flow rate: 750 L/min (ANR)
- Body material: Aluminum alloy (anodized finish)
- Seal material: FKM fluorocarbon rubber
- Temperature range: -10℃ to 80℃
- Weight: 220g ±5%
- Dimensions: 54mm(L) × 38mm(W) × 72mm(H)
- Mounting style: Panel mounting (15mm cutout)
- Manual override: Built-in emergency release
- Response time: ≤0.5s (full stroke)
- Cycle life: ≥1,000,000 operations
Robust mechanical valve with tactile feedback button, featuring IP67-rated dust/water resistance. The chrome-plated brass stem ensures smooth operation under high-cycle conditions. Integrated O-ring groove design prevents accidental disassembly. Requires 5-7Nm torque during installation.
- Emergency stop systems in production lines
- Pneumatic fixture clamping controls
- Manual override stations for automated machinery
- Safety interlocks in material handling equipment
- Test bench pneumatic circuits
Maintenance advisory:
Lubricate pivot points with ISO VG32 hydraulic oil every 50,000 cycles.
Avoid side-loading the actuator button during operation.
| Property | Property Value |
|---|---|
| sku | M3PP21008B |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
