Airtac M5PM Mushroom Push Button Type Mechanical Valve M5PM21008B
$27.88
Regular price
$35.38
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
M5PM21008B
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

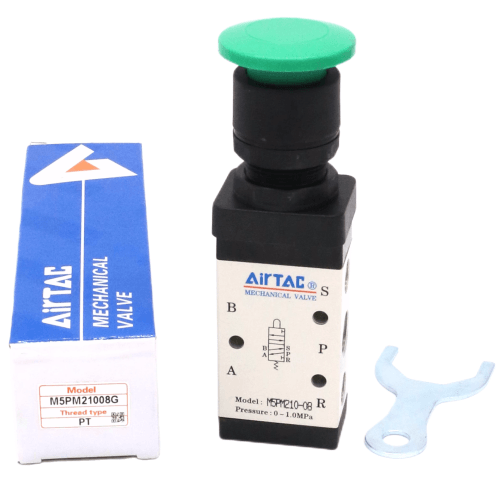

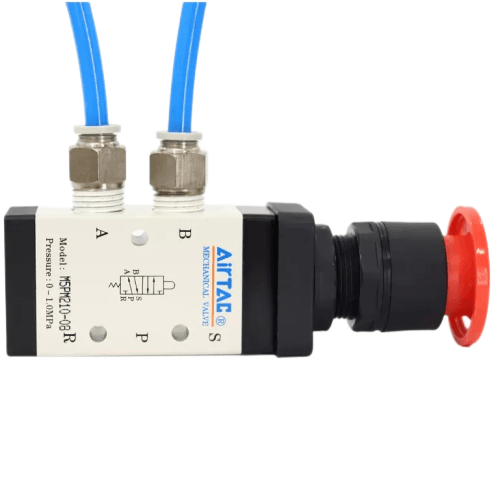

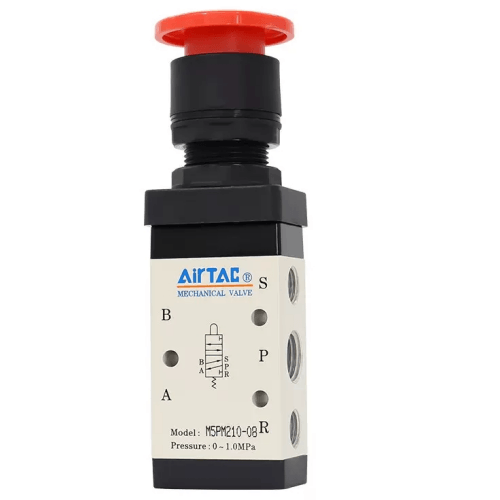

Product Description of AIRTAC M5PM Mushroom Head Push Button Mechanical Valve:
1. Exhaust ports integrated on the valve body facilitate silencer installation, effectively reducing noise and minimizing environmental contamination;
2. M5B/M5R/M5L series utilize externally provided actuation force for directional changes, suitable for position sensing or limit switch applications;
3. M5C/M5D/M5Y/M5PF/M5PM/M5PP/M5PL/M5HS series feature manual operation with diversified actuator configurations for optimal ergonomic control under varying conditions;
4. Spool-type structure ensures consistent actuation force independent of working pressure (zero back-pressure interference), incorporating internal ring sealing for enhanced leak-tight performance and smooth directional switching;
5. Maintenance-free lubrication system eliminates requirement for oil replenishment;
6. Multiple mounting orientations enable flexible installation and operational convenience;
7. Metal actuator construction in M5C/M5D/M5Y/M5R/M5L series guarantees extended service life with reinforced reliability and operational stability.
Category: Mechanical Valves, Brand: AIRTAC, Series: M5PM
Installation guidelines:
Mount on 1-5mm thick panels using included M20 locknut. Maintain minimum 25mm
clearance around button for full actuation range. Test monthly by pulling
peripheral yellow collar to verify positive air cutoff.
Critical note:
Always install in series with electrical E-stop circuits for
complete system shutdown. Not suitable for vacuum applications.
1. Exhaust ports integrated on the valve body facilitate silencer installation, effectively reducing noise and minimizing environmental contamination;
2. M5B/M5R/M5L series utilize externally provided actuation force for directional changes, suitable for position sensing or limit switch applications;
3. M5C/M5D/M5Y/M5PF/M5PM/M5PP/M5PL/M5HS series feature manual operation with diversified actuator configurations for optimal ergonomic control under varying conditions;
4. Spool-type structure ensures consistent actuation force independent of working pressure (zero back-pressure interference), incorporating internal ring sealing for enhanced leak-tight performance and smooth directional switching;
5. Maintenance-free lubrication system eliminates requirement for oil replenishment;
6. Multiple mounting orientations enable flexible installation and operational convenience;
7. Metal actuator construction in M5C/M5D/M5Y/M5R/M5L series guarantees extended service life with reinforced reliability and operational stability.
Category: Mechanical Valves, Brand: AIRTAC, Series: M5PM
AirTAC M5PM21008B Mushroom Head Push Button Mechanical Valve Specifications
- Model: M5PM21008B
- Type: 2-position 3-way (2/3) manual reset with mechanical latching
- Port size: G1/8 (ISO228 standard)
- Operating pressure range: 0.15–0.8 MPa (21.7–116 PSI)
- Max flow rate: 450 NL/min (ANR)
- Actuation force: 20-30N (button depression)
- Temperature range: -20℃ to 70℃ (-4°F to 158°F)
- Body material: Nickel-plated brass
- Seal material: NBR (Nitrile rubber)
- Mounting type: Panel mount with M20×1.5 thread
- Button diameter: 40mm (standard safety mushroom head)
- Mechanical life: ≥500,000 cycles
- Weight: 215g ±5g
- Dimensions: 58mm(L) × 50mm(W) × 34mm(H)
- Protection rating: IP67 (dust/water resistant)
- Safety compliance: ISO13850 (emergency stop devices)
Industrial-grade emergency stop valve featuring a prominent yellow mushroom head with red base for quick visual identification. The dual-stage latching mechanism requires twist-release for reset after activation. Precision-machined brass body ensures leak-free operation even under vibration-intensive environments.
Typical Applications:
- Production line emergency stop systems
- Press machine safety interlocks
- Robotic cell perimeter safety controls
- Packaging equipment pneumatic circuit isolation
- Hydraulic system manual override stations
Installation guidelines:
Mount on 1-5mm thick panels using included M20 locknut. Maintain minimum 25mm
clearance around button for full actuation range. Test monthly by pulling
peripheral yellow collar to verify positive air cutoff.
Critical note:
Always install in series with electrical E-stop circuits for
complete system shutdown. Not suitable for vacuum applications.
| Property | Property Value |
|---|---|
| sku | M5PM21008B |
| Position | 5 Ports 2 Position |
| Port Size | PT1/4 |
