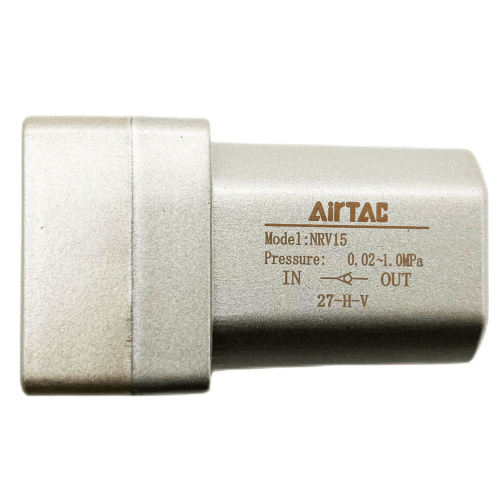

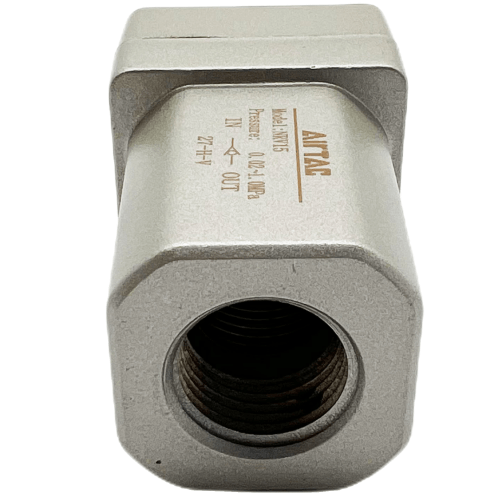

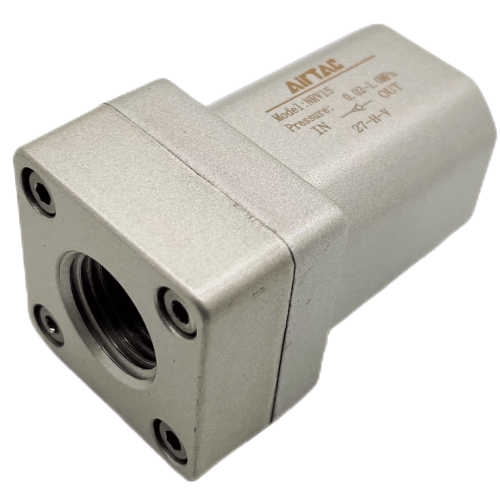

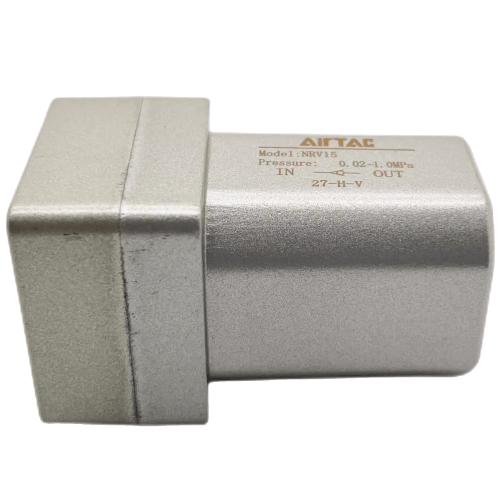

Airtac NRV Non-Return Valve NRV20
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2、Prevents backflow phenomena caused by pressure decay in air supply systems or excessive consumption-induced pressure drops;
3、Features a large effective flow area for optimized pneumatic performance;
4、Incorporates injection-molded POM valve core and elastomer-sealed orifice, engineered with compact construction for reliability.
Category: Check Valves
Brand: AIRTAC
Series: NRV
AirTAC NRV Series One-Way Valve NRV20 Technical Specifications
- Model: NRV20 (Metal Body Series)
- Type: Spring-loaded poppet check valve
- Port size: PT3/8 (G3/8 optional)
- Max working pressure: 1.5 MPa
- Cracking pressure: 0.015 MPa
- Flow capacity: 250 L/min (ΔP=0.1 MPa)
- Operating temperature: -5℃ to 80℃
- Seal material: HNBR (Hydrogenated Nitrile)
- Body material: Aluminum alloy (anodized)
- Weight: 280g ±5%
- Dimensions: 56mm(L) × 42mm(W) × 42mm(H)
- Thread torque: 15-20 N·m
- Viscosity range: 1-400 cSt
High-flow check valve with precision-machined metal seat for zero-leakage performance. Features low cracking pressure and bi-directional installation capability. The HNBR seals provide chemical resistance against hydraulic oils and mild lubricants. Anodized surface treatment ensures corrosion protection in humid environments.
- Pneumatic circuit backflow prevention
- Hydraulic system pressure holding
- Air compressor outlet protection
- Vacuum pump inlet isolation
- Industrial robot actuator circuits
- CNC machine tool lubrication systems
Installation guidance:
Arrow direction indicates flow path. For vertical mounting,
position valve with arrow pointing upward. Apply thread sealant
(PTFE tape recommended) on male threads only. Avoid overtightening -
use torque wrench for precise installation.
| Property | Property Value |
|---|---|
| sku | NRV20 |
| Port | BSPT 3/4 |
