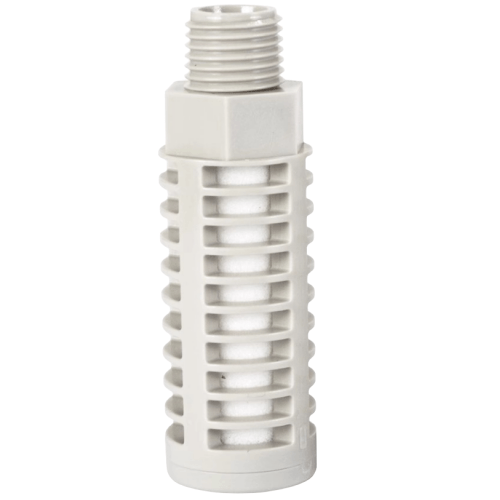

Airtac PAL Plastic Silencer PAL03
The AirTAC Airtac PAL Plastic Silencer PAL03 is a genuine plastic silencer that cuts exhaust noise by 25 dB at 0.5 MPa using a polyethylene-fibre filter in a POM body.
- TypePlastic silencer
- SeriesPAL
- Working pressure0 - 1.0 MPa (0 - 10 kgf/cm2)
- Proof pressure1.5 MPa
- Noise reduction25 dB
- Temperature-20 to +70 °C
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac PAL Plastic Silencer PAL03
When a directional valve vents, the air leaving its exhaust port is a compressed pulse, and that pulse is heard as the sharp crack that dominates a pneumatic machine's sound. The PAL03 threads onto a 3/8in PT exhaust port and lets that pulse expand through a polyethylene-fibre element, cutting exhaust noise by 25 dB measured at 0.5 MPa - the largest reduction figure in the AirTAC silencer range.
Both the top cover and the body are injection-moulded from POM, so the part adds almost nothing to a manifold's mass and cannot rust in humid plant air. AirTAC also lists a D-suffix version of the PAL series moulded entirely in black, which matters on machines where the valve bank and its silencers sit in plain view of the operator.
Airtac PAL Plastic Silencer PAL03 Technical Specifications
| Model | Airtac PAL Plastic Silencer PAL03 |
|---|---|
| Type | Plastic silencer |
| Series | PAL |
| Noise reduction | 25 dB at 0.5 MPa |
| Element | Polyethylene-fibre filter in a pom body |
| Working pressure | 0 - 1.0 MPa (0 - 10 kgf/cm2) |
|---|---|
| Negative pressure | -750 mmHg (10 Torr) |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Thread standard | PT (Rc tapered) unless the code says otherwise |
POM release button and chuck, aluminium-alloy guide, stainless spring gasket, NBR O-ring; body brass or PBT depending on the part. AirTAC publishes flow as a characteristic curve rather than a single figure, so no L/min value is listed.
Model Code: Airtac PAL Plastic Silencer PAL03
| PAL | Plastic silencer. |
|---|---|
| 01 / 02 / 03 / 04 | Thread: 1/8", 1/4", 3/8", 1/2". M5 where the series offers it. |
| D | Black. Blank = grey. |
Choosing a Silencer
- check Sintered-brass types (BSL / BSLM / BESL) give 13 dB and take rough treatment.
- check Resin types (PAL / PALM / PPA) give 25 dB and weigh far less.
- check PPA plugs straight into a tube instead of a thread, and is copper-free for sensitive processes.
- check BESL adds an adjustable throttle, so it silences AND sets exhaust speed in one part.
- check An undersized or clogged silencer shows up as a slow return stroke - size it to the valve's exhaust port.
Where the Airtac PAL Plastic Silencer PAL03 Is Used
Beverage bottling valve bank
Packaging halls run rows of valves a metre from where operators stand for a full shift. Fitting PAL03 to each 3/8in exhaust port removes the repeated crack of each cycle and is one of the cheapest ways to pull a workstation under a workplace noise limit.
Laboratory vacuum circuit
The PAL series is rated for negative pressure down to -750 mmHg (10 Torr), so a lab bench ejector or vacuum-holding fixture can vent through this same 3/8in silencer instead of hissing into the room.
Print-and-cut conveyor stoppers
Stopper and pusher cylinders on web-handling conveyors fire several times a minute right beside the operator station. A resin silencer keeps the exhaust note down without adding the weight that a brass body would hang on the manifold.
Is the Airtac PAL Plastic Silencer PAL03 the Right Part?
This 3/8in size sits between PAL02 (1/4in) below it and PAL04 (1/2in) above it; the compact PALM family stops at 1/4in, so PAL03 is already past the point where the mini body is offered. Match the thread to the valve's exhaust port rather than stepping down for tidiness - a choked silencer holds backpressure in the valve and visibly slows the cylinder's return stroke. Where the part will take knocks from carts or sit near hot, oily metal, the sintered-brass BSL03 survives better but reduces noise by only 13 dB; choose PAL03 when noise is the priority and the element will not be abused.
Quick checklist
- ✓ Tube outside diameter matches exactly
- ✓ Thread size and standard match the port
- ✓ Working pressure within 0 - 1.0 MPa (0 - 10 kgf/cm2)
- ✓ Temperature within -20 to +70 °C
- ✓ Noise target: 13 dB metal or 25 dB resin
Airtac PAL Plastic Silencer PAL03 FAQ
Working pressure 0-1.0 MPa (0-10 kgf/cm2), usable in vacuum down to -750 mmHg (10 Torr), proof pressure 1.5 MPa, and a service temperature range of -20 to +70 C. This SKU carries a 3/8in PT male thread, and every size in the PAL series shares the same 25 dB noise reduction measured at 0.5 MPa.
Mechanically it is identical. The D suffix only selects AirTAC's black top cover and body instead of the natural POM finish; the polyethylene-fibre element, the 3/8in thread and every rating stay the same. Specify D purely where the silencer is visible on the machine front and a dark component looks better.
