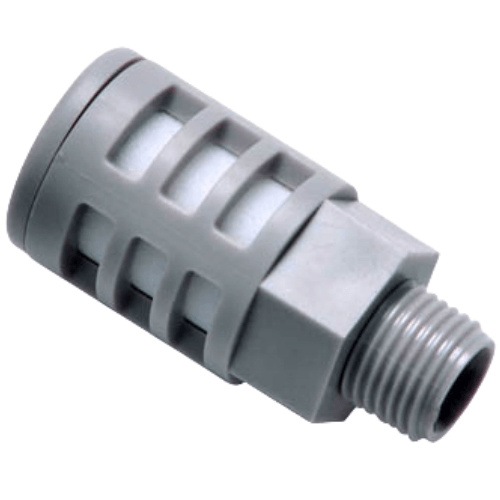

Airtac PALM Mini Plastic Silencer PALM01D
1. All-plastic construction with superior noise reduction performance, suitable for direct use in oil-free or clean environments;
2. Compact miniature design featuring minimized size and space-saving structure.
AirTAC PALM Miniature Plastic Silencer PALM01D Specifications
- Model: PALM01D
- Type: Threaded exhaust silencer (straight-through design)
- Material: Fiber-reinforced PA66 + NBR seal
- Thread size: PT1/8 (G1/8 equivalent)
- Effective bore diameter: 2.5mm
- Operating pressure range: 0.05-1.0 MPa
- Temperature resistance: -10℃ to 80℃ (operating), -20℃ to 100℃ (storage)
- Flow coefficient (Cv): 0.15
- Pressure drop: ≤0.02 MPa at 0.5 MPa supply pressure
- Noise reduction: 18-22 dB(A) attenuation
- Vibration resistance: 10-55Hz @ 1.5mm amplitude
- Installation torque: 0.5-0.7 N·m
- Weight: 3.8±0.2g
- Dimensions: 14.5mm(Ø) × 19.2mm(H)
Ultra-compact pneumatic exhaust silencer featuring spiral airflow channels and multi-stage noise damping chambers. The sintered brass filter element (mesh size 40μm) prevents particulate backflow while maintaining optimal exhaust efficiency. Corrosion-resistant construction withstands oil mist and mild chemicals.
- Miniature pneumatic cylinders in SMT equipment
- Medical device pneumatic exhaust ports
- Laboratory automation valve manifolds
- Food processing machinery with space constraints
- 3D printer pneumatic subsystems
Installation note:
Apply 2-3 wraps of PTFE tape on male threads before installation.
For vertical downward exhaust orientation, install drainage kit PALM-DK1
to prevent liquid ingress. Replace when airflow resistance increases by 15%
compared to initial performance.
| Property | Property Value |
|---|---|
| sku | PALM01D |
