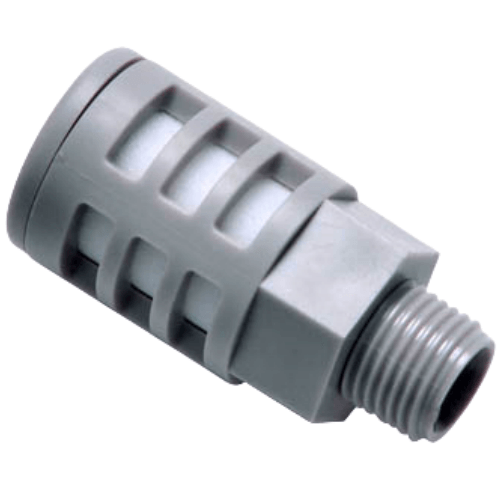

Airtac PALM Mini Plastic Silencer PALM02
The AirTAC Airtac PALM Mini Plastic Silencer PALM02 is a genuine mini plastic silencer that cuts exhaust noise by 25 dB at 0.5 MPa using a polyethylene-fibre filter in a POM body.
- TypeMini plastic silencer
- SeriesPALM
- Working pressure0 - 1.0 MPa (0 - 10 kgf/cm2)
- Proof pressure1.5 MPa
- Noise reduction25 dB
- Temperature-20 to +70 °C
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac PALM Mini Plastic Silencer PALM02
The PALM02 is the 1/4in PT member of AirTAC's mini plastic silencer family. It screws onto a valve or cylinder exhaust port and breaks up the pressure pulse that would otherwise leave as a sharp crack, cutting noise by 25 dB at 0.5 MPa - the highest reduction figure published anywhere in this silencer range. The element that does the work is a polyethylene fibre filter inside a POM top cover and body, so the whole part is light resin rather than metal.
PALM is the compact take on the PAL series and exists in exactly two threads: 1/8in (PALM01) and 1/4in (this model). AirTAC offers a D suffix on PALM that changes the top cover and body to black, useful when natural or grey plastic clashes with a machine's panel colour. Being POM, the body will not rust in damp or wash-prone areas, but keep it clear of hot swarf and heavy knocks that a metal body would shrug off.
Airtac PALM Mini Plastic Silencer PALM02 Technical Specifications
| Model | Airtac PALM Mini Plastic Silencer PALM02 |
|---|---|
| Type | Mini plastic silencer |
| Series | PALM |
| Noise reduction | 25 dB at 0.5 MPa |
| Element | Polyethylene-fibre filter in a pom body |
| Working pressure | 0 - 1.0 MPa (0 - 10 kgf/cm2) |
|---|---|
| Negative pressure | -750 mmHg (10 Torr) |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Thread standard | PT (Rc tapered) unless the code says otherwise |
POM release button and chuck, aluminium-alloy guide, stainless spring gasket, NBR O-ring; body brass or PBT depending on the part. AirTAC publishes flow as a characteristic curve rather than a single figure, so no L/min value is listed.
Model Code: Airtac PALM Mini Plastic Silencer PALM02
| PALM | Mini plastic silencer. |
|---|---|
| 01 / 02 / 03 / 04 | Thread: 1/8", 1/4", 3/8", 1/2". M5 where the series offers it. |
| D | Black. Blank = grey. |
Choosing a Silencer
- check Sintered-brass types (BSL / BSLM / BESL) give 13 dB and take rough treatment.
- check Resin types (PAL / PALM / PPA) give 25 dB and weigh far less.
- check PPA plugs straight into a tube instead of a thread, and is copper-free for sensitive processes.
- check BESL adds an adjustable throttle, so it silences AND sets exhaust speed in one part.
- check An undersized or clogged silencer shows up as a slow return stroke - size it to the valve's exhaust port.
Where the Airtac PALM Mini Plastic Silencer PALM02 Is Used
Valve bank on a biscuit-packing line
Operators stand beside a 1/4in-ported solenoid bank for a full shift, and every cycle adds to the hiss. A PALM02 on each exhaust port takes 25 dB off that noise without adding metal weight to the manifold.
Laboratory sample handler
Small pneumatic actuators venting inside a bench-top analyser are close to the operator's ears. The 1/4in thread fits the compact valves usually specified there, and the all-resin body adds nothing magnetic or corrosive to the enclosure.
Noise-limit retrofit on an assembly air bench
When a workstation has to meet a workplace noise limit, exhausted quick-exhaust valves are often the culprit. Swapping open 1/4in ports for PALM02 silencers is the cheapest single step, and the D suffix black version keeps the retrofit visually invisible.
Is the Airtac PALM Mini Plastic Silencer PALM02 the Right Part?
Step down to PALM01 if the exhaust port is 1/8in; PALM stops at 1/4in, so for a 3/8in or 1/2in port in resin you move to the full-size PAL03 or PAL04. The trade-off across the whole range stays the same: sintered-brass BSL types manage 13 dB but tolerate knocks, heat and dirty air, while this resin build delivers 25 dB where that extra 12 dB is what pulls a cell under its noise target. Size to the valve's exhaust port rather than a size down - an undersized or clogged silencer throttles the exhaust and drags out the return stroke.
Quick checklist
- ✓ Tube outside diameter matches exactly
- ✓ Thread size and standard match the port
- ✓ Working pressure within 0 - 1.0 MPa (0 - 10 kgf/cm2)
- ✓ Temperature within -20 to +70 °C
- ✓ Noise target: 13 dB metal or 25 dB resin
Airtac PALM Mini Plastic Silencer PALM02 FAQ
Working pressure 0-1.0 MPa (0-10 kgf/cm2), negative pressure -750 mmHg (10 Torr), proof pressure 1.5 MPa and operating temperature -20 to +70 C. The thread is 1/4in PT and the silencing effect is 25 dB at 0.5 MPa, the figure shared by the entire resin PAL family.
No. PALM is made only in 1/8in (PALM01) and 1/4in threads, so fitting it through a reducing bush would throttle the exhaust and defeat the purpose. Order PAL03 for a 3/8in port instead - the same POM and polyethylene fibre construction and the same 25 dB reduction, just in a full-size body.
