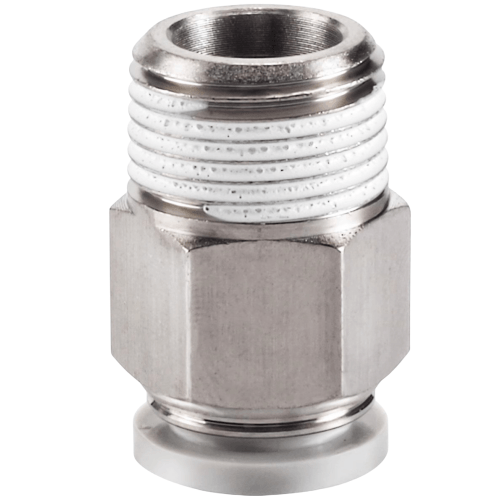

Airtac PC Threaded Straight Connector PC602-S
SUS304 stainless variant (-S)The AirTAC Airtac PC Threaded Straight Connector PC602-S is a genuine male connector for push-in tube connection, rated 0 - 1.0 MPa (0 - 10 kgf/cm2) with a 1.5 MPa proof pressure.
- TypeMale connector
- SeriesPC
- Working pressure0 - 1.0 MPa (0 - 10 kgf/cm2)
- Proof pressure1.5 MPa
- Temperature-20 to +70 °C
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac PC Threaded Straight Connector PC602-S
PC602-S is the SUS304 version of the AirTAC PC male straight connector. It joins Dia 6 mm soft nylon or polyurethane tube to a 1/4 in PT male thread, and on this -S variant the entire connector body is stainless steel 304 with copper-free construction. The release button and chuck remain POM, backed by an aluminium-alloy guide, a stainless spring gasket and an NBR O-ring.
Operation is AirTAC's standard one-touch action: push the tube home and the chuck grips it against the spring gasket; press the release ring and the tube frees off. The ratings are untouched by the -S suffix - 0 to 1.0 MPa working, 1.5 MPa proof, -750 mmHg vacuum and -20 to +70 C - and the dimension tables match the brass PC602, so it drops straight into an existing panel drill pattern without re-checking anything.
Airtac PC Threaded Straight Connector PC602-S Technical Specifications
| Model | Airtac PC Threaded Straight Connector PC602-S |
|---|---|
| Type | Male connector |
| Series | PC |
| Connection | Push-in one-touch |
| Body material | Stainless steel 304 (-S variant) |
| Working pressure | 0 - 1.0 MPa (0 - 10 kgf/cm2) |
|---|---|
| Negative pressure | -750 mmHg (10 Torr) |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Applicable tubing | Soft nylon or polyurethane tube |
| Thread standard | PT (Rc tapered) unless the code says otherwise |
POM release button and chuck, aluminium-alloy guide, stainless spring gasket, NBR O-ring; body brass or PBT depending on the part. Stainless (-S): SUS304 in place of brass - a solid SUS304 body on the PC and POC straight connectors, and a PBT body with a SUS304 stud on the elbow, tee and branch shapes. Working pressure, proof pressure and temperature are unchanged from the standard version. AirTAC publishes flow as a characteristic curve rather than a single figure, so no L/min value is listed.
Model Code: Airtac PC Threaded Straight Connector PC602-S
| PC | Male connector. |
|---|---|
| 4 / 6 / 8 / 10 / 12 | Tube outside diameter in mm (3.2 mm exists on the mini series). |
| M5 / 01 / 02 / 03 / 04 | Thread: M5x0.8, 1/8", 1/4", 3/8", 1/2" (M3 on the mini series). |
| D | Black. Blank = grey. |
| -S | Stainless-steel body. |
Fitting & Sealing Notes
- check Cut the tube square and clean before pushing it home, or the seal will leak.
- check Push until it stops, then pull back to check the chuck has gripped.
- check To release, press the collet ring fully in and pull the tube out.
- check Threaded parts arrive with sealant on the thread; M5 sizes use a sealing gasket.
- check Match the tube OD exactly - a 6 mm fitting will not hold 1/4" tube.
Where the Airtac PC Threaded Straight Connector PC602-S Is Used
Plating and surface-treatment shops
Copper-free construction is the reason to buy this part here: above pickling and electroplating tanks, where dissolved copper ruins bath chemistry, a SUS304 PC602-S feeding rinse-air nozzles keeps copper out of the process air path.
Wash-down food conveyor controls
On a bakery or meat-plant conveyor that gets hosed down each shift, a Dia 6 line run to a sorting actuator's solenoid valve survives the daily wash where a brass connector would pit and stain.
Harbour-side crane pneumatics
A Dia 6 signal line from a valve manifold to a dockside winch-control cylinder sits in salt-laden air all day; the stainless body shrugs off the salt fog that corrodes plated brass fittings within months.
Is the Airtac PC Threaded Straight Connector PC602-S the Right Part?
On the PC ladder this thread sits between PC601 (Dia 6 tube, 1/8 in) and PC603 (Dia 6 tube, 3/8 in); both are real catalogue parts, and stepping either way changes only the port the sealant-coated thread mates with, not the grip on the tube. If your line is Dia 8 or Dia 12, the 1/4 in PC ladder continues with PC802 and PC1202. The tube OD must match exactly - a Dia 6 fitting will not hold 1/4 in tube, even though the inch figure sounds close to 6 mm.
Quick checklist
- ✓ Tube outside diameter matches exactly
- ✓ Thread size and standard match the port
- ✓ Working pressure within 0 - 1.0 MPa (0 - 10 kgf/cm2)
- ✓ Temperature within -20 to +70 °C
Airtac PC Threaded Straight Connector PC602-S FAQ
Working pressure 0 to 1.0 MPa (0 to 10 kgf/cm2), negative pressure to -750 mmHg (10 Torr), proof pressure 1.5 MPa, temperature range -20 to +70 C. This SKU is a Dia 6 mm tube fitting with a 1/4 in PT male thread, and the body is stainless steel 304. The -S suffix changes materials only - every pressure, vacuum and temperature figure is identical to the standard PC602.
No. Dia 6 mm is the only tube this fitting grips, and the OD must match exactly - 1/4 in tube measures 6.35 mm and will not seat on the spring gasket. Run soft nylon or polyurethane in a true 6 mm OD. Also note AirTAC publishes no release-cycle count for the push button: it can be operated repeatedly, but no figure is specified.
