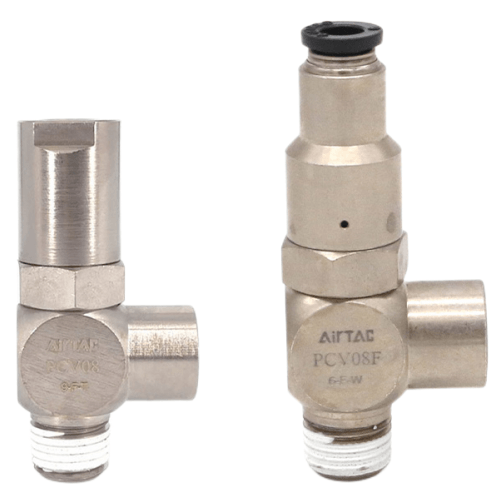

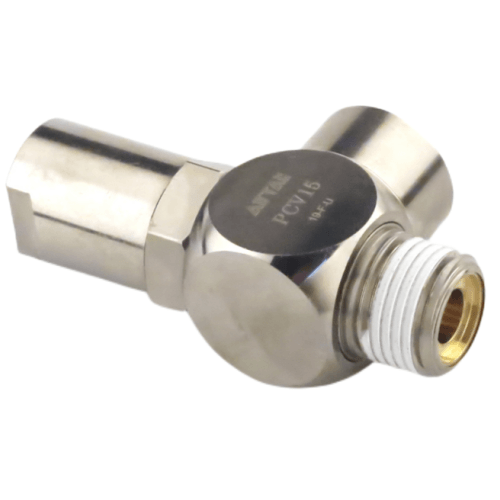

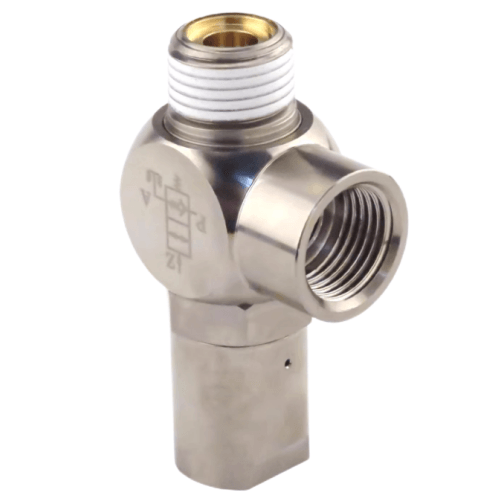

Airtac PCV Pilot Check Valve PCV06
2. Instantaneous cylinder stopping with precise positioning capabilities
3. Specialized circuit design applications:
4. Innovative pilot port cartridge-style design enables space-efficient installation and enhanced operational efficiency.
Category: Check Valves | Brand: AirTAC | Series: PCV
AirTAC PCV06 Pilot-Controlled Check Valve Technical Details
- Model: PCV06-00A (Standard Configuration)
- Type: Pilot-operated check valve with spring return
- Port size: PT1/8 (G1/8 optional)
- Operating pressure range: 0.1–0.7 MPa
- Cracking pressure: 0.03 MPa (minimum)
- Flow capacity: 350 NL/min (ANR)
- Body material: Aluminum alloy (anodized finish)
- Seal material: HNBR (Hydrogenated Nitrile) for high temperature resistance
- Temperature range: -20℃ to 80℃ (with intermittent peaks to 120℃)
- Pilot pressure requirement: ≥0.25×main pressure
- Weight: 195g ±5g
- Dimensions: 30mm(W) × 25mm(H) × 40mm(L)
- Mounting orientation: Any (vertical/horizontal)
- Vibration resistance: ≤10Hz with 1.5mm amplitude
- Certification: RoHS compliant
This pilot-operated check valve features zero-leakage poppet design with precision-machined stainless steel spring. The optimized flow path reduces pressure drop by 15% compared to previous generations. Its compact form factor enables integration in clustered pneumatic systems while maintaining service accessibility.
- Preventing cylinder drift in vertical lifting mechanisms
- Emergency pressure locking in hydraulic-pneumatic hybrid systems
- Sequential control circuits requiring fail-safe position holding
- Robotic gripper pressure maintenance during power loss
- Vacuum system backflow prevention
Installation protocol:
Install downstream of directional valves with clean, lubricated air supply (ISO 8573-1 Class 3.4.2).
For vertical cylinder load holding, install directly at cylinder port.
Allow 20mm clearance for manual override operation.
| Property | Property Value |
|---|---|
| sku | PCV06 |
| Port Size | PT1/8 |
