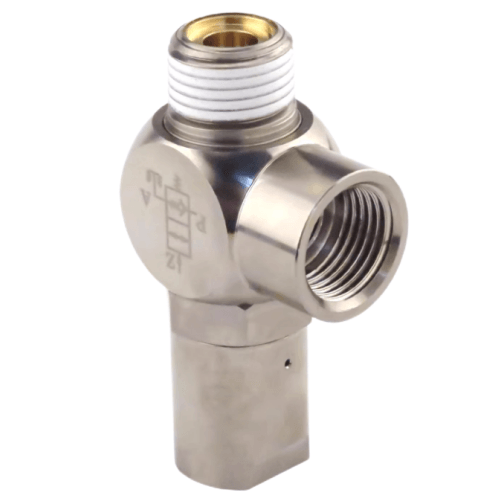

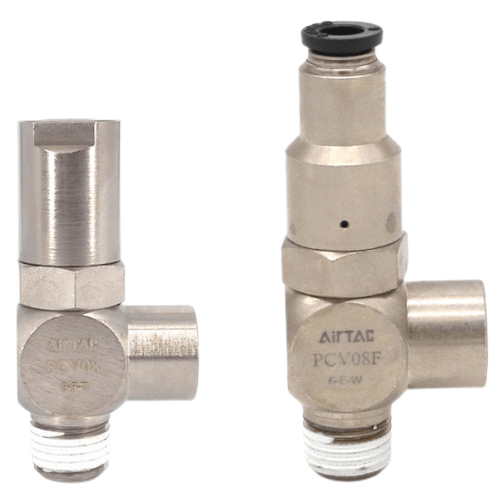

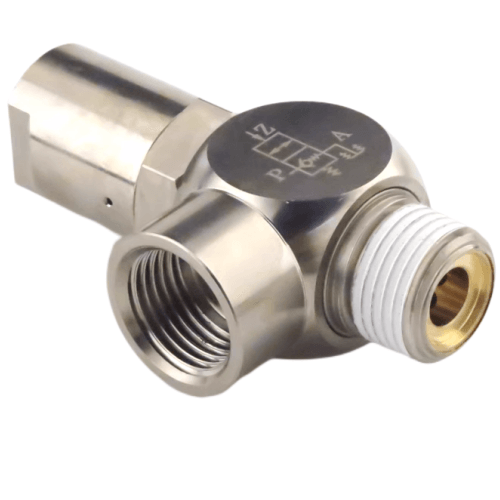

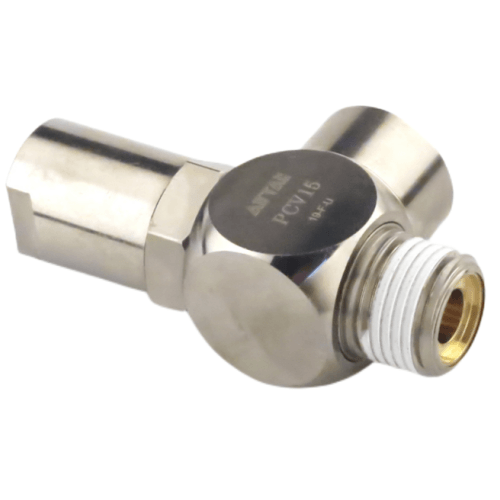

Airtac PCV Pilot Check Valve PCV06F
2. Instantaneous cylinder stopping with precise positioning capabilities
3. Specialized circuit design applications:
4. Innovative pilot port cartridge-style design enables space-efficient installation and enhanced operational efficiency.
Category: Check Valves | Brand: AirTAC | Series: PCV
AirTAC PCV06F Pilot Check Valve Technical Specifications
- Model: PCV06F (Induction Check Valve)
- Type: Pilot-operated check valve with spring return
- Port size: PT1/8 (G1/8 optional)
- Operating pressure: 0.1–0.8 MPa
- Cracking pressure: ≤0.02 MPa
- Flow capacity: 300 L/min (at 0.5 MPa)
- Max operating frequency: 5 Hz
- Body material: Aluminum alloy (anodized)
- Seal material: HNBR/NBR (optional FKM)
- Temperature range: -20℃ to 80℃
- Weight: 210g ±5g
- Dimensions: 40mm(L) × 30mm(W) × 50mm(H)
- Pilot connection: M5 threaded
- Response time: ≤15ms (pilot to open)
- Leakage: ≤3 bubbles/min (ISO 6952 test)
- Protection rating: IP40
This pilot-operated check valve features zero-leakage poppet design with precision-machined stainless steel spring, ensuring reliable reverse flow prevention even in low-pressure conditions. The dual-seal structure (main poppet + secondary O-ring) provides redundant sealing protection. Optimized flow path reduces pressure drop by 30% compared to conventional designs.
- Locking mechanisms in pneumatic cylinders
- Energy-saving circuits with pressure retention
- Vacuum system isolation
- Hydraulic pump unloading circuits
- Safety interlocks in automation equipment
- Medical gas delivery systems
Installation guidelines:
Arrow direction must align with main flow path. Install pilot line vertically downward.
For vertical mounting, ensure exhaust port faces downward. Use 2Nm torque for port connections.
Pre-lubricate seals with ISO VG32 hydraulic oil during maintenance.
