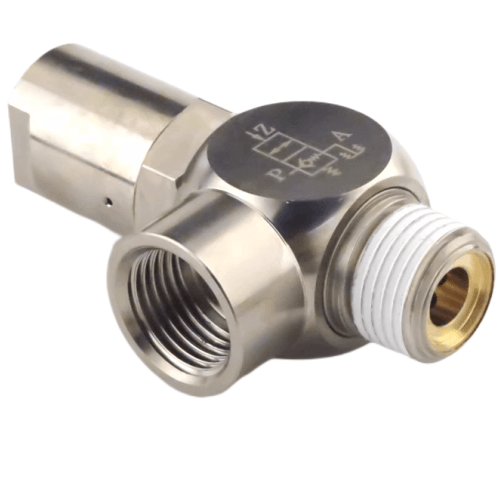

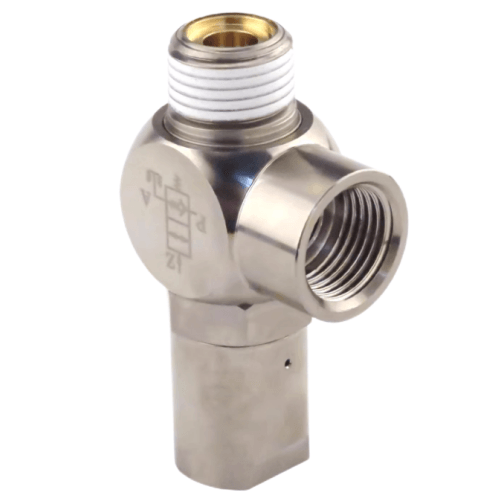

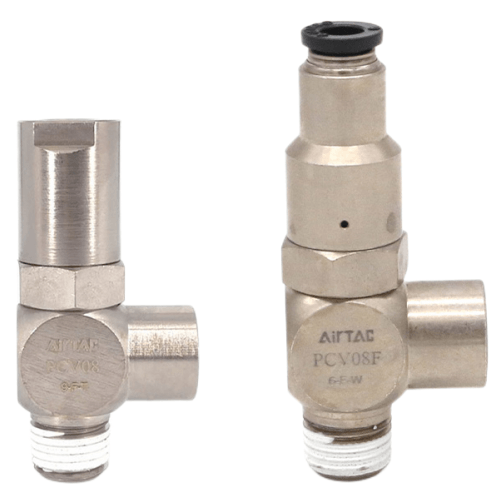

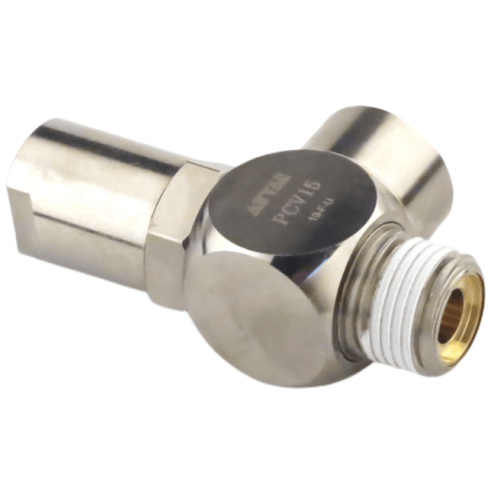

Airtac PCV Pilot Check Valve PCV08
2. Instantaneous cylinder stopping with precise positioning capabilities
3. Specialized circuit design applications:
4. Innovative pilot port cartridge-style design enables space-efficient installation and enhanced operational efficiency.
Category: Check Valves | Brand: AirTAC | Series: PCV
AirTAC PCV08 Pilot-Operated Check Valve Specifications
- Model: PCV08
- Type: Pilot-operated check valve (spring-loaded)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure range: 0.15–1.0 MPa
- Cracking pressure: 0.02 MPa (minimum)
- Max flow rate: 300 L/min (ANR)
- Temperature range: -5℃ to 60℃
- Body material: Anodized aluminum alloy
- Seal material: NBR (nitrile rubber)
- Spring material: Stainless steel SUS304
- Weight: 210g ±5g
- Dimensions: 50mm(L) × 30mm(W) × 30mm(H)
- Protection rating: IP40
- Installation orientation: Any direction (horizontal/vertical)
A unidirectional flow control valve with integrated pilot control, designed for precise locking of pneumatic actuators. Features low leakage design (<0.1 mL/min at 0.5 MPa) and rapid response time (<10ms). The dual-seal structure ensures reliable backflow prevention even under pressure fluctuations. Compatible with ISO 8573-1:2010 [7:4:4] compressed air quality.
- Cylinder position holding in automated assembly lines
- Emergency stop circuits in press machines
- Vacuum breaker in packaging systems
- Load-holding in material handling equipment
- Safety circuits for robotic welding arms
Installation note:
For optimal performance, install within 500mm downstream of the controlled cylinder.
Use a 5-10μm filter upstream and lubricate with ISO VG32 turbine oil if operating
in high-cycle (>5Hz) applications. Manual override available via 2mm hex key.
| Property | Property Value |
|---|---|
| sku | PCV08 |
| Port Size | PT1/4 |
