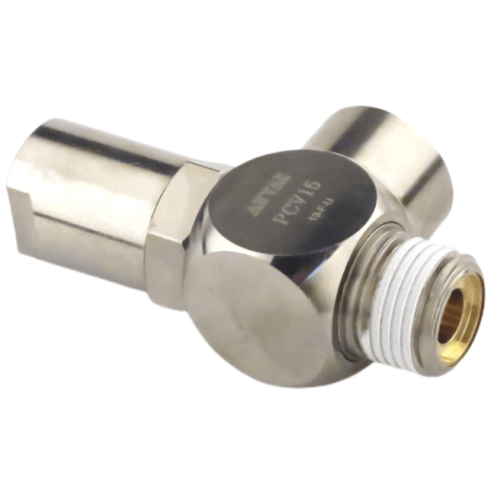

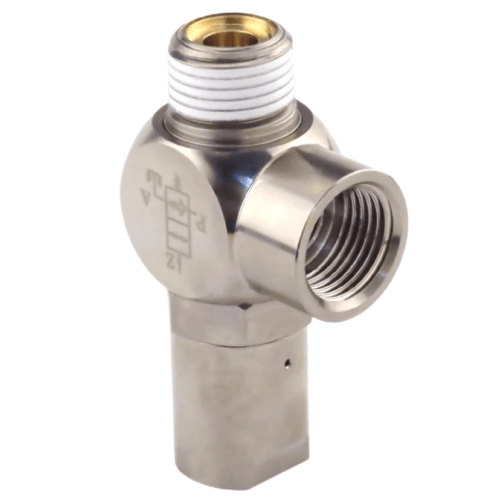

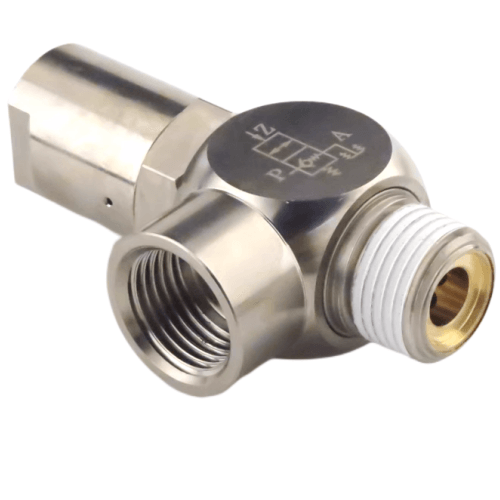

Airtac PCV Pilot Check Valve PCV08F
2. Instantaneous cylinder stopping with precise positioning capabilities
3. Specialized circuit design applications:
4. Innovative pilot port cartridge-style design enables space-efficient installation and enhanced operational efficiency.
Category: Check Valves | Brand: AirTAC | Series: PCV

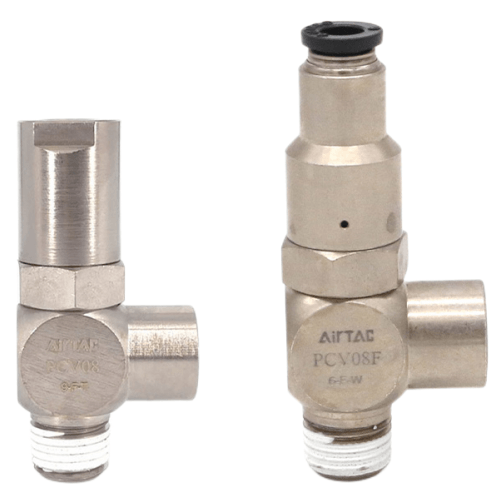

AirTAC PCV08F Pilot-Operated Check Valve Technical Details
- Model: PCV08F (ISO 228/1 standard)
- Type: Pilot-controlled check valve with spring return
- Port size: G1/8 (BSPP) with 8mm tube adaptor
- Max working pressure: 1.0 MPa
- Cracking pressure: 0.03 MPa (minimum pilot pressure)
- Flow capacity: 450 Nl/min (at 0.5 MPa)
- Body material: Anodized aluminum alloy
- Seal material: HNBR (Hydrogenated Nitrile) for high temp resistance
- Operating temperature: -10℃ to 150℃ (with HNBR seals)
- Weight: 280g ±5g (including fittings)
- Dimensions: 56mm(L) × 32mm(W) × 42mm(H)
- Port orientation: Axial flow design (in-line configuration)
- Viscosity range: 1-1000 cSt (ISO VG32 equivalent)
- Response time: ≤0.1s (pilot pressure activation)
High-performance pilot-operated check valve featuring zero-leakage poppet design with precision ground seat. The PCV08F maintains circuit pressure during system shutdowns and enables controlled directional flow release through pilot signal activation. Optimized for systems requiring fail-safe position holding with minimal pressure drop (ΔP ≤0.02 MPa at 500 Nl/min).
- Clamping force retention in injection molding machines
- Emergency stop cylinder locking in automated assembly lines
- Load-holding circuits for hydraulic elevators
- Energy-saving circuits in plastic extrusion equipment
- Safety brakes in material handling systems
Installation guidelines:
Mount vertically with arrow direction matching main flow. Maintain 10x pipe diameter straight run upstream.
Use 50μm filtration for pilot line. Manual override available via optional M5x0.8 emergency release screw.
| Property | Property Value |
|---|---|
| sku | PCV08F |
| Port Size | PT1/4 |
