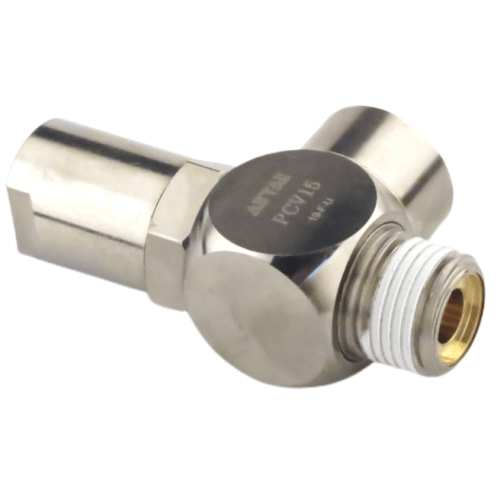

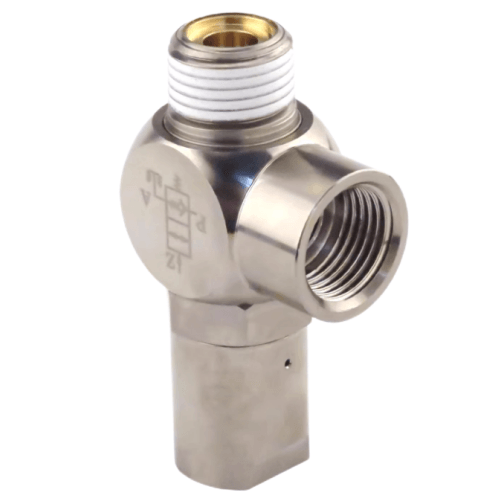

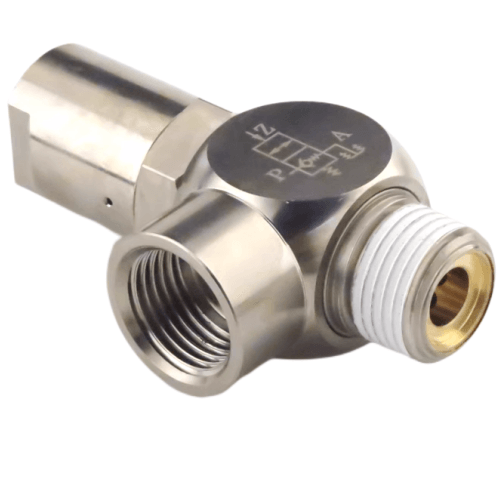

Airtac PCV Pilot Check Valve PCV10
2. Instantaneous cylinder stopping with precise positioning capabilities
3. Specialized circuit design applications:
4. Innovative pilot port cartridge-style design enables space-efficient installation and enhanced operational efficiency.
Category: Check Valves | Brand: AirTAC | Series: PCV
AirTAC PCV10 Pilot Check Valve Technical Specifications
- Model: PCV10
- Type: Pilot-operated check valve (poppet type)
- Port size: G1/8 (ISO228 standard)
- Operating pressure range: 0.05–1.0 MPa
- Cracking pressure: 0.003 MPa (minimum)
- Max flow capacity: 500 Nl/min (ANR)
- Temperature range: -5℃ to 80℃
- Body material: Stainless steel (SUS303)
- Seal material: HNBR rubber (high nitrile)
- Weight: 230g ±5g
- Dimensions: 52mm(L) × 34mm(W) × 38mm(H)
- Port thread depth: 12mm (male threads)
- Response time: ≤15ms (pilot pressure 0.3MPa)
- Leakage rate: ≤3 bubbles/min (ISO standard test)
Precision pilot-operated check valve featuring zero-leakage poppet design with integrated silencer. The stainless steel construction ensures corrosion resistance in humid environments, while the HNBR seals provide excellent oil and wear resistance. Requires 5μm filtered air and automatic drainage for optimal performance.
- Preventing reverse flow in pneumatic cylinder circuits
- Safety locking mechanisms in press machines
- Vacuum system pressure maintenance
- Robotic arm position holding systems
- Hydraulic-pneumatic hybrid control circuits
Installation guidelines:
Install vertically with arrow marking aligned to main flow direction.
Maintain 15mm minimum clearance around valve body.
Pre-charge pilot port before initial operation.
Lubricate with ISO VG32 turbine oil if used in high-cycle applications (>1M cycles/year).
| Property | Property Value |
|---|---|
| sku | PCV10 |
| Port Size | PT3/8 |
