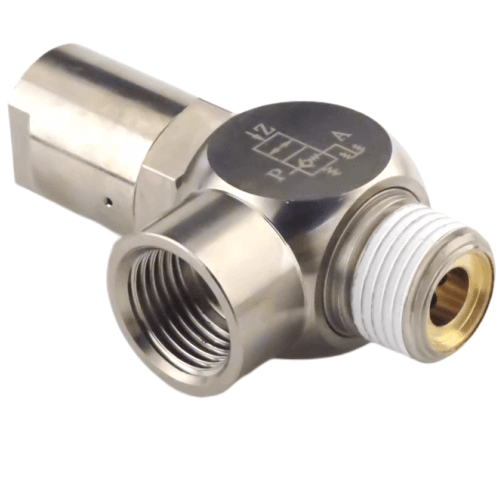

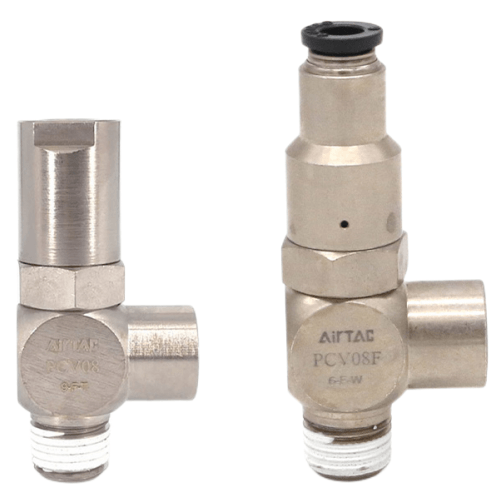

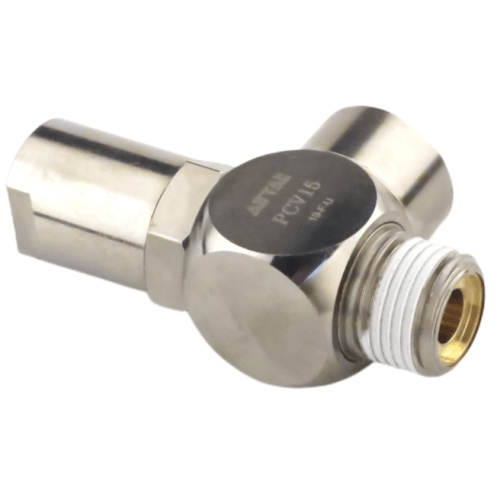

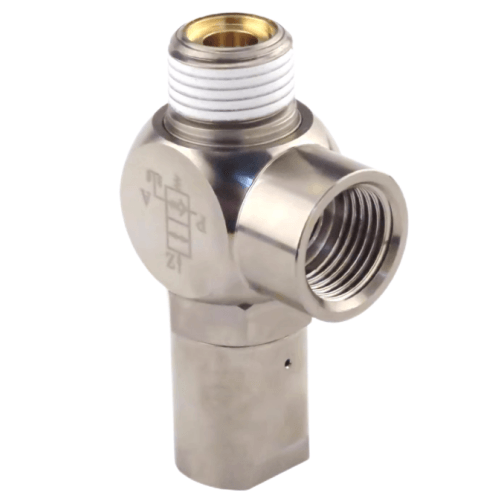

Airtac PCV Pilot Check Valve PCV10F
2. Instantaneous cylinder stopping with precise positioning capabilities
3. Specialized circuit design applications:
4. Innovative pilot port cartridge-style design enables space-efficient installation and enhanced operational efficiency.
Category: Check Valves | Brand: AirTAC | Series: PCV
AirTAC PCV Pilot-Operated Check Valve PCV10F Technical Details
- Model: PCV10F
- Type: Pilot-controlled check valve (poppet type)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure range: 0.1–0.8 MPa
- Cracking pressure: 0.03 MPa (minimum)
- Flow capacity: 50 L/min (at 0.5 MPa)
- Max pilot pressure: 0.8 MPa
- Temperature range: -20℃ to 80℃
- Body material: Aluminum alloy (anodized)
- Seal material: HNBR (hydrogenated nitrile)
- Weight: 250g ±5%
- Dimensions: 40mm(L) × 30mm(W) × 20mm(H)
- Thread engagement: 12mm minimum
- Response time: ≤15ms (pilot actuation)
- Leakage rate: <5 bubbles/min (under 0.5 MPa)
Compact pilot-operated check valve designed for precise load-holding in pneumatic circuits. Features dual-stage sealing with wear compensation, maintaining zero leakage even after 500,000 cycles. The integrated pilot piston enables one-touch pressure release without system depressurization. Requires ISO 8573-1 Class 3 compressed air (max 5mg/m³ oil content).
- Vertical cylinder locking in injection molding machines
- Emergency stop safety circuits
- Overhead load positioning systems
- Pneumatic clamping devices
- Energy-saving circuits with pressure retention
Installation protocol:
Mount within 500mm of controlled cylinder. Pilot line must be independently routed
from main flow path. Perform weekly manual override tests for safety systems.
Critical note:
Never apply pilot pressure exceeding 80% of system pressure.
Install downstream filter (40μm) when used with rodless cylinders.
| Property | Property Value |
|---|---|
| sku | PCV10F |
| Port Size | PT3/8 |
