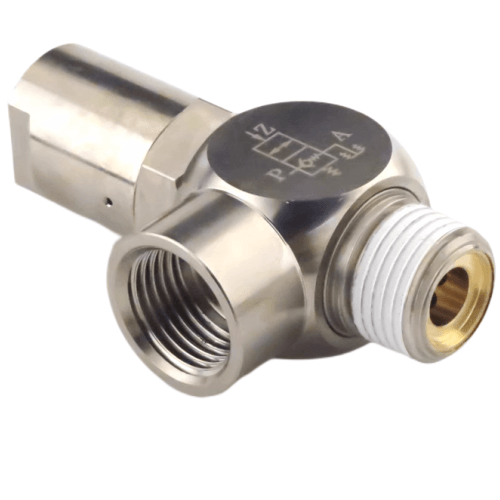

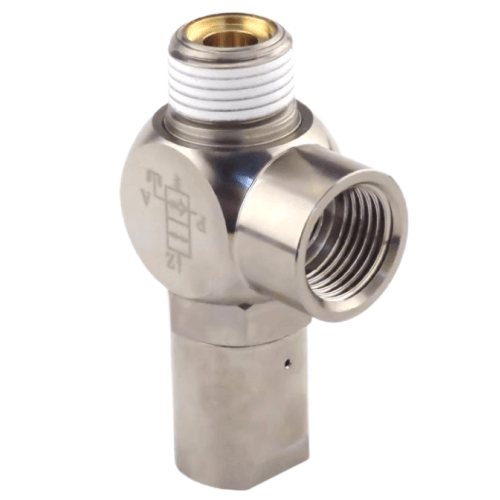

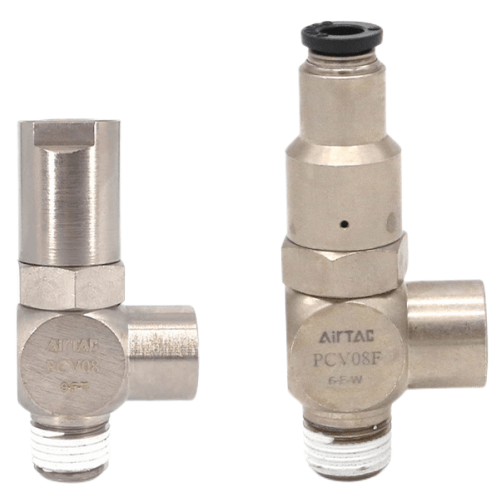

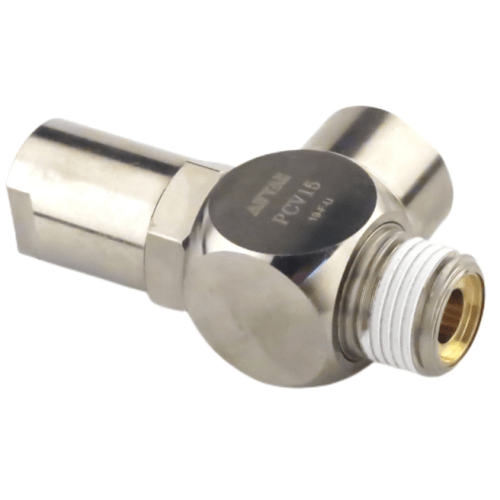

Airtac PCV Pilot Check Valve PCV15
2. Instantaneous cylinder stopping with precise positioning capabilities
3. Specialized circuit design applications:
4. Innovative pilot port cartridge-style design enables space-efficient installation and enhanced operational efficiency.
Category: Check Valves | Brand: AirTAC | Series: PCV
AirTAC PCV15 Pilot-Controlled Check Valve Technical Details
- Model: PCV15 (Pilot-Controlled Check Valve Series)
- Port configuration: 1/4" BSPP (G1/4) female threads
- Maximum working pressure: 16 bar (232 psi)
- Cracking pressure: 0.3 bar (4.35 psi)
- Flow capacity: 1,200 NL/min (at 7 bar)
- Operating temperature: -5℃ to 80℃
- Body material: Anodized aluminum alloy (ISO AlSi10Mg)
- Seal material: HNBR with PTFE backup ring
- Pilot pressure requirement: ≥30% of system pressure
- Weight: 340g ±5g (with packaging)
- Dimensions: 56mm(L) × 42mm(W) × 38mm(H)
- Viscosity range: 10-95 cSt (ISO VG15 to VG100)
- Response time: ≤80ms (pilot to full open)
Bi-directional locking valve with pilot-controlled release, featuring zero-leakage poppet design for cylinder position holding. The PCV15 incorporates a dual-stage sealing system with pressure compensation grooves, making it ideal for vertical load applications. Requires 5μm filtration recommended for maximum service life.
- Vertical press brake cylinder locking systems
- Automated material handling equipment safety brakes
- Plastic injection molding machine clamp units
- Hydraulic-pneumatic hybrid energy systems
- Elevator emergency stop pneumatic circuits
Installation protocol:
Mount directly to cylinder ports using Dowty seals (AS568-012 recommended).
Maintain minimum 15mm clearance below valve for pilot line routing.
Perform monthly manual override tests using integrated bleed screw.
| Property | Property Value |
|---|---|
| sku | PCV15 |
| Port Size | PT 1/2 |
