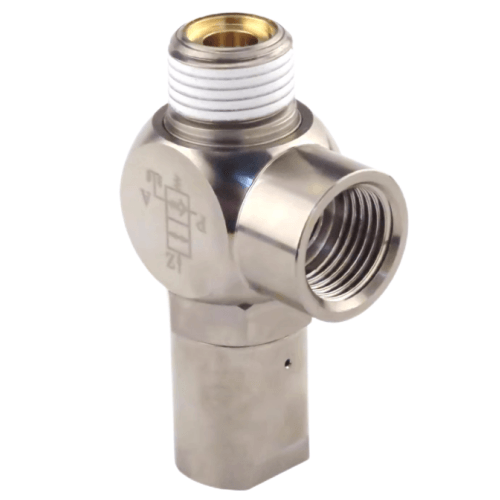

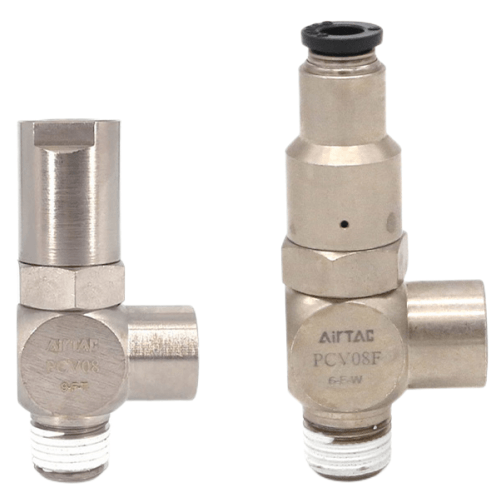

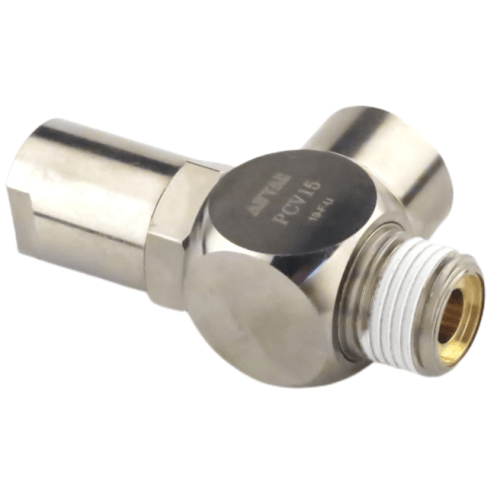

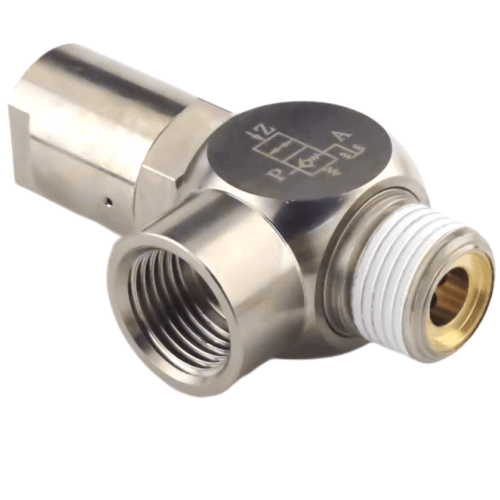

Airtac PCV Pilot Check Valve PCV15F
2. Instantaneous cylinder stopping with precise positioning capabilities
3. Specialized circuit design applications:
4. Innovative pilot port cartridge-style design enables space-efficient installation and enhanced operational efficiency.
Category: Check Valves | Brand: AirTAC | Series: PCV
AirTAC PCV Series Pilot-Operated Check Valve PCV15F Technical Details
- Model: PCV15F (Metal Body Series)
- Type: Pilot-controlled check valve with spring return
- Port configuration: 1/4" BSPP (G1/4) female threads
- Maximum operating pressure: 1.0 MPa (145 psi)
- Cracking pressure: 0.02 MPa (2.9 psi) ±20%
- Flow capacity: 750 L/min (ANR) at 0.5 MPa
- Temperature range: -5℃ to 70℃ (no freeze)
- Body material: Aluminum alloy (anodized finish)
- Seal material: HNBR (Hydrogenated Nitrile)
- Weight: 215g ±5g
- Dimensions: 54mm(L) × 38mm(W) × 32mm(H)
- Pilot pressure requirement: ≥0.3 MPa
- Leakage rate: ≤3 bubbles/min (ISO 6953-2)
- Response time: ≤0.1 sec (pilot to open)
Heavy-duty pilot-operated check valve featuring zero-leakage design with dual-sealing structure. The PCV15F's tapered poppet design ensures positive shut-off even under pressure fluctuations. Its metal construction withstands vibration better than plastic-body alternatives, with integrated filter screen (100μm) protecting the pilot chamber.
- Locking hydraulic/pneumatic cylinders in position during emergency stops
- Preventing reverse flow in vacuum generator systems
- Safety circuits in stamping presses
- Energy-saving circuits using accumulator units
- Load-holding in material handling equipment
Installation guidelines:
Mount vertically with flow arrow aligned. Use 20-30Nm torque for port connections.
Install downstream filter (≤40μm) when used with lubricated air. Pilot line should
be minimum Ø4mm tubing to ensure proper actuation speed.
| Property | Property Value |
|---|---|
| sku | PCV15F |
| Port Size | PT 1/2 |
