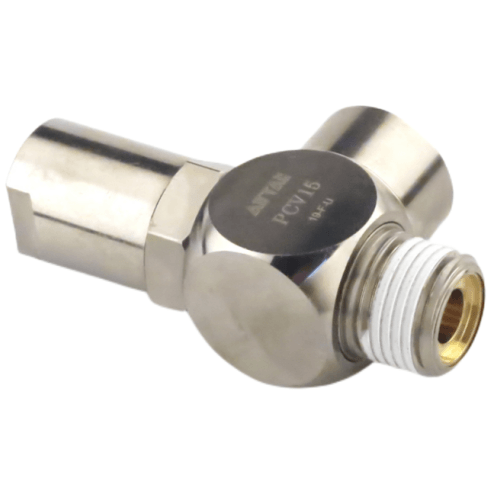

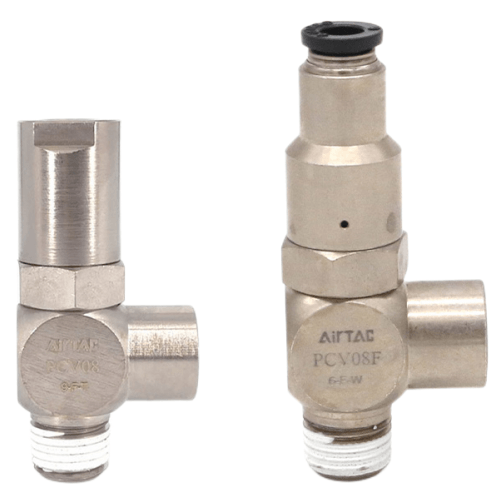

Airtac PCV Pilot Check Valve PCV15FG
2. Instantaneous cylinder stopping with precise positioning capabilities
3. Specialized circuit design applications:
4. Innovative pilot port cartridge-style design enables space-efficient installation and enhanced operational efficiency.
Category: Check Valves | Brand: AirTAC | Series: PCV

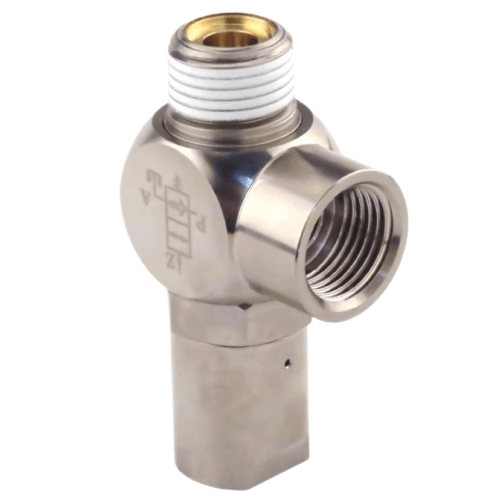

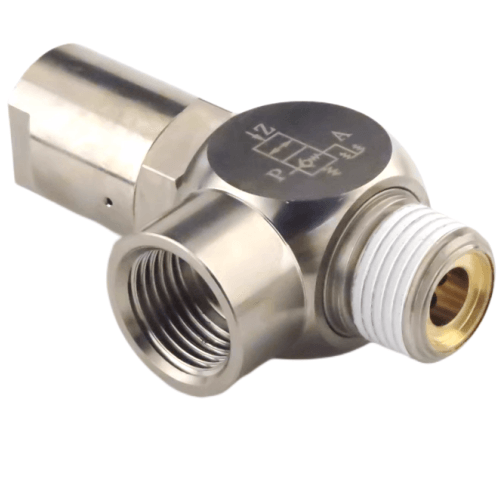

AirTAC PCV Series Pilot-Operated Check Valve PCV15FG Specifications
- Model: PCV15FG
- Type: Pilot-operated check valve (inductive control)
- Port size: PT1/4 (G1/4 equivalent)
- Operating pressure: 0.05–1.0 MPa
- Cracking pressure: ≤0.015 MPa
- Flow capacity: 850 L/min (ANR)
- Max operating frequency: 5 Hz
- Seal material: HNBR (Hydrogenated Nitrile)
- Body material: Aluminum alloy (anodized)
- Temperature range: -10℃ to 80℃
- Weight: ~215g (with fittings)
- Dimensions: 52mm(L) × 34mm(W) × 48mm(H)
- Port orientation: Axial flow design
- Response time: ≤30ms
High-flow pilot check valve featuring low cracking pressure and rapid response, engineered for precision locking in pneumatic circuits. The dual-seal structure prevents internal leakage (<0.1 mL/min at 0.5 MPa) and maintains position stability under vibration. Requires ISO 8573-1 class 3 or cleaner air quality.
- Vertical cylinder position holding in press machines
- Energy-saving circuits with intermediate stops
- Vacuum system backflow prevention
- Robotic arm brake mechanisms
- Hydraulic-pneumatic hybrid systems
Installation protocol:
Install within 1m downstream of actuator with arrow aligned to flow direction.
Use 2-position 5-way valve for pilot control. Perform weekly manual override
testing via emergency release button (yellow collar).
| Property | Property Value |
|---|---|
| sku | PCV15FG |
| Port Size | PT 1/2 |
