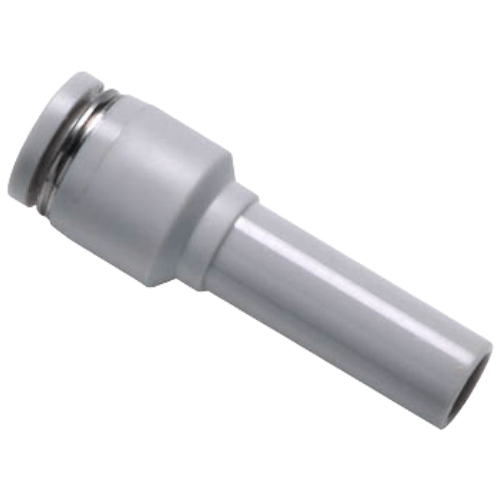

Airtac PGJ Plug Pin Reducing Straight Connector PGJ10-8D
The AirTAC Airtac PGJ Plug Pin Reducing Straight Connector PGJ10-8D is a genuine plug-in reducer for push-in tube connection, rated 0 - 1.0 MPa (0 - 10 kgf/cm2) with a 1.5 MPa proof pressure.
- TypePlug-in reducer
- SeriesPGJ
- Working pressure0 - 1.0 MPa (0 - 10 kgf/cm2)
- Proof pressure1.5 MPa
- Temperature-20 to +70 °C
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac PGJ Plug Pin Reducing Straight Connector PGJ10-8D

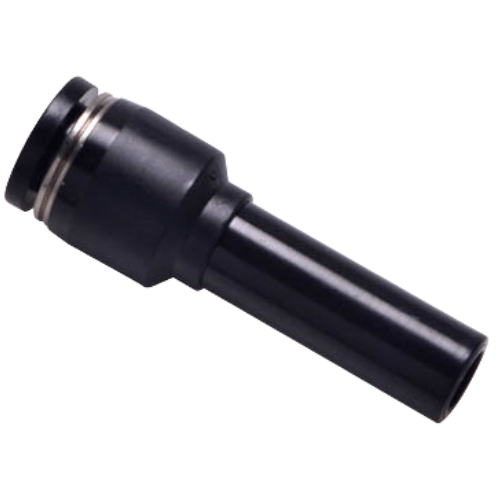

The PGJ10-8D is AirTAC's plug-in reducer, a tube-to-tube union that joins a Dia 10 mm line on one side to a Dia 8 mm line on the other. Unlike every male or female connector in the range, it has no threaded stud at all: both ends are one-touch sockets, so the reduction happens without a threaded joint, without thread sealant and without the extra leak path a stud introduces. The D suffix gives it a black body rather than the standard grey.
This is the resin one-touch profile, not the metal BP line: working pressure 0-1.0 MPa (0-10 kgf/cm2), vacuum down to -750 mmHg (10 Torr), proof pressure 1.5 MPa and a service temperature of -20 to +70 C. Push each tube firmly into its socket until it bottoms out - the stainless spring gasket and the POM chuck grip the OD - and press the release ring to free it again. Soft nylon or polyurethane tubing only, and each end must be exactly 10 mm and exactly 8 mm OD.
Airtac PGJ Plug Pin Reducing Straight Connector PGJ10-8D Technical Specifications
| Model | Airtac PGJ Plug Pin Reducing Straight Connector PGJ10-8D |
|---|---|
| Type | Plug-in reducer |
| Series | PGJ |
| Connection | Push-in one-touch |
| Working pressure | 0 - 1.0 MPa (0 - 10 kgf/cm2) |
|---|---|
| Negative pressure | -750 mmHg (10 Torr) |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Applicable tubing | Soft nylon or polyurethane tube |
| Thread standard | PT (Rc tapered) unless the code says otherwise |
POM release button and chuck, aluminium-alloy guide, stainless spring gasket, NBR O-ring; body brass or PBT depending on the part. AirTAC publishes flow as a characteristic curve rather than a single figure, so no L/min value is listed.
Model Code: Airtac PGJ Plug Pin Reducing Straight Connector PGJ10-8D
| PGJ | Plug-in reducer. |
|---|---|
| 4 / 6 / 8 / 10 / 12 | Tube outside diameter in mm (3.2 mm exists on the mini series). |
| M5 / 01 / 02 / 03 / 04 | Thread: M5x0.8, 1/8", 1/4", 3/8", 1/2" (M3 on the mini series). |
| D | Black. Blank = grey. |
Fitting & Sealing Notes
- check Cut the tube square and clean before pushing it home, or the seal will leak.
- check Push until it stops, then pull back to check the chuck has gripped.
- check To release, press the collet ring fully in and pull the tube out.
- check Threaded parts arrive with sealant on the thread; M5 sizes use a sealing gasket.
- check Match the tube OD exactly - a 6 mm fitting will not hold 1/4" tube.
Where the Airtac PGJ Plug Pin Reducing Straight Connector PGJ10-8D Is Used
Packaging machine cylinder feed
A 10 mm trunk feeding a packaging conveyor's gripper cylinders often needs to land on an 8 mm cylinder port. PGJ10-8D makes that step inline in the loom, with no stud to wind sealant onto and no extra hex to find space for behind the guarding.
Pick-and-place vacuum drop
On an end-of-arm suction tool, a 10 mm vacuum line descending to an 8 mm suction-cup branch is a common step. Rated to -750 mmHg, the fitting holds the reduced side under full vacuum without a threaded interface to draw air through.
Workshop air drop reduction
Where a workshop bench drop is plumbed in 10 mm polyurethane but the tool or air gun at the end runs on 8 mm hose, this reducer changes size once, at the point of use, and can be released and re-plumbed when the layout changes.
Is the Airtac PGJ Plug Pin Reducing Straight Connector PGJ10-8D the Right Part?
Step down or up one rung at a time in the PGJ ladder. The size below is the PGJ8-6, which takes an 8 mm feed down to 6 mm for small cylinders and pilot lines; the size above is the PGJ12-10, which carries a 12 mm trunk into a 10 mm branch. Each step narrows the bore, so flow falls with it - if your actuator is starving, step back up rather than adding fittings. If you actually need to break into a threaded port, a PC male connector paired with a PG union does a different job; PGJ exists precisely so you can avoid that joint.
Match the sizes to the tubing, never to a nominal conversion: a Dia 8 socket will not hold 5/16 inch or 1/4 inch tube, and a Dia 10 socket will not hold 3/8 inch. OD is the only measure that matters.
Quick checklist
- ✓ Tube outside diameter matches exactly
- ✓ Thread size and standard match the port
- ✓ Working pressure within 0 - 1.0 MPa (0 - 10 kgf/cm2)
- ✓ Temperature within -20 to +70 °C
Airtac PGJ Plug Pin Reducing Straight Connector PGJ10-8D FAQ
It is a plug-in reducer joining Dia 10 mm tube to Dia 8 mm tube, with no threaded port. Working pressure 0-1.0 MPa (0-10 kgf/cm2), vacuum to -750 mmHg (10 Torr), proof pressure 1.5 MPa, operating temperature -20 to +70 C. Body is black (D suffix) resin with a POM release button and chuck, aluminium-alloy guide, stainless spring gasket and NBR O-ring. Use soft nylon or polyurethane tubing.
Not with this part on its own - both PGJ ends are tube sockets, so the 8 mm side must end in 8 mm tube or in another fitting that accepts 8 mm tube. If you need the reduction to happen at a threaded port instead, step to a threaded reducer such as the PKD branch family or pair a PC male connector with a PG different-diameter union. Keep the reduction as a pure tube joint wherever you can: fewer threads means fewer sealant joints to maintain.
