Airtac PHF Tandem Toggle Joint PHF601
The AirTAC Airtac PHF Tandem Toggle Joint PHF601 is a genuine universal female elbow for push-in tube connection, rated 0 - 1.0 MPa (0 - 10 kgf/cm2) with a 1.5 MPa proof pressure.
- TypeUniversal female elbow
- SeriesPHF
- Working pressure0 - 1.0 MPa (0 - 10 kgf/cm2)
- Proof pressure1.5 MPa
- Temperature-20 to +70 °C
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac PHF Tandem Toggle Joint PHF601

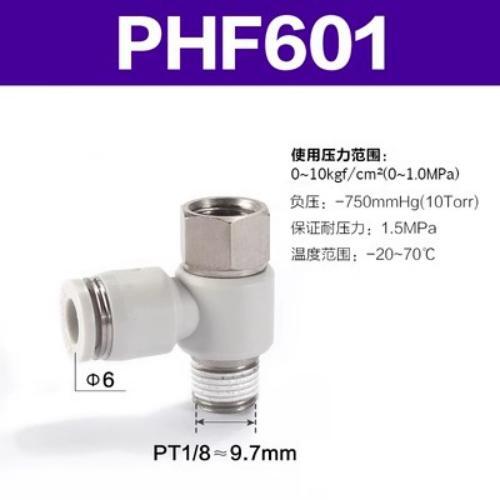

The PHF601 is an AirTAC PHF universal female elbow, a one-touch fitting that joins Dia 6 mm soft nylon or polyurethane tubing to a 1/8 in PT female thread. Unlike a fixed PL elbow, the universal joint lets the threaded end swivel, so the elbow can be oriented to match the tube run rather than forcing the tube around a hard corner. Push the tube into the collet and the stainless spring gasket and POM chuck grip it instantly; press the release ring and it slides back out.
This is a resin-series part: POM button and chuck, aluminium-alloy guide, brass/PBT threaded parts with an NBR O-ring. It is rated 0-1.0 MPa working pressure, 1.5 MPa proof, -20 to +70 C, and it also holds -750 mmHg vacuum, so the same fitting can serve a vacuum pick line and a pressure line. The 1/8 in thread arrives with sealant already applied.
Airtac PHF Tandem Toggle Joint PHF601 Technical Specifications
| Model | Airtac PHF Tandem Toggle Joint PHF601 |
|---|---|
| Type | Universal female elbow |
| Series | PHF |
| Connection | Push-in one-touch |
| Working pressure | 0 - 1.0 MPa (0 - 10 kgf/cm2) |
|---|---|
| Negative pressure | -750 mmHg (10 Torr) |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Applicable tubing | Soft nylon or polyurethane tube |
| Thread standard | PT (Rc tapered) unless the code says otherwise |
POM release button and chuck, aluminium-alloy guide, stainless spring gasket, NBR O-ring; body brass or PBT depending on the part. AirTAC publishes flow as a characteristic curve rather than a single figure, so no L/min value is listed.
Model Code: Airtac PHF Tandem Toggle Joint PHF601
| PHF | Universal female elbow. |
|---|---|
| 4 / 6 / 8 / 10 / 12 | Tube outside diameter in mm (3.2 mm exists on the mini series). |
| M5 / 01 / 02 / 03 / 04 | Thread: M5x0.8, 1/8", 1/4", 3/8", 1/2" (M3 on the mini series). |
| D | Black. Blank = grey. |
Fitting & Sealing Notes
- check Cut the tube square and clean before pushing it home, or the seal will leak.
- check Push until it stops, then pull back to check the chuck has gripped.
- check To release, press the collet ring fully in and pull the tube out.
- check Threaded parts arrive with sealant on the thread; M5 sizes use a sealing gasket.
- check Match the tube OD exactly - a 6 mm fitting will not hold 1/4" tube.
Where the Airtac PHF Tandem Toggle Joint PHF601 Is Used
Solenoid manifold on a packaging machine
Packaging machines often mount solenoid islands with male 1/8 in ports facing awkward directions. The female thread on the PHF601 screws straight onto the existing stud and the swivelling elbow turns to face wherever the Dia 6 line needs to run, with no extra street elbow in between.
Pick-and-place gripper lines
On a robotic pick-and-place end effector, small pneumatic grippers sit close to the wrist joint where straight fittings foul the moving parts. The Dia 6 bore matches the short gripper supply lines, and the universal elbow angles the tube away from the mechanism without kinking it each cycle.
Bench-top vacuum pick station
Lab and small-batch assembly benches use venturi vacuum generators fed by 6 mm tube. The PHF601 is rated down to -750 mmHg as well as 1.0 MPa, so one fitting handles both the vacuum side and the compressed-air side of the same station, swivelled to suit the generator ports.
Is the Airtac PHF Tandem Toggle Joint PHF601 the Right Part?
On the PHF ladder at 1/8 in, Dia 6 sits between the smallest option, PHF401 (Dia 4), and PHF801 (Dia 8). Stepping to Dia 4 buys routing freedom in very tight builds; stepping to Dia 8 lowers restriction on runs feeding larger cylinders or longer tube lengths. If you need more bore again, note that PHF only reaches Dia 6 on 1/8 in - the next step up in flow means moving the thread to 1/4 in, where PHF runs from Dia 6 to Dia 10.
Match the thread to the port, not the other way round: the female thread lets you screw the fitting onto an existing male stud, which is why it is the usual choice on valve and cylinder ports that already carry a male boss. Tube OD must match exactly - a Dia 6 body will not seal on 1/4 in tube no matter how hard you push it.
Quick checklist
- ✓ Tube outside diameter matches exactly
- ✓ Thread size and standard match the port
- ✓ Working pressure within 0 - 1.0 MPa (0 - 10 kgf/cm2)
- ✓ Temperature within -20 to +70 °C
Airtac PHF Tandem Toggle Joint PHF601 FAQ
The PHF601 accepts Dia 6 mm soft nylon or polyurethane tube and has a 1/8 in PT female thread. Working pressure is 0-1.0 MPa (0-10 kgf/cm2), proof pressure is 1.5 MPa, it holds -750 mmHg (10 Torr) vacuum, and the temperature range is -20 to +70 C. The body is PBT with a POM chuck and release button, aluminium-alloy guide, stainless spring gasket and NBR O-ring.
No. That is the point of the PHF shape: the threaded end is a universal joint, so after screwing the fitting onto the male port you can pivot the tube-side body to the angle the line actually needs. Keep in mind the thread is PT only in this catalogue with sealant pre-applied, so do not plan on ordering a G or NPT variant - the swivel covers the alignment instead.
