Airtac PHV Hand Valve Connector PHV6BD
The AirTAC Airtac PHV Hand Valve Connector PHV6BD is a genuine finger valve (manual shut-off) for shutting compressed air off by hand at the point of use.
- TypeFinger valve (manual shut-off)
- SeriesPHV
- Working pressure0 - 1.0 MPa (0 - 10 kgf/cm2)
- Proof pressure1.5 MPa
- Temperature-20 to +70 °C
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac PHV Hand Valve Connector PHV6BD

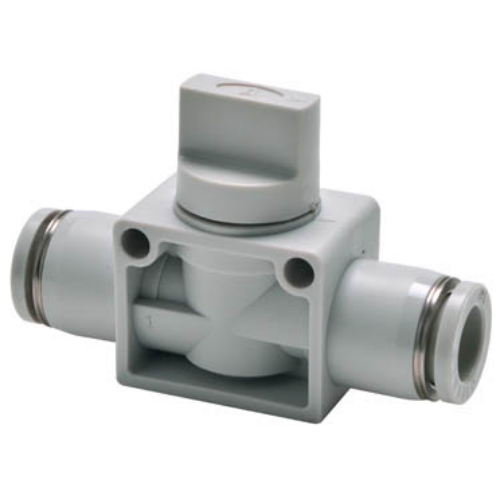

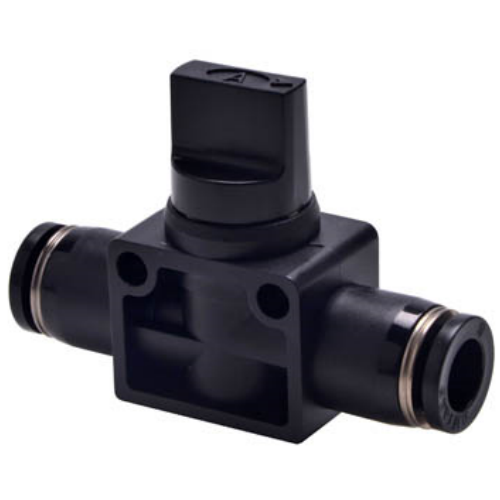

The PHV6BD is a manual finger valve, not a speed controller: a quarter turn of the body fully opens or fully closes the line, giving you a true shut-off point wherever a circuit needs isolating. This is the B version, the 2-port pattern - when you close it the passage simply blocks and the outlet side stays sealed, with nothing venting to atmosphere. It takes Dia 6 soft nylon or polyurethane tubing, and the D suffix means the body arrives in black rather than the standard grey.
Working pressure is 0-1.0 MPa with a 1.5 MPa proof rating, and the valve also holds vacuum down to -750 mmHg. One detail AirTAC calls out specifically: the PHV contains no brass anywhere in its construction, which is why it is the specified finger valve for copper-free environments such as electronics assembly and plating processes. Temperature window is -20 to +70 C.
Airtac PHV Hand Valve Connector PHV6BD Technical Specifications
| Model | Airtac PHV Hand Valve Connector PHV6BD |
|---|---|
| Type | Finger valve (manual shut-off) |
| Series | PHV |
| Adjustment | Quarter-turn knob |
| Orientation | Inline, tube to tube |
| Working pressure | 0 - 1.0 MPa (0 - 10 kgf/cm2) |
|---|---|
| Negative pressure | -750 mmHg (10 Torr) |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Applicable tubing | Soft nylon or polyurethane tube |
| Thread standard | PT (Rc tapered) unless the code says otherwise |
POM release button and chuck, aluminium-alloy guide, stainless spring gasket, NBR O-ring; body brass or PBT depending on the part. AirTAC publishes flow as a characteristic curve rather than a single figure, so no L/min value is listed.
Model Code: Airtac PHV Hand Valve Connector PHV6BD
| PHV | Finger valve (manual shut-off). |
|---|---|
| 4 / 6 / 8 / 10 / 12 | Tube outside diameter in mm (3.2 mm exists on the mini series). |
| M5 / 01 / 02 / 03 / 04 | Thread: M5x0.8, 1/8", 1/4", 3/8", 1/2" (M3 on the mini series). |
| A / B | A = 3-port (vents the outlet when shut). B = 2-port. |
| D | Black. Blank = grey. |
Fitting & Sealing Notes
- check Cut the tube square and clean before pushing it home, or the seal will leak.
- check Push until it stops, then pull back to check the chuck has gripped.
- check To release, press the collet ring fully in and pull the tube out.
- check Threaded parts arrive with sealant on the thread; M5 sizes use a sealing gasket.
- check Match the tube OD exactly - a 6 mm fitting will not hold 1/4" tube.
Where the Airtac PHV Hand Valve Connector PHV6BD Is Used
Air drop isolation on a cartoning machine
Shut off a single Dia 6 drop to swap a vacuum generator or cylinder without dumping the whole header - the 2-port body keeps downstream air held while you work.
Vacuum pick-and-place in an electronics lab
Rated to -750 mmHg and built with no brass in the flow path, the PHV6BD isolates small suction cup circuits handling PCBs without introducing copper into the process.
Fixture clamping on a copper-free plating line
The brass-free construction and black D-suffix body suit Dia 6 clamp circuits in plating and chemical areas where copper contamination would spoil the bath chemistry.
Is the Airtac PHV Hand Valve Connector PHV6BD the Right Part?
Dia 6 is the smallest tube size in the PHV ladder - 6, 8, 10 and 12 mm - so there is no smaller step; moving up to PHV8 gains bore for larger actuators but gives up the compact footprint that suits small grippers and lab circuits. Choose the B (2-port) pattern when downstream air should stay trapped on closing; the A (3-port) variant vents the outlet to atmosphere instead, which is the better choice when you want a line to dump safely during service. Remember the PHV has no throttle function at all - if you need to set actuator speed rather than just isolate, pair it with a PSL or PTL speed controller. Mount the valve close to the device being isolated so the dead volume between valve and actuator stays small.
Quick checklist
- ✓ Tube outside diameter matches exactly
- ✓ Thread size and standard match the port
- ✓ Working pressure within 0 - 1.0 MPa (0 - 10 kgf/cm2)
- ✓ Temperature within -20 to +70 °C
Airtac PHV Hand Valve Connector PHV6BD FAQ
Working pressure 0-1.0 MPa (0-10 kgf/cm2), proof pressure 1.5 MPa, vacuum capability -750 mmHg, temperature -20 to +70 C. This SKU is the Dia 6 tube size in the PHV family with PT port threads, finished in black as indicated by the D suffix, in the B 2-port pattern.
PHV6BD is 2-port: closing it blocks the passage and the downstream side stays sealed. The A version is 3-port and vents the outlet to atmosphere when shut, so trapped air escapes instead of being held. Pick B where the circuit must stay charged downstream of the valve, A where a vented outlet is safer during maintenance.
