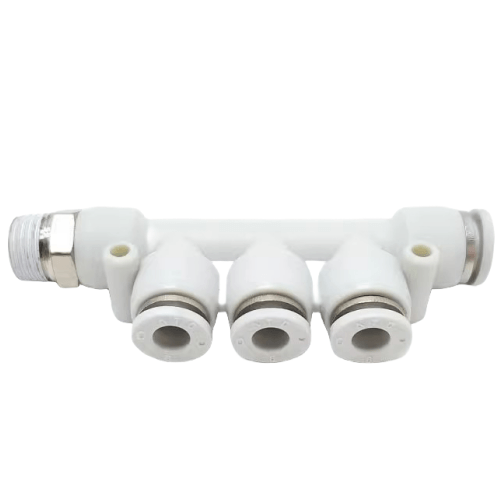

Airtac PKD Reducing Thread 5-Way Fitting PKD8-602
The AirTAC Airtac PKD Reducing Thread 5-Way Fitting PKD8-602 is a genuine male reducer triple branch for push-in tube connection, rated 0 - 1.0 MPa (0 - 10 kgf/cm2) with a 1.5 MPa proof pressure.
- TypeMale reducer triple branch
- SeriesPKD
- Working pressure0 - 1.0 MPa (0 - 10 kgf/cm2)
- Proof pressure1.5 MPa
- Temperature-20 to +70 °C
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac PKD Reducing Thread 5-Way Fitting PKD8-602
The AirTAC PKD8-602 is a male reducer triple branch, a one-touch fitting that combines a tee and a size reducer in a single brass-bodied part. A 1/4in PT male stud screws into the port, the Dia 8 run continues straight through the body, and a Dia 6 branch leaves at 90 degrees. Pushing soft nylon or PU tubing home past the stainless spring gasket seats it in the POM chuck, which grips the tube on pressure; pressing the release ring frees it again.
This is the resin and brass one-touch profile, not the metal BPC line: working pressure 0-1.0 MPa, vacuum down to -750 mmHg, proof pressure 1.5 MPa, and a temperature range of -20 to +70 C. The PT stud arrives with sealant already applied, so no tape is needed on the port. Reducing inside the fitting instead of adding a separate tee plus a reducer removes one joint and one potential leak point from the branch.
Airtac PKD Reducing Thread 5-Way Fitting PKD8-602 Technical Specifications
| Model | Airtac PKD Reducing Thread 5-Way Fitting PKD8-602 |
|---|---|
| Type | Male reducer triple branch |
| Series | PKD |
| Connection | Push-in one-touch |
| Working pressure | 0 - 1.0 MPa (0 - 10 kgf/cm2) |
|---|---|
| Negative pressure | -750 mmHg (10 Torr) |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Applicable tubing | Soft nylon or polyurethane tube |
| Thread standard | PT (Rc tapered) unless the code says otherwise |
POM release button and chuck, aluminium-alloy guide, stainless spring gasket, NBR O-ring; body brass or PBT depending on the part. AirTAC publishes flow as a characteristic curve rather than a single figure, so no L/min value is listed.
Model Code: Airtac PKD Reducing Thread 5-Way Fitting PKD8-602
| PKD | Male reducer triple branch. |
|---|---|
| 4 / 6 / 8 / 10 / 12 | Tube outside diameter in mm (3.2 mm exists on the mini series). |
| M5 / 01 / 02 / 03 / 04 | Thread: M5x0.8, 1/8", 1/4", 3/8", 1/2" (M3 on the mini series). |
| D | Black. Blank = grey. |
Fitting & Sealing Notes
- check Cut the tube square and clean before pushing it home, or the seal will leak.
- check Push until it stops, then pull back to check the chuck has gripped.
- check To release, press the collet ring fully in and pull the tube out.
- check Threaded parts arrive with sealant on the thread; M5 sizes use a sealing gasket.
- check Match the tube OD exactly - a 6 mm fitting will not hold 1/4" tube.
Where the Airtac PKD Reducing Thread 5-Way Fitting PKD8-602 Is Used
Manifold branch on a packaging machine
A valve manifold on a form-fill-seal machine runs Dia 8 tube along the valve bank; the PKD8-602 branches off in Dia 6 to feed a small bag-clamp cylinder without an extra reducer joint.
Pick-and-place gripper feed
On an electronics pick-and-place cell, the Dia 8 vacuum-ejector supply line branches through the PKD8-602 down to Dia 6 tubing routed to a compact gripper block inside the gantry.
Conveyor reject-gate takeoff
A bottle-line inspection station taps Dia 6 air for its reject pusher off the Dia 8 conveyor-gate supply run, using the 1/4in PT stud to land directly on the solenoid valve outlet.
Is the Airtac PKD Reducing Thread 5-Way Fitting PKD8-602 the Right Part?
PKD is a deliberately short ladder: AirTAC makes exactly three sizes, PKD6-401, this PKD8-602 and PKD10-803. Stepping down to PKD6-401 gives a Dia 6 run with a Dia 4 branch on a 1/8in stud, suited to smaller signal or pilot lines; stepping up to PKD10-803 gives a Dia 10 run with a Dia 8 branch and a 3/8in stud for larger main feeds. If your branch does not need a reduced bore, a standard PED male run tee in matching sizes is the simpler choice.
Match the 1/4in PT stud to ports threaded PT 1/4, and remember the tube side is unforgiving on OD: the Dia 6 branch accepts Dia 6 tubing only and will not hold 1/4in or 5/16in imperial tube, however close it looks. The Dia 8 run is likewise Dia 8 only.
Quick checklist
- ✓ Tube outside diameter matches exactly
- ✓ Thread size and standard match the port
- ✓ Working pressure within 0 - 1.0 MPa (0 - 10 kgf/cm2)
- ✓ Temperature within -20 to +70 °C
Airtac PKD Reducing Thread 5-Way Fitting PKD8-602 FAQ
The PKD8-602 is a male reducer triple branch with a Dia 8 mm straight run, a Dia 6 mm branch and a 1/4in PT male stud. It is the resin and brass one-touch profile: working pressure 0-1.0 MPa (0-10 kgf/cm2), negative pressure to -750 mmHg (10 Torr), proof pressure 1.5 MPa, and an operating temperature of -20 to +70 C. It accepts soft nylon or polyurethane tubing only, and the stud ships with sealant pre-applied.
No. AirTAC produces only three PKD variants: PKD6-401 (Dia 6 run, Dia 4 branch, 1/8in stud), PKD8-602 (this part, Dia 8 to Dia 6, 1/4in stud) and PKD10-803 (Dia 10 to Dia 8, 3/8in stud). For any other run/branch combination you would need a PED male run tee plus a PG different-diameter straight union, or a PKG reducer triple branch union, which is the threaded-free tube-to-tube equivalent.
