Airtac PLF L-Shaped Female Thread Adapter PLF402
The AirTAC Airtac PLF L-Shaped Female Thread Adapter PLF402 is a genuine female elbow for push-in tube connection, rated 0 - 1.0 MPa (0 - 10 kgf/cm2) with a 1.5 MPa proof pressure.
- TypeFemale elbow
- SeriesPLF
- Working pressure0 - 1.0 MPa (0 - 10 kgf/cm2)
- Proof pressure1.5 MPa
- Temperature-20 to +70 °C
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac PLF L-Shaped Female Thread Adapter PLF402

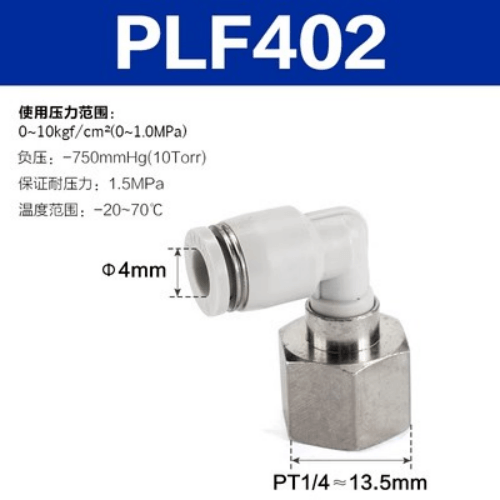

The PLF402 is an AirTAC PLF female elbow, a one-touch fitting that joins Dia 4 mm soft nylon or polyurethane tubing to a 1/4in PT female threaded port. The internal thread lets you screw the fitting onto a male stud or nipple with a spanner, while the elbow body turns the tube run through 90 degrees so the hose leaves sideways instead of standing proud of the port.
Connection is tool-free on the tube side: push the Dia 4 tube fully home and the stainless spring gasket and chuck inside the chuck assembly grip it for a sealed joint; press the POM release ring and the tube slides straight back out. This is the resin/brass profile, not the metal BP line: 0-1.0 MPa working pressure, -750 mmHg vacuum, 1.5 MPa proof pressure, and a service window of -20 to +70 C. The threaded body is PBT over a brass stud and arrives with sealant already applied to the thread, so no extra tape is needed at assembly.
Airtac PLF L-Shaped Female Thread Adapter PLF402 Technical Specifications
| Model | Airtac PLF L-Shaped Female Thread Adapter PLF402 |
|---|---|
| Type | Female elbow |
| Series | PLF |
| Connection | Push-in one-touch |
| Working pressure | 0 - 1.0 MPa (0 - 10 kgf/cm2) |
|---|---|
| Negative pressure | -750 mmHg (10 Torr) |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Applicable tubing | Soft nylon or polyurethane tube |
| Thread standard | PT (Rc tapered) unless the code says otherwise |
POM release button and chuck, aluminium-alloy guide, stainless spring gasket, NBR O-ring; body brass or PBT depending on the part. AirTAC publishes flow as a characteristic curve rather than a single figure, so no L/min value is listed.
Model Code: Airtac PLF L-Shaped Female Thread Adapter PLF402
| PLF | Female elbow. |
|---|---|
| 4 / 6 / 8 / 10 / 12 | Tube outside diameter in mm (3.2 mm exists on the mini series). |
| M5 / 01 / 02 / 03 / 04 | Thread: M5x0.8, 1/8", 1/4", 3/8", 1/2" (M3 on the mini series). |
| D | Black. Blank = grey. |
Fitting & Sealing Notes
- check Cut the tube square and clean before pushing it home, or the seal will leak.
- check Push until it stops, then pull back to check the chuck has gripped.
- check To release, press the collet ring fully in and pull the tube out.
- check Threaded parts arrive with sealant on the thread; M5 sizes use a sealing gasket.
- check Match the tube OD exactly - a 6 mm fitting will not hold 1/4" tube.
Where the Airtac PLF L-Shaped Female Thread Adapter PLF402 Is Used
Packaging machine sealing head
Feeding a small pneumatic cylinder on a carton sealing head where the 90 degree female elbow keeps the 4 mm tube flat against the bracket instead of fouling the moving jaw.
Pick-and-place gantry port
Connecting the pilot or actuator line on a gantry pick-and-place unit, where the internal 1/4in thread screws directly onto the male stud of a compact guided cylinder.
Lab vacuum transfer line
Routing a low-vacuum transfer line on a benchtop analyser: the fitting holds -750 mmHg (10 Torr), so a small vacuum draw through 4 mm polyurethane tube is within its rated window.
Is the Airtac PLF L-Shaped Female Thread Adapter PLF402 the Right Part?
Dia 4 is the smallest tube size this series is made in, so there is no size below it; the next step up is Dia 6, which gains bore for airflow on the same 1/4in port and suits runs feeding larger cylinders. On the thread side, 1/8in is the size below and 3/8in the size above, so check the male stud on your component before ordering. A female elbow is the right answer where the port is a male stud on a cylinder, valve or manifold and a straight connector would project into a guard or clash with a nearby hose.
Tube OD must match exactly: a Dia 4 fitting will not grip 6 mm tube, and it will not hold 1/4in (6.35 mm) hose either - the 1/4in in this part number describes the female thread only.
Quick checklist
- ✓ Tube outside diameter matches exactly
- ✓ Thread size and standard match the port
- ✓ Working pressure within 0 - 1.0 MPa (0 - 10 kgf/cm2)
- ✓ Temperature within -20 to +70 °C
Airtac PLF L-Shaped Female Thread Adapter PLF402 FAQ
Working pressure 0-1.0 MPa (0-10 kgf/cm2), negative pressure down to -750 mmHg (10 Torr), proof pressure 1.5 MPa, and a temperature range of -20 to +70 C. This SKU joins Dia 4 mm tubing to a 1/4in PT female thread. Use only soft nylon or polyurethane tube of exactly 4 mm OD.
No. The 1/4in in the part number is the female PT thread on the port side; the tube side grips only Dia 4 mm OD tubing. If your hose is 1/4in (6.35 mm) OD, it will not seal in this fitting - you need the Dia 6 size from the same series for 6 mm tube, and no imperial tube sizes are offered in this catalogue.
