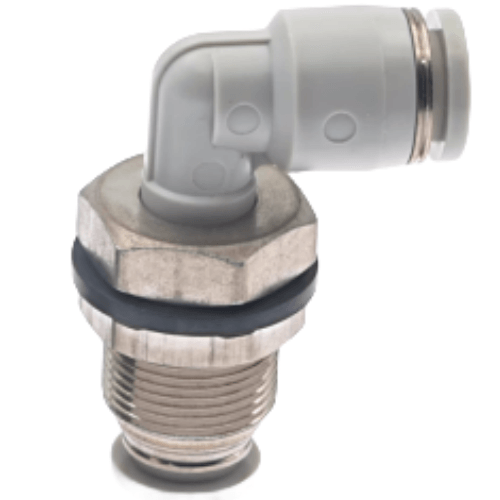

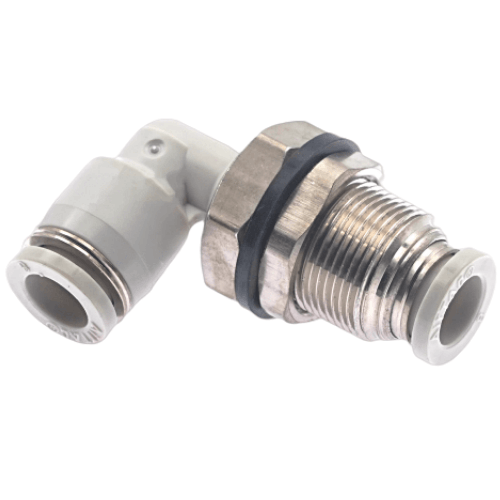

Airtac PLM Right Angle Bulkhead Fitting PLM4D
1. Available in multiple specifications and models, extensively compatible with diverse pneumatic systems;
2. Superior flow performance ensures equivalent flow capacity to standard pneumatic tubing;
3. Quick and easy tube insertion/removal design with secure and durable tube connections;
4. Threaded portion features pre-applied sealant, M5 metric threads with integrated sealing washers guarantee leak-proof threaded connections;
5. Nickel-plated body provides corrosion and contamination resistance for expanded application scope.
Category: Bulkhead Straight Fittings | Brand: Airtac | Series: PLM
AirTAC PLM4D Right-Angle Bulkhead Fitting Technical Details
- Model: PLM4D Series
- Type: Right-angle pneumatic bulkhead fitting with threaded panel mount
- Body material: Nickel-plated brass (standard), stainless steel optional
- Thread specifications: M5×0.8 (male) / G1/8 (female)
- Pressure rating: 0.05-1.5 MPa
- Temperature range: -20℃ to 80℃
- Seal material: NBR (standard), FKM/Viton® optional
- Installation torque: 0.4-0.6 N·m (panel mounting thread)
- Weight: 48g ±2g
- Dimensions: 32mm(L) × 20mm(W) × 28mm(H)
- Surface roughness: Ra ≤3.2μm (flow path)
- Leakage rate: ≤3 bubbles/min (under 0.5 MPa air pressure)
Precision-engineered right-angle connector enabling 90° pneumatic line routing through panels or machine walls. Features dual O-ring seals (dynamic and static) for leak-free operation in vibration-prone environments. The stepped thread design prevents over-tightening during installation.
- CNC machine tool pneumatic distribution panels
- Robotic arm end-effector air supply routing
- Packaging machinery sensor line connections
- Semiconductor fab equipment cabinet penetrations
- Hydraulic system pressure gauge installations
Installation protocol:
Always install with flow arrow aligned to system direction. Use backup wrench on hex flats during
assembly. Apply thread sealant only on male threads (Type A/B PTFE tape recommended). Perform
pressure test at 1.25× operating pressure after installation.
| Property | Property Value |
|---|---|
| sku | PLM4D |
| Port Size | <4mm> |
| Color Code | Black |
