Airtac PMF Female Thread Bulkhead Straight Through Fitting PMF1001D
The AirTAC Airtac PMF Female Thread Bulkhead Straight Through Fitting PMF1001D is a genuine bulkhead connector for push-in tube connection, rated 0 - 1.0 MPa (0 - 10 kgf/cm2) with a 1.5 MPa proof pressure.
- TypeBulkhead connector
- SeriesPMF
- Working pressure0 - 1.0 MPa (0 - 10 kgf/cm2)
- Proof pressure1.5 MPa
- Temperature-20 to +70 °C
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac PMF Female Thread Bulkhead Straight Through Fitting PMF1001D

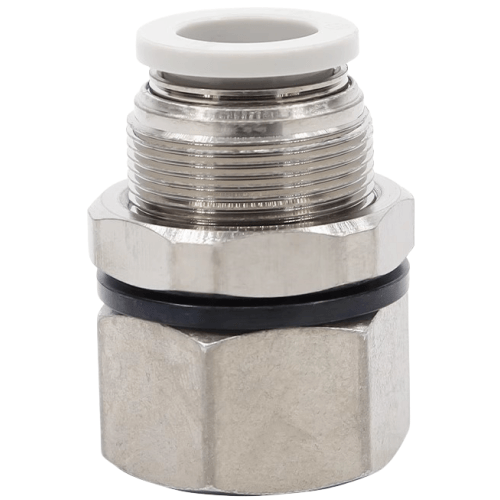

The PMF1001D is an AirTAC PMF bulkhead connector in black, built to carry Dia 10 mm soft nylon or polyurethane tube through a panel or enclosure wall and land on a 1/8 in male PT thread. The fitting body passes through a drilled hole and is clamped from behind by a locknut, so the one-touch chuck sits proud on the operator side where the tube can be pushed straight in and later released from the front.
Connection is standard one-touch: push the 10 mm tube home and the stainless spring gasket with the POM chuck grips it against the NBR O-ring; press the release ring to free it. This is the resin and brass spec profile, not the metal BPC line: working pressure 0-1.0 MPa (0-10 kgf/cm2), vacuum to -750 mmHg, proof pressure 1.5 MPa, temperature -20 to +70 C. The 1/8 in thread arrives with sealant pre-applied, so it seals into the port without extra tape. Note that on this black D version the entire PMF body is black, unlike the PC and POC straights where the D suffix changes only the release button.
Airtac PMF Female Thread Bulkhead Straight Through Fitting PMF1001D Technical Specifications
| Model | Airtac PMF Female Thread Bulkhead Straight Through Fitting PMF1001D |
|---|---|
| Type | Bulkhead connector |
| Series | PMF |
| Connection | Push-in one-touch |
| Working pressure | 0 - 1.0 MPa (0 - 10 kgf/cm2) |
|---|---|
| Negative pressure | -750 mmHg (10 Torr) |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Applicable tubing | Soft nylon or polyurethane tube |
| Thread standard | PT (Rc tapered) unless the code says otherwise |
POM release button and chuck, aluminium-alloy guide, stainless spring gasket, NBR O-ring; body brass or PBT depending on the part. AirTAC publishes flow as a characteristic curve rather than a single figure, so no L/min value is listed.
Model Code: Airtac PMF Female Thread Bulkhead Straight Through Fitting PMF1001D
| PMF | Bulkhead connector. |
|---|---|
| 4 / 6 / 8 / 10 / 12 | Tube outside diameter in mm (3.2 mm exists on the mini series). |
| M5 / 01 / 02 / 03 / 04 | Thread: M5x0.8, 1/8", 1/4", 3/8", 1/2" (M3 on the mini series). |
| D | Black. Blank = grey. |
Fitting & Sealing Notes
- check Cut the tube square and clean before pushing it home, or the seal will leak.
- check Push until it stops, then pull back to check the chuck has gripped.
- check To release, press the collet ring fully in and pull the tube out.
- check Threaded parts arrive with sealant on the thread; M5 sizes use a sealing gasket.
- check Match the tube OD exactly - a 6 mm fitting will not hold 1/4" tube.
Where the Airtac PMF Female Thread Bulkhead Straight Through Fitting PMF1001D Is Used
Control cabinet pass-through on a bottling line
Bring the 10 mm supply tube through the side wall of the machine's electrical cabinet to a front-panel fitting, so airlines stay out of the wiring ducts and can be serviced without opening the enclosure.
Pneumatic door interlock on a bakery proofer
Mount the connector through the proofer's stainless outer panel and run 10 mm polyurethane tube to the door cylinder; the one-touch release lets maintenance swap the door line from outside the warm, humid chamber.
Air knife feed on a tray-packaging conveyor
Feed a 10 mm blast tube to a small air knife that clears crumbs and film trim from the belt, with the bulkhead fitting fixed to the guard panel so the tube cannot snag moving product.
Is the Airtac PMF Female Thread Bulkhead Straight Through Fitting PMF1001D the Right Part?
Step down to the PMF801 if the line you are bringing through the wall is an 8 mm circuit feeding lighter loads, or up to the PMF1002 if the downstream port is a 1/4 in connection; the tube bore stays the same and only the male thread changes. On the bulkhead family the panel-side locknut thread also scales with the tube: Dia 10 uses an M20x1 locknut, so drill the wall cut-out for that, not for the 1/8 in process thread.
Match the 1/8 in PT thread to the port before ordering, and check the wall thickness against the stud length. If you need the connection angled rather than passing straight through a wall, the PL male elbow or PH universal elbow is the better shape; a bulkhead connector earns its place only where the tube genuinely has to cross a panel and stay serviceable from the front.
Quick checklist
- ✓ Tube outside diameter matches exactly
- ✓ Thread size and standard match the port
- ✓ Working pressure within 0 - 1.0 MPa (0 - 10 kgf/cm2)
- ✓ Temperature within -20 to +70 °C
Airtac PMF Female Thread Bulkhead Straight Through Fitting PMF1001D FAQ
Working pressure 0-1.0 MPa (0-10 kgf/cm2), negative pressure to -750 mmHg, proof pressure 1.5 MPa, operating temperature -20 to +70 C. It joins Dia 10 mm soft nylon or polyurethane tube on one side and a 1/8 in PT male thread on the other, and the bulkhead locknut for Dia 10 tube is M20x1. The thread ships with sealant pre-applied.
No. The chuck and O-ring in the PMF1001D are sized for exactly Dia 10 mm tube; a 12 mm tube will not seat and a reduced 3/8 in tube will blow off under pressure. If your circuit is 8 mm use the PMF801, and if it is 12 mm step up in the PMF ladder rather than forcing the wrong tube into this body.
