Airtac PP Pipe Plug PP10D
The AirTAC Airtac PP Pipe Plug PP10D is a genuine plug for push-in tube connection, rated 0 - 1.0 MPa (0 - 10 kgf/cm2) with a 1.5 MPa proof pressure.
- TypePlug
- SeriesPP
- Working pressure0 - 1.0 MPa (0 - 10 kgf/cm2)
- Proof pressure1.5 MPa
- Temperature-20 to +70 °C
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac PP Pipe Plug PP10D

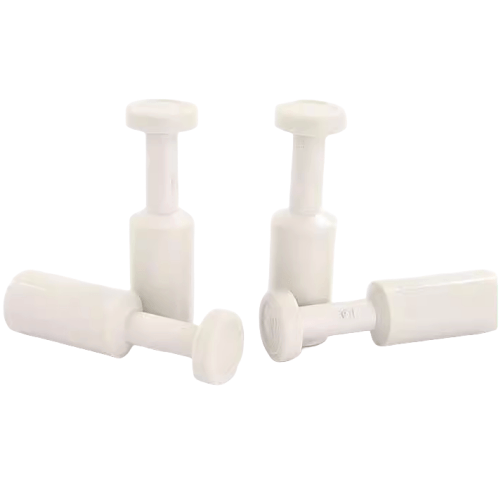

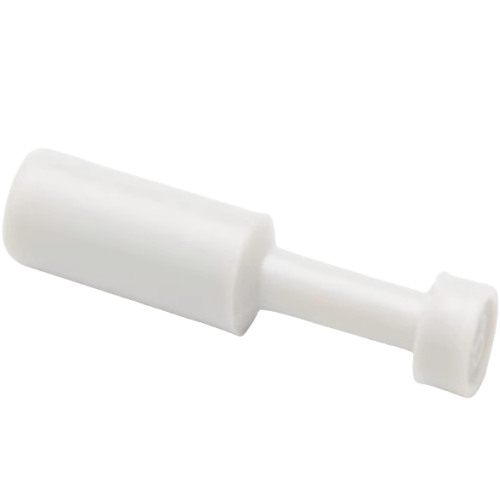

The PP10D is an AirTAC PP plug, a one-touch cap that seals an unused Dia 10 mm push-in port. It carries no thread at all: instead of a stud, the whole body is a plug that pushes into the socket of any Dia 10 one-touch fitting, where the internal chuck grips it exactly as it would grip a tube and the spring gasket plus NBR O-ring close the port. Press the release ring on the host fitting and the plug drops out, so a capped port can be brought back into service in seconds.
This is the D variant, which on the PP series means the body itself is moulded in black rather than the standard grey - unlike on PC and POC connectors, where the D only changes the release button. The plug belongs to AirTAC's resin/brass one-touch profile: working pressure 0-1.0 MPa (0-10 kgf/cm2), vacuum to -750 mmHg (10 Torr), proof pressure 1.5 MPa, and a service temperature of -20 to +70 C. The POM release and chuck parts, aluminium-alloy guide and stainless spring gasket are the same hardware AirTAC uses across its resin one-touch line.
Airtac PP Pipe Plug PP10D Technical Specifications
| Model | Airtac PP Pipe Plug PP10D |
|---|---|
| Type | Plug |
| Series | PP |
| Connection | Push-in one-touch |
| Working pressure | 0 - 1.0 MPa (0 - 10 kgf/cm2) |
|---|---|
| Negative pressure | -750 mmHg (10 Torr) |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Applicable tubing | Soft nylon or polyurethane tube |
| Thread standard | PT (Rc tapered) unless the code says otherwise |
POM release button and chuck, aluminium-alloy guide, stainless spring gasket, NBR O-ring; body brass or PBT depending on the part. AirTAC publishes flow as a characteristic curve rather than a single figure, so no L/min value is listed.
Model Code: Airtac PP Pipe Plug PP10D
| PP | Plug. |
|---|---|
| 4 / 6 / 8 / 10 / 12 | Tube outside diameter in mm (3.2 mm exists on the mini series). |
| M5 / 01 / 02 / 03 / 04 | Thread: M5x0.8, 1/8", 1/4", 3/8", 1/2" (M3 on the mini series). |
| D | Black. Blank = grey. |
Fitting & Sealing Notes
- check Cut the tube square and clean before pushing it home, or the seal will leak.
- check Push until it stops, then pull back to check the chuck has gripped.
- check To release, press the collet ring fully in and pull the tube out.
- check Threaded parts arrive with sealant on the thread; M5 sizes use a sealing gasket.
- check Match the tube OD exactly - a 6 mm fitting will not hold 1/4" tube.
Where the Airtac PP Pipe Plug PP10D Is Used
Capping spare outlets on a valve island
A packaging line's control cabinet carries a five-station valve manifold but only three stations are piped out; PP10D plugs seal the two spare Dia 10 outlets so the island can hold pressure without leaking dust or losing vacuum.
Pressure testing before final tubing
On a new assembly machine build, the Dia 10 trunk lines from the FRL are proven at 0.6 MPa with PP10D plugs in place of the last cylinder drops, catching leaks before the actuators are ever connected.
Sealing ports during machine wash-down
A food conveyor's gripper circuit is reworked between shifts; unplugged Dia 10 fittings on the end effector would admit wash water and caustic foam, so PP10D black plugs close every open port until the new tubing is fitted.
Is the Airtac PP Pipe Plug PP10D the Right Part?
Step down to PP8 or up to PP12 to match the host fitting: a Dia 10 plug only seats in a Dia 10 one-touch socket, just as a Dia 6 tube will not hold in a Dia 8 fitting. The plug must always be ordered to the tube OD of the port being capped, never to any thread size, because the PP series has no thread to match. If you need to seal a threaded port instead, that is a threaded plug or blanking screw, not this part.
A plug is the right answer whenever a manifold or valve island has spare outlets: cap them during commissioning so the circuit can be pressure-tested before the final actuator tubing is run, or cap them permanently on machines where a future option may be wired in later. On resin-line circuits rated to 1.0 MPa and 70 C, the PP10D is the correct cap; for hot circuits up to 150 C you would need the metal BP family instead, and AirTAC does not list a metal plug equivalent, so verify the temperature there.
Quick checklist
- ✓ Tube outside diameter matches exactly
- ✓ Thread size and standard match the port
- ✓ Working pressure within 0 - 1.0 MPa (0 - 10 kgf/cm2)
- ✓ Temperature within -20 to +70 °C
Airtac PP Pipe Plug PP10D FAQ
The PP10D is an AirTAC PP one-touch plug for a Dia 10 mm tube-size port, with no thread. It runs on the resin one-touch profile: working pressure 0-1.0 MPa (0-10 kgf/cm2), negative pressure to -750 mmHg (10 Torr), proof pressure 1.5 MPa, temperature -20 to +70 C. The D suffix gives a black body; the release and chuck are POM, the guide is aluminium alloy, the spring gasket is stainless and the seal is an NBR O-ring. It suits soft nylon or polyurethane tube sizes on the host fitting.
Yes. The plug pushes into the host fitting's socket and the same stainless spring gasket and chuck mechanism that grips a nylon or PU tube seals around the plug body, so a capped port holds full working pressure and vacuum. Press the release ring on the host fitting and the plug pops out cleanly, so the port can be re-tubed later without damaging the fitting - there is no thread to unwind and no sealant to clean off.
