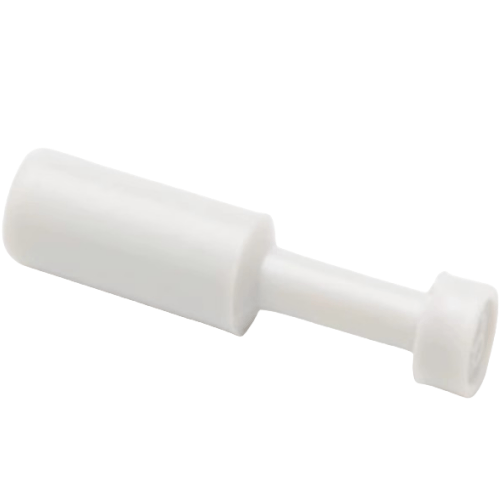

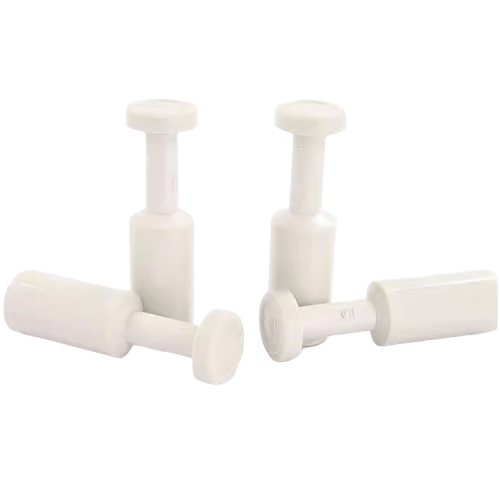

Airtac PP Pipe Plug PP6
The AirTAC Airtac PP Pipe Plug PP6 is a genuine plug for push-in tube connection, rated 0 - 1.0 MPa (0 - 10 kgf/cm2) with a 1.5 MPa proof pressure.
- TypePlug
- SeriesPP
- Working pressure0 - 1.0 MPa (0 - 10 kgf/cm2)
- Proof pressure1.5 MPa
- Temperature-20 to +70 °C
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac PP Pipe Plug PP6
The AirTAC PP6 is a one-touch straight union, the simplest member of AirTAC's tube-to-tube resin fitting range. It has no thread at all: both ports are Dia 6 mm tube sockets, so its only job is to splice two lengths of 6 mm soft nylon or polyurethane tubing into one continuous, straight run. Push the tube home and the internal chuck grips the OD; press the POM release ring and the tube slides straight back out.
Because PP6 belongs to the resin/brass one-touch profile, it is rated 0-1.0 MPa (0-10 kgf/cm2) working pressure, 1.5 MPa proof, and -20 to +70 C, and it also holds -750 mmHg (10 Torr) on vacuum lines. The body is moulded resin with a POM release button and an NBR seal; no thread means no sealant, tape or gasket anywhere on this part.
Airtac PP Pipe Plug PP6 Technical Specifications
| Model | Airtac PP Pipe Plug PP6 |
|---|---|
| Type | Plug |
| Series | PP |
| Connection | Push-in one-touch |
| Working pressure | 0 - 1.0 MPa (0 - 10 kgf/cm2) |
|---|---|
| Negative pressure | -750 mmHg (10 Torr) |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Applicable tubing | Soft nylon or polyurethane tube |
| Thread standard | PT (Rc tapered) unless the code says otherwise |
POM release button and chuck, aluminium-alloy guide, stainless spring gasket, NBR O-ring; body brass or PBT depending on the part. AirTAC publishes flow as a characteristic curve rather than a single figure, so no L/min value is listed.
Model Code: Airtac PP Pipe Plug PP6
| PP | Plug. |
|---|---|
| 4 / 6 / 8 / 10 / 12 | Tube outside diameter in mm (3.2 mm exists on the mini series). |
| M5 / 01 / 02 / 03 / 04 | Thread: M5x0.8, 1/8", 1/4", 3/8", 1/2" (M3 on the mini series). |
| D | Black. Blank = grey. |
Fitting & Sealing Notes
- check Cut the tube square and clean before pushing it home, or the seal will leak.
- check Push until it stops, then pull back to check the chuck has gripped.
- check To release, press the collet ring fully in and pull the tube out.
- check Threaded parts arrive with sealant on the thread; M5 sizes use a sealing gasket.
- check Match the tube OD exactly - a 6 mm fitting will not hold 1/4" tube.
Where the Airtac PP Pipe Plug PP6 Is Used
Pick-and-place gripper line splice
On a benchtop pick-and-place arm, a 6 mm PU feed line that runs short is easiest extended by pushing both cut ends into a PP6 union rather than re-plumbing back to the valve manifold.
Vacuum suction line repair
A cracked run of 6 mm tubing feeding a suction-cup manifold on a small PCB handling cell can be spliced with PP6 because the union holds -750 mmHg (10 Torr) without leaking.
FRL outlet to flow-control valve
On a packaging machine's air prep branch, PP6 joins the 6 mm nylon drop from the filter-regulator outlet to the inlet side of an inline flow-control valve in a straight, serviceable link.
Is the Airtac PP Pipe Plug PP6 the Right Part?
Step down to PU4 or up to PU8 to follow your tube ladder - the fitting grows with the bore, so an 8 mm union simply moves more air per metre of run. If the line itself narrows from 6 mm to 4 mm, keep the splice single-piece by using the PG6-4 different-diameter straight instead of two unions and an adapter. On a vacuum leg, remember PP6 is rated to -750 mmHg, so a suction-line splice does not force you onto a metal fitting.
Tube OD must match exactly: PP6 grips 6.0 mm tubing only. A 1/4 inch (6.35 mm) tube looks close but will not seat in the chuck, and a 6 mm union will not accept 8 mm tube no matter how hard it is pushed.
Quick checklist
- ✓ Tube outside diameter matches exactly
- ✓ Thread size and standard match the port
- ✓ Working pressure within 0 - 1.0 MPa (0 - 10 kgf/cm2)
- ✓ Temperature within -20 to +70 °C
Airtac PP Pipe Plug PP6 FAQ
Working pressure 0-1.0 MPa (0-10 kgf/cm2), proof pressure 1.5 MPa, negative pressure -750 mmHg (10 Torr), temperature -20 to +70 C. Size: both ends accept 6 mm OD soft nylon or polyurethane tube; there is no threaded port on this part. Release button and chuck are POM, the seal is NBR.
No. A straight union grips one OD on both sides, so PP6 is 6 mm to 6 mm only. For a change of bore in one part use the AirTAC PG different-diameter straight (for example PG6-4 or PG8-6), which keeps the same one-touch push-in action.
Authorized Export Seller
Genuine AirTAC parts produced by AirTAC factory.
1-Year Warranty
Covers non-human-caused product damage.
Fast Dispatch
Standard parts are processed and dispatched in 3-5 business days.
Fast Reply
Most inquiries answered within 7-8 hours.
