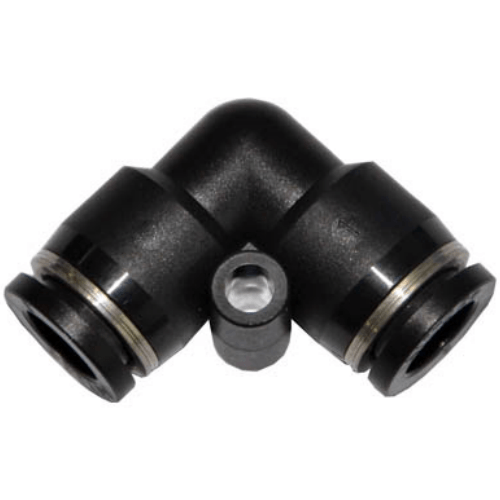

Airtac PV Series L-Type Elbow Fitting PV10D
The AirTAC Airtac PV Series L-Type Elbow Fitting PV10D is a genuine union elbow for push-in tube connection, rated 0 - 1.0 MPa (0 - 10 kgf/cm2) with a 1.5 MPa proof pressure.
- TypeUnion elbow
- SeriesPV
- Working pressure0 - 1.0 MPa (0 - 10 kgf/cm2)
- Proof pressure1.5 MPa
- Temperature-20 to +70 °C
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac PV Series L-Type Elbow Fitting PV10D
The PV10D is an AirTAC PV series union elbow - a one-touch fitting that joins two lengths of Dia 10 mm tube at a right angle with no threaded port in between. Push each tube into its socket until it bottoms out and the stainless spring gasket and chuck grip it; press the POM release ring to free it again. Because it is a single-piece elbow rather than two straight unions meeting in a corner, there is one fewer joint in the line and no chance of the two halves unscrewing from each other under vibration.
This is the resin/brass spec profile: 0-1.0 MPa working pressure, -750 mmHg vacuum, 1.5 MPa proof pressure and -20 to +70 C with soft nylon or polyurethane tubing. The D suffix makes the body black instead of the standard grey - useful where a dark fitting hides better against machine frames and cable bundles. Internally you get a POM chuck and release ring, an aluminium-alloy guide, a stainless spring gasket and an NBR O-ring on each side.
Airtac PV Series L-Type Elbow Fitting PV10D Technical Specifications
| Model | Airtac PV Series L-Type Elbow Fitting PV10D |
|---|---|
| Type | Union elbow |
| Series | PV |
| Connection | Push-in one-touch |
| Working pressure | 0 - 1.0 MPa (0 - 10 kgf/cm2) |
|---|---|
| Negative pressure | -750 mmHg (10 Torr) |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Applicable tubing | Soft nylon or polyurethane tube |
| Thread standard | PT (Rc tapered) unless the code says otherwise |
POM release button and chuck, aluminium-alloy guide, stainless spring gasket, NBR O-ring; body brass or PBT depending on the part. AirTAC publishes flow as a characteristic curve rather than a single figure, so no L/min value is listed.
Model Code: Airtac PV Series L-Type Elbow Fitting PV10D
| PV | Union elbow. |
|---|---|
| 4 / 6 / 8 / 10 / 12 | Tube outside diameter in mm (3.2 mm exists on the mini series). |
| M5 / 01 / 02 / 03 / 04 | Thread: M5x0.8, 1/8", 1/4", 3/8", 1/2" (M3 on the mini series). |
| D | Black. Blank = grey. |
Fitting & Sealing Notes
- check Cut the tube square and clean before pushing it home, or the seal will leak.
- check Push until it stops, then pull back to check the chuck has gripped.
- check To release, press the collet ring fully in and pull the tube out.
- check Threaded parts arrive with sealant on the thread; M5 sizes use a sealing gasket.
- check Match the tube OD exactly - a 6 mm fitting will not hold 1/4" tube.
Where the Airtac PV Series L-Type Elbow Fitting PV10D Is Used
Packaging carousel valve drop
Turning a 10 mm supply line 90 degrees into a rotary indexing table's valve manifold, where a rigid right-angle turn saves the tubing from chafing on the rotating frame edge.
Robot arm internal routing
Joining two 10 mm nylon runs inside a pick-and-place gantry's hollow arm section, where the black body disappears against the cable loom and the elbow clears the pivot's swept volume.
Machine rebuild corner joint
Splicing an existing 10 mm polyurethane line around a newly added sensor bracket on a retrofit press, without cutting the tube back to a threaded port or adding a second fitting.
Is the Airtac PV Series L-Type Elbow Fitting PV10D the Right Part?
Dia 10 sits near the top of the PV ladder. Step down to PV8 when the line feeds a smaller actuator or you want a tighter bend radius in a crowded route; step up to PV12 for trunk lines feeding manifolds or larger cylinders, where the wider bore lowers restriction on longer runs. Both neighbours exist in this series, so resizing is a simple part-number change.
Being a union, the PV10D has no thread to match - it floats wherever your tubing puts it, which makes it the right answer for turning a 10 mm run through 90 degrees mid-route. The one rule that matters: tube OD must match exactly. A Dia 10 socket will not seal on 12 mm or on 3/8 inch tube, and the release ring will not free a wrongly sized tube cleanly either.
Quick checklist
- ✓ Tube outside diameter matches exactly
- ✓ Thread size and standard match the port
- ✓ Working pressure within 0 - 1.0 MPa (0 - 10 kgf/cm2)
- ✓ Temperature within -20 to +70 °C
Airtac PV Series L-Type Elbow Fitting PV10D FAQ
It is a one-touch union elbow for two Dia 10 mm tubes with no thread (tube-to-tube union), black body (D suffix). Working pressure 0-1.0 MPa (0-10 kgf/cm2), negative pressure down to -750 mmHg (10 Torr), proof pressure 1.5 MPa, and a temperature range of -20 to +70 C. It is for soft nylon or polyurethane tubing, with POM chuck and release ring, aluminium-alloy guide, stainless spring gasket and NBR O-ring.
On the PV series the D suffix changes the body colour to black; the pressure, vacuum and temperature ratings, the sealing internals and the dimensions are identical to the grey PV10. One practical point in its favour: on a union elbow the tube enters from both ends, so a dark body is also easier to keep visually consistent when both incoming and outgoing 10 mm runs pass through a painted or anodised machine section.
