Airtac PV Series L-Type Elbow Fitting PV6
The AirTAC Airtac PV Series L-Type Elbow Fitting PV6 is a genuine union elbow for push-in tube connection, rated 0 - 1.0 MPa (0 - 10 kgf/cm2) with a 1.5 MPa proof pressure.
- TypeUnion elbow
- SeriesPV
- Working pressure0 - 1.0 MPa (0 - 10 kgf/cm2)
- Proof pressure1.5 MPa
- Temperature-20 to +70 °C
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac PV Series L-Type Elbow Fitting PV6

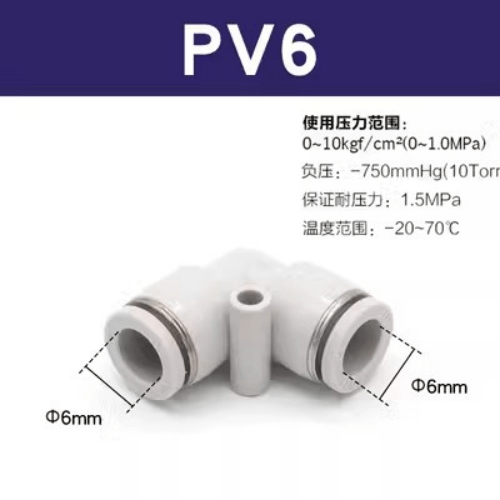

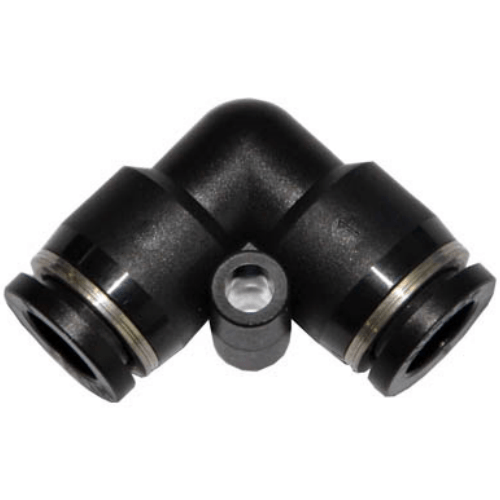

The PV6 is an AirTAC PV union elbow, a tube-to-tube fitting with no threaded port at all: both ends accept Dia 6 mm soft nylon or polyurethane tubing and turn the run through 90 degrees. Push each tube home into its chuck and the grip locks it instantly; pressing the release ring frees that end again. Everything is plastic-on-metal inside - POM chuck, guide and release button, stainless spring gasket, NBR O-ring - and the standard colour is grey, with the D suffix swapping to a black body on this series.
It runs on the resin one-touch profile: 0 to 1.0 MPa working pressure (0 to 10 kgf/cm2), -750 mmHg vacuum, 1.5 MPa proof pressure and -20 to +70 C. Threaded ports arrive with sealant pre-applied, but a union elbow never touches a port, so there is nothing to re-seal - the joint is entirely the two collet grips on the tube.
Airtac PV Series L-Type Elbow Fitting PV6 Technical Specifications
| Model | Airtac PV Series L-Type Elbow Fitting PV6 |
|---|---|
| Type | Union elbow |
| Series | PV |
| Connection | Push-in one-touch |
| Working pressure | 0 - 1.0 MPa (0 - 10 kgf/cm2) |
|---|---|
| Negative pressure | -750 mmHg (10 Torr) |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Applicable tubing | Soft nylon or polyurethane tube |
| Thread standard | PT (Rc tapered) unless the code says otherwise |
POM release button and chuck, aluminium-alloy guide, stainless spring gasket, NBR O-ring; body brass or PBT depending on the part. AirTAC publishes flow as a characteristic curve rather than a single figure, so no L/min value is listed.
Model Code: Airtac PV Series L-Type Elbow Fitting PV6
| PV | Union elbow. |
|---|---|
| 4 / 6 / 8 / 10 / 12 | Tube outside diameter in mm (3.2 mm exists on the mini series). |
| M5 / 01 / 02 / 03 / 04 | Thread: M5x0.8, 1/8", 1/4", 3/8", 1/2" (M3 on the mini series). |
| D | Black. Blank = grey. |
Fitting & Sealing Notes
- check Cut the tube square and clean before pushing it home, or the seal will leak.
- check Push until it stops, then pull back to check the chuck has gripped.
- check To release, press the collet ring fully in and pull the tube out.
- check Threaded parts arrive with sealant on the thread; M5 sizes use a sealing gasket.
- check Match the tube OD exactly - a 6 mm fitting will not hold 1/4" tube.
Where the Airtac PV Series L-Type Elbow Fitting PV6 Is Used
Pick-and-place gripper header
On a 2-finger pneumatic gripper mounted under a robot wrist, supply air arrives along the arm axis; a PV6 turns that 6mm PU line 90 degrees into the gripper inlet without an extra threaded joint to leak or loosen under vibration.
Compact rotary actuator plumbing
Vane and rack-and-pinion rotary actuators often have ports facing straight out of the housing. Where a straight union cannot make the corner inside the actuator cover, a PV6 bends the 6mm nylon feed flush against the body.
Bench-top portioning fixture
In a small lab dosing or sample-handling fixture, 6mm polyurethane runs are re-routed as the fixture evolves. A PV6 makes the direction change tool-free, and both legs release individually so one leg can be swapped without disturbing the other.
Is the Airtac PV Series L-Type Elbow Fitting PV6 the Right Part?
On the PV ladder this Dia 6 size sits between PV4 and PV8. Stepping down to PV4 buys routing flexibility in a tighter radius for light-actuation lines; stepping up to PV8 doubles the effective bore area for shorter, stiffer circuits but resists bending harder in a cluttered frame. If your run needs to land on a threaded port instead of another tube, that is the PL male elbow job - PL6-01 takes Dia 6 tube on one end and a 1/8 PT thread on the other.
Tube OD must match exactly on both legs: the PV6 collet is cut for 6 mm and will not hold 1/4 in (6.35 in-imperial) or 5/16 tubing, and forcing a near-miss size is the classic cause of a weep at the elbow. Stick to soft nylon or polyurethane; semi-rigid or braided tube cannot seat past the grip fingers.
Quick checklist
- ✓ Tube outside diameter matches exactly
- ✓ Thread size and standard match the port
- ✓ Working pressure within 0 - 1.0 MPa (0 - 10 kgf/cm2)
- ✓ Temperature within -20 to +70 °C
Airtac PV Series L-Type Elbow Fitting PV6 FAQ
Working pressure 0 to 1.0 MPa (0 to 10 kgf/cm2), negative pressure down to -750 mmHg, proof pressure 1.5 MPa, operating temperature -20 to +70 C. Both legs take Dia 6 mm tube; the part has no thread. Applicable tubing is soft nylon or polyurethane only.
No. The PV is a pure union: both ends are one-touch tube sockets for 6 mm tubing, so it only joins tube to tube. To land on a threaded port you need a male elbow from the PL series instead, for example PL6-01, which pairs Dia 6 tube with a 1/8 PT thread and arrives with sealant already on the thread.
