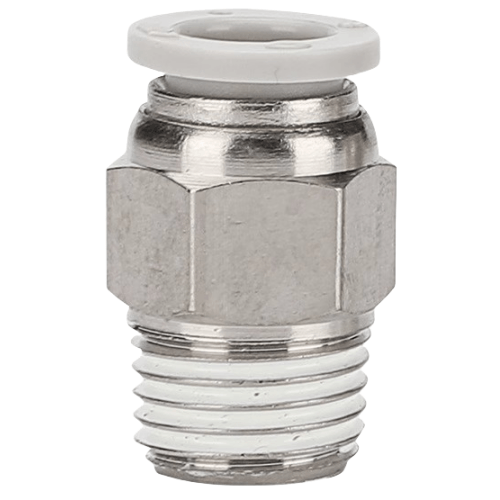

Airtac X-APC Threaded Straight Connector X-APC10M14
$3.63
Regular price
$11.13
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APC10M14
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APC10M14 Threaded Straight Connector Specifications
- Model: X-APC10M14
- Type: Metric thread straight-through pneumatic connector
- Thread standard: M14×1.5 male thread (external)
- Material: Nickel-plated brass (C3771)
- Tube OD compatibility: Ø10mm (flexible pneumatic tubing)
- Max working pressure: 1.5 MPa (15 bar)
- Temperature range: -20℃ to 120℃ (continuous use)
- Seal material: HNBR rubber (hydrogenated nitrile)
- Surface treatment: Electroless nickel plating (8-12μm thickness)
- Vibration resistance: 10-2000Hz, 10G acceleration
- Weight: 32g ±2g
- Dimensions: 46mm(L) × 20mm(W) × 20mm(H)
- Certification: RoHS compliant, REACH SVHC-free
Heavy-duty pneumatic connector featuring anti-vibration thread locking design with dual O-ring seals. The tapered thread profile ensures leak-free connections in high-pressure systems. Nickel plating provides corrosion resistance in humid environments (salt spray tested 96hrs).
Typical Applications:
- Pneumatic cylinder port connections
- Compressed air distribution manifolds
- Robotic arm pneumatic tooling interfaces
- CNC machine coolant line adapters
- Food processing equipment air supply lines
Installation guidance:
Apply 15-20Nm torque during assembly. Use thread sealant only on male threads,
avoiding contact with O-rings. Max 3 reuses recommended for critical systems.
Compatible with:
ISO 6149-1 metric ports, DIN 3852 Form E fittings, and JIS B8381 pneumatic components
| Property | Property Value |
|---|---|
| sku | X-APC10M14 |
