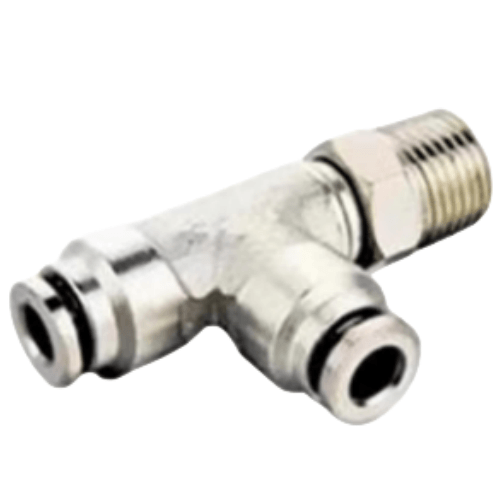

Airtac X-APDT Adapter - Full Brass Threaded Side Tee X-APDT1204
AirTAC X-APDT1204 All-Copper Threaded Side Tee Fitting Specifications
- Model: X-APDT1204
- Type: Brass side tee with full-threaded ports
- Material: H62 lead-free brass (RoHS compliant)
- Thread Standard: Metric M5×0.8 & PT1/8 (BSPP)
- Pressure Rating: 0.05-1.5 MPa (7-217 PSI)
- Temperature Range: -20℃ to 120℃
- Surface Treatment: Electro-nickel plated (8-12μm thickness)
- Weight: 34.5±0.5g
- Dimensions: 24mm(L) × 18mm(W) × 18mm(H)
- Port Configuration: Three-way right-angle flow path
- Seal Compatibility: Works with NBR, FKM, or PTFE seals
- Certification: ISO 8434-1/DIN 2353 compliant
Precision-machined brass tee connector with triple-port threading, designed for high-pressure pneumatic systems requiring multi-directional flow control. Features corrosion-resistant nickel plating and 360° rotatable ports for flexible installation angles. Includes built-in O-ring grooves for leak-proof sealing.
- Modular pneumatic circuit branching in automation lines
- Compressed air distribution in CNC machinery
- Vacuum system junctions for pick-and-place robots
- Hydraulic test bench manifold assemblies
- Medical gas line distribution systems
Installation protocol:
Apply 2-3 wraps of PTFE tape on male threads (Grade D film).
Tighten to 1.2-1.5 N·m torque using flank-contact wrench.
Perform pressure test at 1.8 MPa for 5 mins post-installation.
| Property | Property Value |
|---|---|
| sku | X-APDT1204 |
