Airtac X-APDT Adapter - Full Brass Threaded Side Tee X-APDT4M5

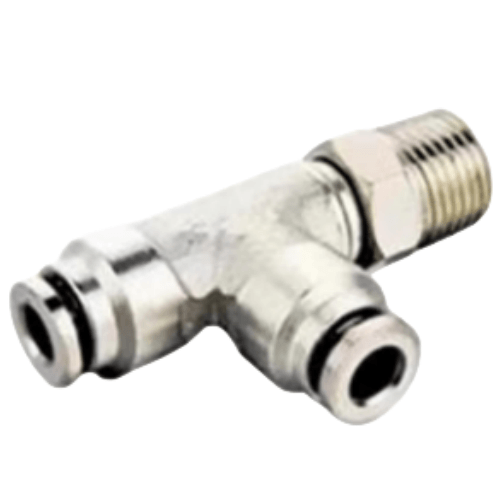

AirTAC X-APDT4M5 Full Copper Threaded Side Tee Fitting Specifications
- Model: X-APDT4M5
- Type: Pneumatic side tee connector (T-shaped flow path)
- Material: C3604 Free-cutting brass (lead-free compliant)
- Thread specification: M5×0.8 metric thread (male-male-female ports)
- Pressure rating: 0.05-1.0 MPa
- Temperature range: -5℃ to 80℃
- Surface treatment: Nickel plating (3-5μm thickness)
- Seal compatibility: Compatible with NBR, FKM, and PTFE seals
- Weight: 14.2g ±0.5g
- Dimensions: 20mm(L) × 15mm(W) × 15mm(H)
- Port angles: 90° branch configuration
- Vibration resistance: ≤20 m/s² (ISO 10816-3)
Precision-machined brass tee connector with triple-port design for compact pneumatic distribution systems. Features anti-corrosion nickel plating and precision ISO metric threads for leak-free connections. The symmetrical flow channels minimize pressure drop (ΔP ≤0.02MPa @ 0.5MPa input).
- Modular pneumatic manifolds in robotic arms
- Vacuum circuit branching for packaging machines
- Medical device gas line distribution (oxygen sensors/analyzers)
- Laboratory automation tool changers
- Solar panel cleaning system air networks
Installation note:
Apply PTFE tape on male threads using clockwise winding direction.
Maximum tightening torque: 1.2N·m. Avoid overtightening - use torque wrench
for critical applications. Compatible with tube OD 4mm systems.
| Property | Property Value |
|---|---|
| sku | X-APDT4M5 |
