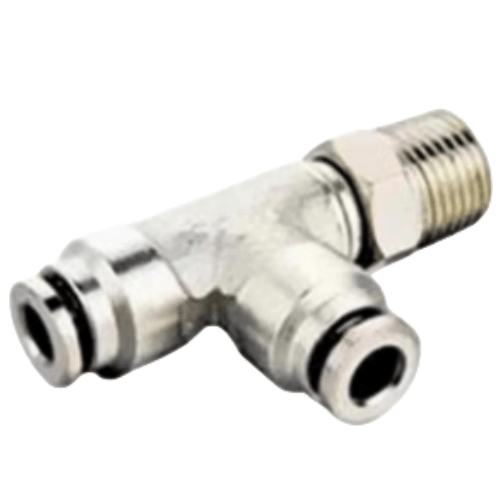

Airtac X-APDT Adapter - Full Brass Threaded Side Tee X-APDT601
AirTAC X-APDT601 Full-Brass Threaded Side Tee Fitting Technical Details
- Model: X-APDT601
- Material: Lead-free brass (RoHS compliant)
- Thread type: Metric (M5×0.8) / Optional NPT/PT/BSPP
- Pressure rating: 0.2-1.0 MPa (29-145 PSI)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Flow coefficient (Cv): 0.15
- Surface treatment: Electroplated nickel (3-5μm thickness)
- Seal compatibility: Works with NBR, FKM, EPDM seals
- Vibration resistance: ≤10Hz @ 1.5mm amplitude
- Weight: 18.5g ±0.3g
- Dimensions: 22mm(L) × 16mm(W) × 14mm(H)
- Port configuration: 3-way T-shape (1 inlet, 2 outlets at 90°)
- Torque limit: 1.5-2.0 N·m during installation
Precision-engineered brass tee connector featuring triple-seal groove design for leak-free pneumatic connections. The compact 90° side port configuration enables space-saving plumbing in complex pneumatic circuits. Nickel plating provides enhanced corrosion resistance against moisture and industrial chemicals.
- Branch line connections in automated assembly line manifolds
- Tooling fixture air circuit distribution
- Medical device pneumatic control systems
- Packaging machine actuator networks
- Semiconductor manufacturing gas delivery
Installation protocol:
Apply 1.5-2 wraps of PTFE tape on male threads (clockwise winding).
Avoid overtightening - stop rotation when firm resistance is felt.
Maximum misalignment tolerance: 3° angular deviation.
Recommended maintenance: Annual thread inspection and seal replacement.
