Airtac X-APDT Adapter - Full Brass Threaded Side Tee X-APDT602
$6.06
Regular price
$13.56
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APDT602
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

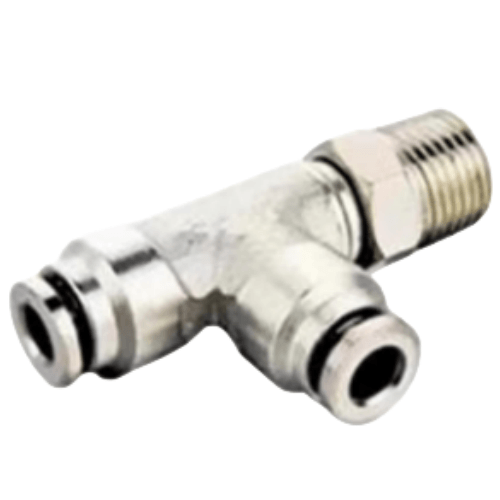

AirTAC X-APDT602 Full-Brass Threaded Side Tee Fitting Technical Details
- Model: X-APDT602
- Type: Side tee with triple ports (1 inlet + 2 outlets)
- Material: Lead-free brass (CuZn39Pb3)
- Thread standard: Metric/PT hybrid design
- Primary port thread: M5×0.8 male
- Side ports thread: M5×0.8 female
- Pressure rating: 0.2–1.0 MPa (29–145 PSI)
- Burst pressure: ≥3.0 MPa
- Temperature range: -20℃ to 120℃ (continuous)
- Seal type: Integrated O-ring (NBR 70±5 Shore A)
- Surface treatment: Electroless nickel plating (8–12μm)
- Flow coefficient (Cv): 0.15
- Weight: 28g ±1g
- Dimensions: 19.8mm(L) × 19.8mm(W) × 25.4mm(H)
- Vibration resistance: 10–55Hz, 1.5mm amplitude
High-density brass tee connector with precision-machined threads and self-sealing design. Features corrosion-resistant nickel plating and triple-port configuration optimized for compact pneumatic manifolds. Includes built-in air gap for thermal expansion compensation.
Ideal Applications:
- Modular pneumatic circuit branching in SMC manifolds
- Miniature pneumatic gripper installations
- Medical device gas line distribution
- Automated test equipment air routing
- 3D printer pneumatic accessory connections
Installation protocol:
Apply 1.5–2 wraps of PTFE tape on male threads (Do NOT over-tighten -
recommended torque 0.8–1.2 N·m). Align side ports perpendicular to
main flow path for optimal performance.
Compatibility note:
Use only with filtered dry air (ISO 8573-1:2010 Class 2.4.2).
Not suitable for aggressive gases or liquid media.
| Property | Property Value |
|---|---|
| sku | X-APDT602 |
