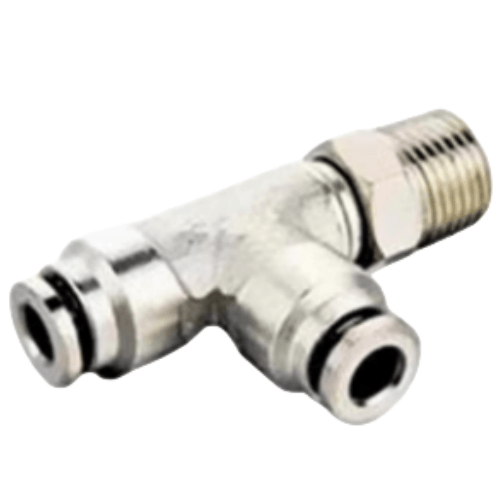

Airtac X-APDT Adapter - Full Brass Threaded Side Tee X-APDT801
$6.53
Regular price
$14.03
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APDT801
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APDT801 Full Brass Threaded Side Tee Fitting Specifications
- Model: X-APDT801
- Material: Lead-free brass (RoHS compliant)
- Thread standard: BSPP (Parallel)
- Port sizes: 1/8" (M5x0.8 optional)
- Max working pressure: 1.5 MPa (217 psi)
- Burst pressure: ≥4.5 MPa
- Temperature range: -20℃ to 120℃
- Surface treatment: Electroless nickel plating (5-8μm)
- Seal material: NBR O-ring (HNBR available on request)
- Flow coefficient (Cv): 0.15
- Weight: 48g ±2g
- Dimensions: 28mm (L) × 19mm (W) × 22mm (H)
- Certifications: ISO 8434-1, DIN 3861
High-density brass tee connector with precision-machined triple sealing surfaces, designed for stable flow distribution in pneumatic systems. Features anti-vibration grooves and oxidation-resistant coating for industrial environments. Compatible with air, water, and inert gases.
Typical Applications:
- Branch line connections in automated assembly lines
- Modular pneumatic circuit distribution blocks
- Compressed air tool manifolds
- Hydraulic test bench plumbing
- Semiconductor equipment gas delivery systems
Installation note:
Apply 1.5-2 wraps of PTFE tape on male threads (do not over-tighten).
For vertical installations, position flow arrow upward.
Torque limit: 12-15 N·m with standard hand tools.
Fluid Compatibility:
- Compressed air (dew point -20℃ or lower)
- Hydraulic oils (ISO VG32-68)
- Inert gases (N₂, CO₂)
- Non-flammable liquid media
| Property | Property Value |
|---|---|
| sku | X-APDT801 |
