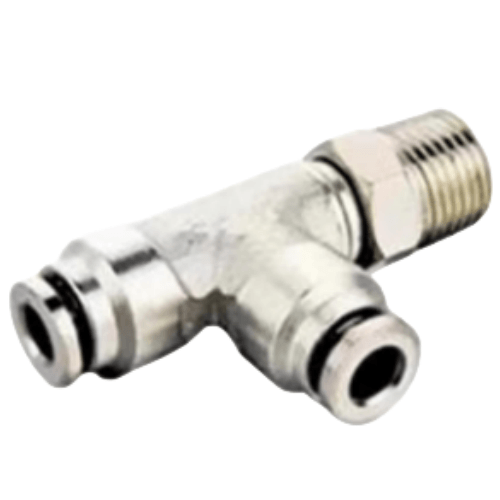

Airtac X-APDT Adapter - Full Brass Threaded Side Tee X-APDT802
AirTAC X-APDT802 Full Copper Threaded Side Tee Fitting Specifications
- Model: X-APDT802
- Material: Lead-free brass (CuZn39Pb3)
- Thread standard: PT1/8 (BSPP) female threads on all ports
- Alternative thread options: NPT1/8 available on request
- Max working pressure: 1.5 MPa (217 psi)
- Burst pressure: ≥6 MPa (870 psi)
- Temperature range: -20℃ to 120℃
- Surface treatment: Electroplated nickel (3-5μm thickness)
- Flow coefficient (Cv): 0.15
- Leakage rate: <5×10⁻⁸ Pa·m³/s (helium tested)
- Weight: 28±2g
- Dimensions: 25mm(L) × 18mm(W) × 18mm(H)
- Port-to-port center distance: 8mm (vertical), 12mm (horizontal)
- Compliance: RoHS 2011/65/EU, REACH Annex XVII
Precision-machined triple-port pneumatic connector featuring 360° rotatable side port for flexible piping layouts. The seamless internal bore (2.5mm diameter) minimizes pressure drop, with chamfered edges preventing O-ring damage during assembly. Nickel plating enhances corrosion resistance in humid environments.
- Branch line connections in compact pneumatic manifolds
- Vacuum system instrumentation clusters
- Medical gas distribution modules
- Robotic end-effector air supply networks
- Semiconductor fab equipment plumbing
Installation guidelines:
Apply PTFE tape on male threads using clockwise winding direction.
Tightening torque should not exceed 1.2N·m. For vertical mounting,
orient side port horizontally to prevent particle accumulation.
| Property | Property Value |
|---|---|
| sku | X-APDT802 |
