Airtac X-APHW Connector - Female Thread Swivel Tee X-APHW1001
$6.73
Regular price
$14.23
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APHW1001
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

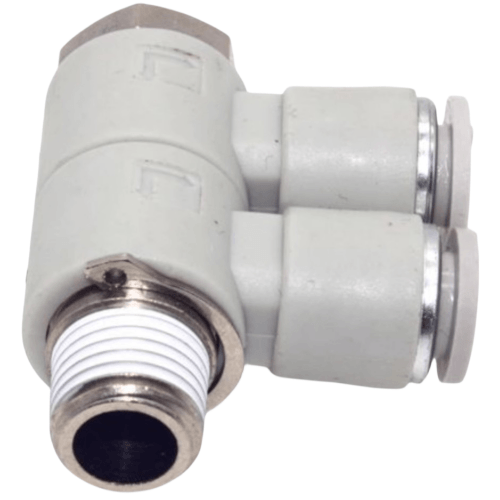

AirTAC X-APHW F-Type Threaded Swivel Tee Connector X-APHW1001
- Model: X-APHW1001
- Type: F-Type Swivel Tee (360° Rotatable)
- Thread Standard: Metric/UNF/NPT Optional (Default M5×0.8)
- Material: Nickel-plated Brass Body + PPS Resin
- Pressure Range: 0.05-1.0 MPa
- Temperature Range: -5℃ to 80℃ (Dry Air)
- Seal Material: NBR (Nitrile Rubber)
- Port Sizes: 1/8" (Standard), 3/16" (Customizable)
- Swivel Angle: Full 360° Rotation with ±2° Tolerance
- Weight: 80g ±5%
- Dimensions: 45mm(L) × 25mm(W) × 25mm(H)
- Surface Hardness: HV300-400
- Leakage Rate: ≤3 bubbles/min @ 0.5MPa (ISO 6952)
High-density swivel tee connector featuring zero-clearance rotation mechanism for multi-directional piping layouts. Corrosion-resistant nickel plating with anti-vibration PPS collar ensures 50,000+ cycles durability. Compatible with ISO 1179-2 and JIS B8381 standards.
Typical Applications:
- Robotic arm pneumatic circuit branching
- Modular pneumatic workstation setups
- High-cycle packaging machine air distribution
- CNC machine tool cooling air lines
- Medical equipment gas flow division
- Food-grade compressed air systems (FDA-compliant option available)
Installation Protocol:
Apply 1.5-2 wraps of PTFE tape clockwise. Tighten with 0.8-1.2N·m torque.
Avoid overtightening beyond 120% of specified torque to prevent resin collar deformation.
Test rotation smoothness before pressurization.
Compatibility Note:
Not recommended for steam/water applications. For vacuum systems,
use with APVH series vacuum-rated seals. Maximum angular vibration
tolerance: ±15° at 50Hz frequency.
| Property | Property Value |
|---|---|
| sku | X-APHW1001 |
