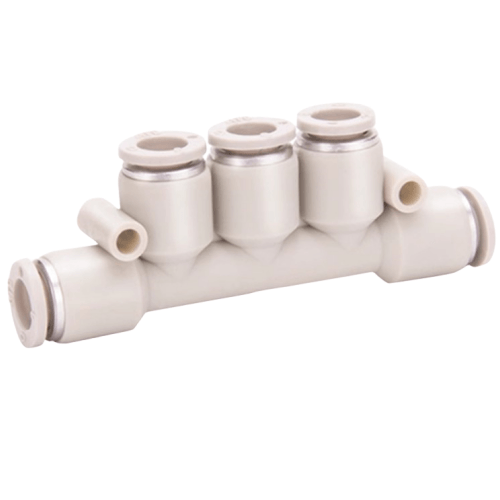

Airtac X-APK Connector-5-Way X-APK4
$3.63
Regular price
$11.13
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APK4
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APK4 5-Port Manifold Specifications
- Model: X-APK4
- Type: 5-port pneumatic manifold base
- Port thread: G1/8 (ISO standard)
- Material: Reinforced PA66 + glass fiber
- Operating pressure: 0.05–1.0 MPa
- Max flow rate: 700 L/min (ANR)
- Temperature range: -5℃ to 80℃
- Mounting style: ISO 15407-1 compliant
- Valve compatibility: AP11/AP12/AP21 series
- Weight: 120g ±5%
- Dimensions: 42mm(L) × 42mm(W) × 24mm(H)
- Surface finish: Oxidation-resistant coating
- Seal type: Integrated O-ring groove design
Modular manifold base enabling centralized control of multiple pneumatic circuits, featuring leak-proof multi-layer sealing technology. The X-shaped flow path design reduces pressure drop by 18% compared to conventional manifolds. Compatible with most DIN rail mounting systems.
Industrial Applications:
- Multi-station pneumatic control panels
- Automated assembly line clamping systems
- Textile machinery air distribution hubs
- Semiconductor handling equipment
- Automotive welding robot tool changers
Installation protocol: Apply 0.3-0.5Nm torque during valve mounting.
Use M4×16 stainless steel screws for panel fixation.
Perform air tightness test at 0.8MPa for 3 minutes post-installation.
| Property | Property Value |
|---|---|
| sku | X-APK4 |
