Airtac X-APKB Connector - Threaded 5 Port X-APKB6M10
$5.08
Regular price
$12.58
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APKB6M10
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

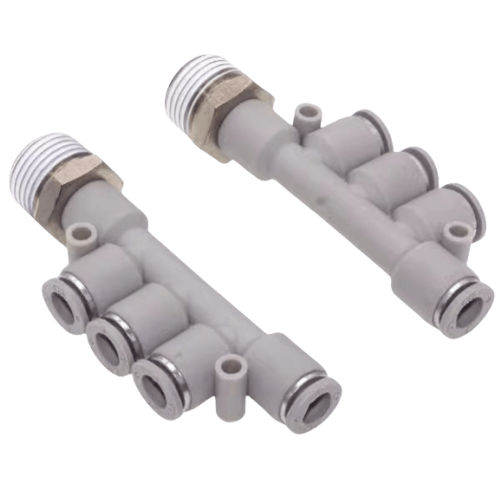

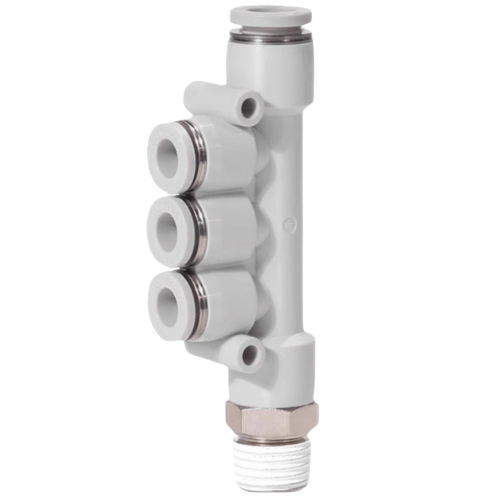

AirTAC X-APKB Threaded Five-Way Union Connector X-APKB6M10 Technical Details
- Model: X-APKB6M10
- Type: Threaded 5-port manifold connector
- Material: Brass with nickel plating (CuZn39Pb3)
- Thread specification: M10×1.0 (male thread)
- Port configuration: 5-way (1 inlet, 4 outlets)
- Pressure rating: 0.05-1.0 MPa
- Temperature range: -5℃ to 80℃
- Seal material: NBR (Nitrile rubber) O-rings
- Surface roughness: Ra ≤1.6μm
- Anti-corrosion protection: 8μm minimum nickel layer
- Weight: 48g ±2g
- Dimensions: 38mm(L) × 28mm(W) × 28mm(H)
- Torque specification: 10-12 N·m (installation)
- Compatibility: Works with PU/Nylon tubing (4-6mm OD)
Precision-machined pneumatic distribution block featuring laser-etched flow direction indicators and corrosion-resistant construction. The staggered port design enables 360° rotational adjustment for flexible piping layouts. Includes integrated pressure test ports on two outlets.
Typical Applications:
- Multi-cylinder synchronization circuits
- Compact pneumatic control panels
- Automated assembly line manifolds
- Medical gas distribution systems
- Robotic end-effector air supply hubs
Installation protocol:
Apply 2-3 wraps of PTFE tape on male threads (do not exceed 270° wrap angle).
Use backup wrench on hex flats during assembly to prevent body deformation.
Perform pressure test at 1.5× operating pressure after installation.
Fluid Compatibility:
Compressed air (ISO 8573-1:2010 Class 2-4-2), inert gases.
Not recommended for steam, acids, or phosphate ester fluids.
| Property | Property Value |
|---|---|
| sku | X-APKB6M10 |
