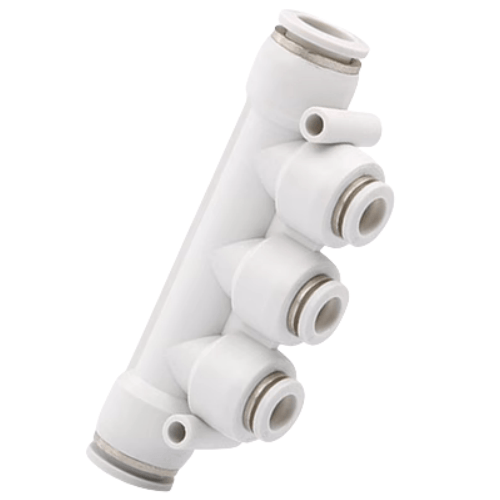

Airtac X-APKG Adapter - Reducing 5-Way Fitting X-APKG108
$4.87
Regular price
$12.37
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APKG108
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APKG108 Reducing Tee Connector Specifications
- Model: X-APKG108
- Type: Reducing 5-way connector (1 input, 4 outputs)
- Material: Nickel-plated brass (base), PBT engineering plastic (body)
- Thread Standards:
- Main port: G1/8 (ISO228)
- Reduced ports: 4×M5×0.8 (metric fine)
- Pressure rating: 0.05–1.0 MPa
- Temperature range: -20℃ to 80℃ (with NBR seals)
- Seal material: NBR (standard), optional FKM/Viton®
- Flow capacity: 200 NL/min @ 0.5 MPa
- Weight: 85g ±2g
- Dimensions: 52mm(L) × 32mm(W) × 32mm(H)
- Surface roughness: Ra ≤3.2μm (flow channels)
- Vibration resistance: 10–55Hz @ 1.5mm amplitude
Multi-port flow distributor with integrated pressure drop compensation, designed for compact pneumatic systems requiring branch circuit miniaturization. Features anti-vibration thread locking design and corrosion-resistant plating. Compatible with ISO 15407-1 standard actuators.
Typical Applications:
- Multi-axis pneumatic gripper clusters
- Compact valve terminal manifolds
- Medical device pneumatic distribution
- Robotic end-effector air supply networks
- Semiconductor handling equipment
Installation protocol:
Apply 2–3Nm torque during assembly. Use Loctite® 542 thread sealant for
M5 ports. Maintain minimum 15mm clearance between adjacent connectors
for tool access. Pressure test at 1.25×max operating pressure for leak check.
Recommended Pairings:
- AirTAC SDA series compact cylinders
- X-CHP04 modular manifold bases
- 4V110-06 mini solenoid valves
| Property | Property Value |
|---|---|
| sku | X-APKG108 |
