Airtac X-APKS Swivel Adjustable 5-Way Adapter X-APKS10
$14.07
Regular price
$21.57
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APKS10
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

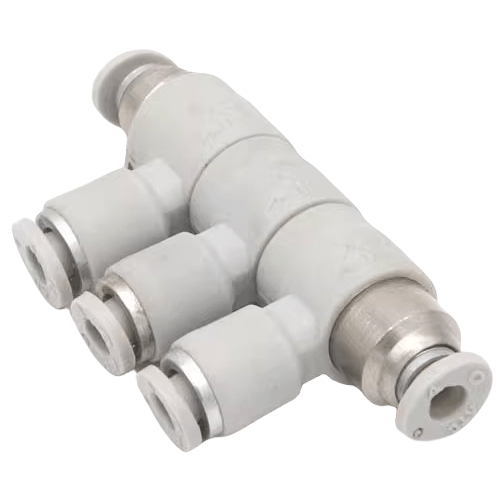

AirTAC X-APKS10 Swivel Adjustable 5-Way Joint Specifications
- Model: X-APKS10
- Type: 360° Rotatable 5-port manifold
- Port configuration: 1 inlet + 4 outlets (M5 threaded)
- Thread standard: Metric (M5×0.8)
- Max working pressure: 1.0 MPa
- Pressure range: 0.15–1.0 MPa
- Temperature range: -5℃ to 80℃
- Rotation torque: ≤0.3 N·m
- Body material: Nickel-plated brass
- Seal material: NBR (Nitrile rubber)
- Weight: 185±5g
- Dimensions: 50mm(L) × 50mm(W) × 34mm(H)
- Flow characteristics: CV=0.14
- Leakage rate: ≤20 cm³/min @ 0.5 MPa
- Vibration resistance: 10–55Hz @ 1.5mm amplitude
Multi-directional pneumatic distribution block featuring tool-free 360° rotation adjustment for flexible piping layouts. Precision-machined with dual O-ring seals prevents air leakage during rotation. Anti-vibration design maintains stable connections in dynamic systems.
Typical Applications:
- Multi-axis robotic arm pneumatic routing
- Modular production line tooling stations
- Packaging machine clamp positioning systems
- Automated test equipment with rotating fixtures
- Medical device pneumatic control clusters
Installation guidelines:
Apply thread sealant (PTFE tape) on male threads before assembly.
Maximum recommended rotation speed: 15 RPM.
Avoid overtightening - use torque wrench (max 1.2 N·m).
| Property | Property Value |
|---|---|
| sku | X-APKS10 |
