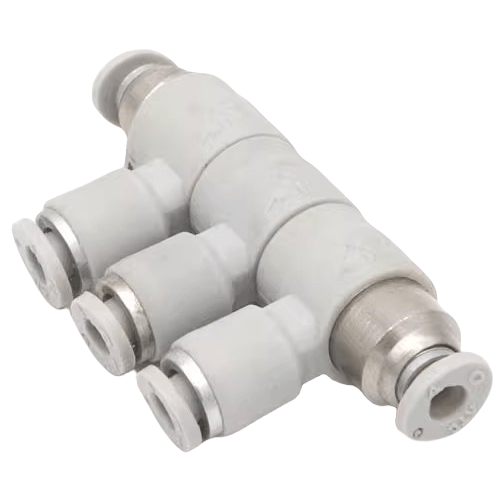

Airtac X-APKS Swivel Adjustable 5-Way Adapter X-APKS12
$15.57
Regular price
$23.07
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APKS12
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APKS12 Swivel Fitting 5-Way Connector Specifications
- Model: X-APKS12
- Type: 360° rotatable 5-way union tee
- Body material: Stainless steel + aluminum alloy
- Thread standard: G1/8 (BSPP)
- Max rotation angle: Continuous 360° adjustment
- Operating pressure: 0.05–0.8 MPa
- Temperature range: -20℃ to 80℃ (NBR seals)
- Weight: ~180g
- Dimensions: 65mm(L) × 32mm(W) × 32mm(H)
- Seal material: NBR (standard), optional FKM
- Surface treatment: Anodized aluminum body
- Torque resistance: ≤1.5 N·m
- Flow coefficient (Cv): 0.3
Multi-directional pneumatic distribution block featuring infinite position locking with 5 independent ports (1 input/4 outputs). Precision-machined with anti-vibration grooves and color-coded O-rings (blue for input). Maintains leak-free performance under continuous rotation cycles.
Typical Applications:
- Multi-axis robotic arm pneumatic routing
- Automated assembly line tool changers
- Rotary index table air supply systems
- Packaging machine diverting mechanisms
- Semiconductor wafer handling equipment
Installation note:
Apply 1-2 drops of pneumatic oil (ISO VG32) before initial rotation.
Tighten mounting bracket to 0.8-1.2 N·m torque. Avoid simultaneous
rotation of multiple ports during operation.
Maintenance:
- Inspect seal integrity every 50,000 cycles
- Relubricate quarterly in high-cycle applications
- Use only neutral detergents for cleaning
- Replace O-rings if rotational torque exceeds 2 N·m
| Property | Property Value |
|---|---|
| sku | X-APKS12 |
