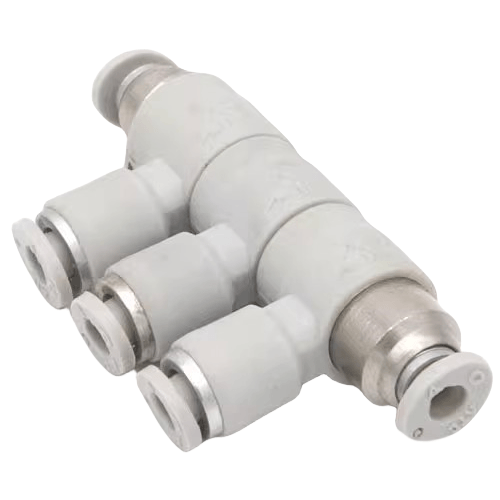

Airtac X-APKS Swivel Adjustable 5-Way Adapter X-APKS6
AirTAC X-APKS6 Swivel Adjustable 5-Way Fitting Technical Details
- Model: X-APKS6
- Type: 360° Rotatable 5-port manifold base with adjustable flow
- Body material: Nickel-plated brass (corrosion resistant)
- Seal material: NBR (Nitrile rubber)
- Operating pressure: 0.05–1.0 MPa
- Temperature range: -20℃ to 80℃ (with NBR seals)
- Rotation torque: ≤1.5 N·m
- Port configuration: 5 M5 female threads (1 inlet, 4 outlets)
- Flow adjustment range: 0.5–12 L/min (air)
- Weight: 85±3g
- Dimensions: 40mm(L) × 25mm(W) × 25mm(H)
- Surface roughness: Ra0.8μm (sealing surfaces)
- Leakage rate: ≤3 bubbles/min (ISO 6952 standard)
- Vibration resistance: 10–55Hz @ 1.5mm amplitude
Multi-axis adjustable pneumatic manifold enabling dynamic tubing layouts in confined spaces. Features precision flow control knobs for individual outlet regulation and tool-free 360° body rotation for optimal hose routing. The chrome-plated brass construction ensures compatibility with oil-lubricated air systems.
- Multi-axis robotic end effectors requiring flexible air supply
- Modular pneumatic test bench configurations
- Compact medical device pneumatic circuits
- Automated packaging line tooling stations
- Laboratory multi-channel fluid control systems
Installation protocol:
Apply 2–3 drops of pneumatic oil to rotating collar before initial use.
Tighten base mounting screws diagonally (recommended torque: 0.8 N·m).
Allow 15° clearance for full rotation adjustment.
| Property | Property Value |
|---|---|
| sku | X-APKS6 |
