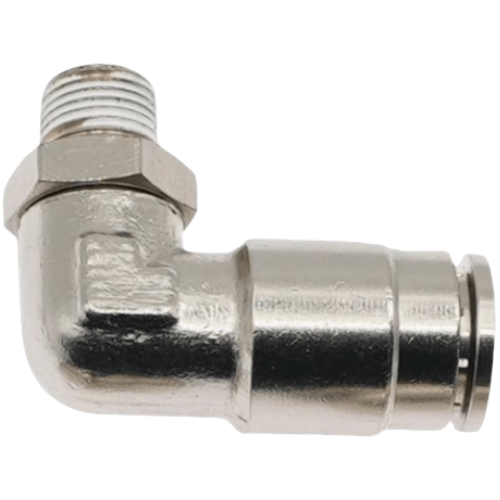

Airtac X-APLT Connector - All Brass L-Type Threaded Elbow X-APLT402
$4.82
Regular price
$12.32
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APLT402
Tags:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APLT402 Full Brass L-shaped Threaded Elbow Specifications
- Model: X-APLT402
- Type: Pneumatic L-type threaded connector
- Material: Lead-free brass (CuZn39Pb3)
- Thread Standard: Metric M5×0.8 (female threads both ends)
- Pressure Rating: 0.05-1.0 MPa (7-145 psi)
- Temperature Range: -20℃ to 120℃ (-4°F to 248°F)
- Seal Type: Embedded O-ring (NBR material)
- Surface Treatment: Electroplated nickel (5-8μm thickness)
- Weight: 18.5±0.5g
- Dimensions:
- Total Length: 24mm
- Center-to-Center: 16mm (between thread axes)
- Hex Size: 8mm AF
- Thread Depth: 6.5mm per port
Precision-machined 90° pneumatic connector with corrosion-resistant nickel plating, designed for compact piping layouts. Features dual O-ring seals for leak-free connections in vibration-prone environments. Compatible with ISO 15407-1 standards.
Typical Applications:
- Pneumatic valve manifold block interconnections
- Robotic arm tooling air supply lines
- Compressed air instrumentation systems
- Medical device pneumatic circuits
- CNC machine tool air curtain connections
Installation guidelines:
Apply 1.5-2 wraps of PTFE tape on male threads.
Tighten to 1.2-1.5 N·m torque using 8mm wrench.
Avoid overtightening to prevent thread deformation.
| Property | Property Value |
|---|---|
| sku | X-APLT402 |
