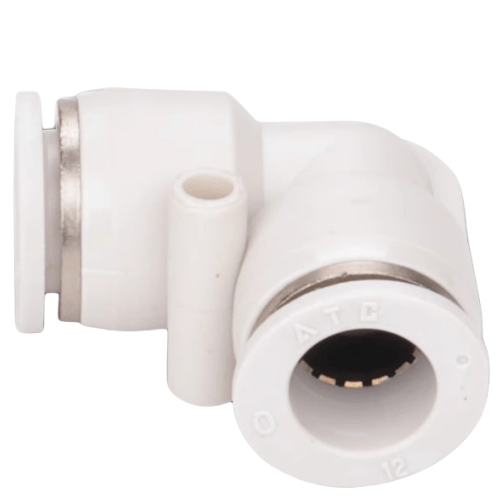

Airtac X-APV Elbow 2-Way Fitting X-APV4
AirTAC X-APV4-L Elbow Fitting Technical Details
- Model: X-APV4-L (L-Type Two-Way Elbow)
- Type: 90° elbow push-in fitting
- Material: Brass with nickel plating
- Thread standard: BSPP (G1/8) / NPT optional
- Port size: 4mm (OD) tubing
- Pressure rating: 0.05-1.0 MPa
- Temperature range: -5℃ to 80℃
- Seal material: NBR (nitrile) O-ring
- Weight: 85g ±2g
- Dimensions: 35mm(L) × 22mm(W) × 22mm(H)
- Surface roughness: Ra ≤3.2μm
- Vibration resistance: 10-55Hz, 1.5mm amplitude
- Corrosion resistance: 96hrs salt spray test passed
Precision-engineered L-shaped pneumatic connector featuring a 4mm push-to-connect design with positive locking mechanism. The chrome-plated brass body ensures durability in humid environments, while the integrated strain relief collar prevents tubing kinking. Compatible with polyurethane, nylon, and polyethylene tubing (4mm OD ±0.2mm).
- Space-constrained pneumatic circuit layouts
- Robotic arm end-effector air supply routing
- CNC machine tool coolant line bypass connections
- Packaging machine sensor air curtain setups
- Laboratory automation gas sampling systems
Installation tip:
Apply 2-3 wraps of PTFE tape on male threads (BSPP versions only).
Tighten to 12-15N·m torque using backup wrench on hex flats.
Maximum 120° reorientation allowed post-installation.
| Property | Property Value |
|---|---|
| sku | X-APV4 |
