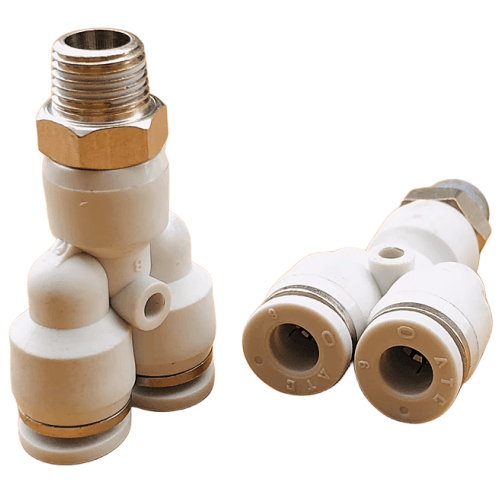

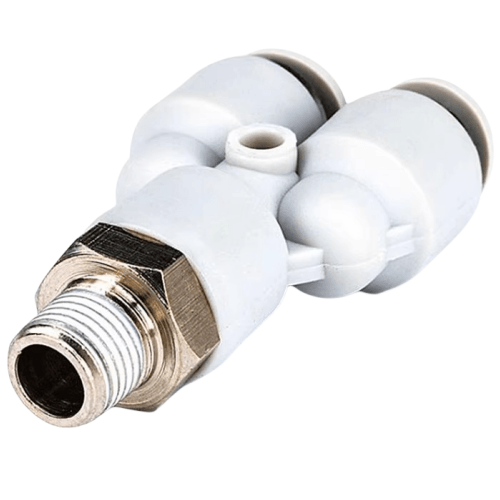

Airtac X-APX Adapter - Y-Type Threaded Tee X-APX6M10
$3.53
Regular price
$11.03
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APX6M10
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APX6M10 Y-Type Threaded Tee Fitting Specifications
- Model: X-APX6M10
- Type: Y-shaped pneumatic tee connector
- Thread standard: Metric fine thread (M10×1.0)
- Material: Nickel-plated brass (C3604)
- Pressure range: 0-1.0 MPa (145 psi max)
- Temperature range: -5℃ to 80℃
- Surface hardness: ≥HV200
- Leakage rate: ≤0.1 NL/min @ 0.5 MPa
- Weight: 28±2g
- Dimensions: 30mm(L) × 25mm(W) × 25mm(H)
- Port configuration: 3-way equal diameter (M10 female threads)
- Torque tolerance: 12-15 N·m installation torque
- Compliance: RoHS 2.0 compliant
Precision-engineered Y-branch pneumatic connector featuring 120° angled flow paths for compact system layouts. The electroless nickel plating provides corrosion resistance in humid environments. Designed with a reinforced base structure to withstand vibration frequencies up to 50Hz.
Typical Applications:
- Modular pneumatic manifolds in assembly robots
- Air distribution in CNC machine tooling stations
- Compressed air branching for packaging conveyors
- Laboratory pneumatic circuit prototyping
- Mobile hydraulic/pneumatic hybrid systems
Installation protocol:
Apply 2-3 wraps of PTFE tape on male threads (do not over-tighten).
Align branch ports perpendicular to main flow axis.
Maximum recommended cyclic load: 500,000 connections.
| Property | Property Value |
|---|---|
| sku | X-APX6M10 |
