Airtac X-APX Adapter - Y-Type Threaded Tee X-APX8M12

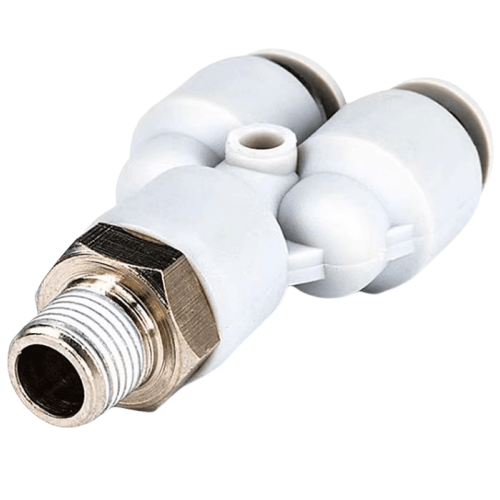

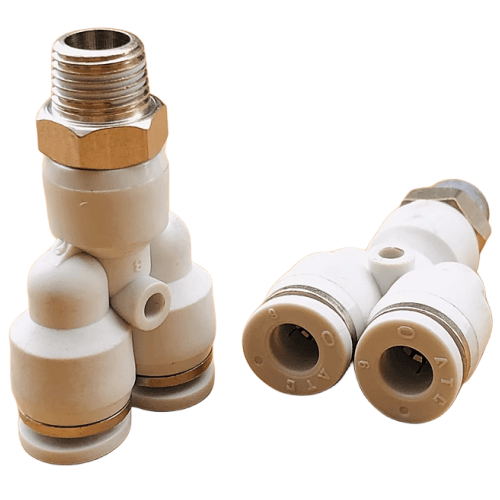

AirTAC X-APX8M12 Y-Type Threaded Tee Fitting Technical Details
- Model: X-APX8M12
- Type: Y-shaped 3-way threaded tee
- Material: Nickel-plated brass body
- Thread specification: M12×1.25 metric fine thread
- Operating pressure: 0.1-1.0 MPa (14.5-145 PSI)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Seal material: NBR (Nitrile) O-rings
- Port configuration: 1 inlet / 2 outlets (equal distribution)
- Flow capacity: 450 NL/min (at 0.5 MPa)
- Surface treatment: Electroless nickel plating (8-12μm thickness)
- Weight: 38g ±2g
- Dimensions: 24mm(L) × 24mm(W) × 30mm(H)
- Compliance: RoHS compliant, ISO 6150-B standard
Precision-engineered pneumatic distribution component featuring corrosion-resistant construction and leak-proof design. The 120° Y-configuration minimizes flow resistance while maintaining compact dimensions. Compatible with most pneumatic tubing systems when used with appropriate adapters.
- Air supply branching in robotic end effectors
- Modular pneumatic circuit prototyping
- Compressed air distribution in CNC machinery
- Vacuum system manifold connections
- Medical device pneumatic control systems
Installation guidance:
Apply 3-5Nm torque during assembly. Use thread sealant (PTFE tape or liquid) on male threads only.
Avoid overtightening to prevent port deformation. Recommended maintenance interval: 2 years or 10,000 cycles.
| Property | Property Value |
|---|---|
| sku | X-APX8M12 |
